Quick Details
-
Installation:
-
Bolt, Adhesive, Welding
-
Size:
-
Custom
-
advantage:
-
ceramics will stay in place until completely worn
-
Peel Strength between rubber & steel:
-
9.8 kN/m
-
Peel Strength between ceramic & rubber:
-
9.8 kN/m
-
Ceramic Hardness:
-
9 Mohs
-
Ceramic Tiles:
-
Alumina Ceramic Tiles
-
Product Name:
-
ceramic wear plate mat lining abrasion wear resistant ceramic liner
-
Ceramic shapes:
-
Hexagonal, cylindrical, diamond, spherical, etc..
-
Certification:
-
ISO, SGS, Safety Certificate of Approval for Mining Products
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DEBON
-
Installation:
-
Bolt, Adhesive, Welding
-
Size:
-
Custom
-
advantage:
-
ceramics will stay in place until completely worn
-
Peel Strength between rubber & steel:
-
9.8 kN/m
-
Peel Strength between ceramic & rubber:
-
9.8 kN/m
-
Ceramic Hardness:
-
9 Mohs
-
Ceramic Tiles:
-
Alumina Ceramic Tiles
-
Product Name:
-
ceramic wear plate mat lining abrasion wear resistant ceramic liner
-
Ceramic shapes:
-
Hexagonal, cylindrical, diamond, spherical, etc..
-
Certification:
-
ISO, SGS, Safety Certificate of Approval for Mining Products

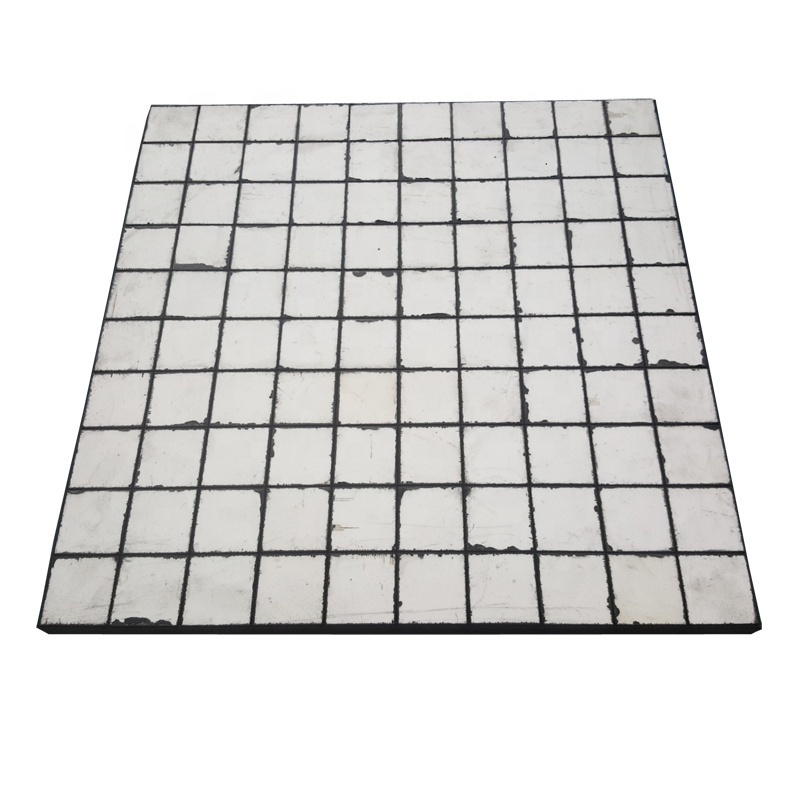

Chute wear rubber ceramic wear plate mat lining abrasion wear resistant ceramic liner
Chute wear rubber ceramic wear plate mat lining abrasion wear resistant ceramic liner
Chute wear rubber ceramic wear plate mat lining abrasion wear resistant ceramic liner
We manufacture a complete range of ceramic lined rubber chute for use in slurry through to oversize material handling applications.
Our wear liners comprise of advanced ceramic tiles, bonded in a high tensile strength polymer matrix to a studded steel backing plate
Configuration:
High Alumina Ceramic:
92% & 95% Ceramics available.
Available with square, rectangular, cylindrical or hexagonal,etc.
Cushion Rubber/Polyurethane matrix:
Superior rubber/urethane compound, impact-absorbing
Connection:
Steel plate and studs / cn bonding layer, both available to suit different types of applications
The thickness of complete liner, ceramic and rubber/PU are determined on the basis of application, such as handled material lump size, height of fall, impact angle, etc.
Chute wear rubber ceramic wear plate mat lining abrasion wear resistant ceramic liner Features:
1. Excellent bonding: The ceramics, urethane and steel plate are permanently bonded through our special molding and hot vulcanization process.
2. Ceramic wear liner with wear strips, bolt holes, plugs are all available
Chute wear rubber ceramic wear plate mat lining abrasion wear resistant ceramic liner technical data
| Item | Description | Unit | Result |
| Alumina Ceramics | |||
| 1 | Alumina (Al2O3) | % | |
| 2 | Density | g/cm3 | |
| 3 | Water Absorption | % | |
| 4 | Hardness | Mohs | |
| Rubber | |||
| 1 | Material | NR, BR | |
| 2 | Gravity | g/cm3 | 1.15 |
| 3 | Tensile Strength | MPa | 16 min |
| 4 | Elongation | % | 400 min |
| 5 | Abrasion Loss | mm3 | ≤80 |
| 6 | Aging Coefficient ( 70ºCx48h) | ||
| Peeling Strength | |||
| 1 | Peeling strength between rubber & ceramic | KN/m | ≥12 |
| 2 | Peeling strength between rubber & steel | KN/m | ≥12 |
