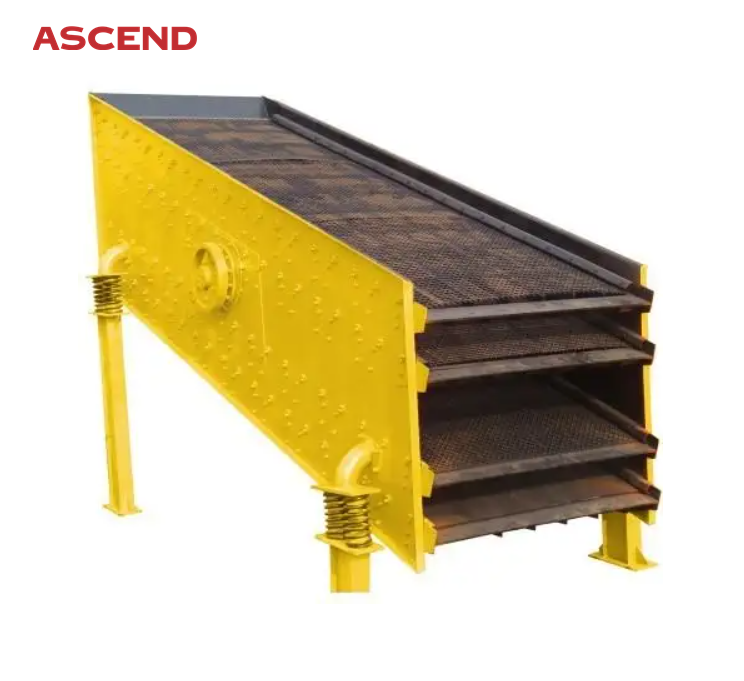

YK1848 YK1860 Single Double Decks Large Mobile Vibrating Sand Screen Machine For Aggregate Limestone Separator

YK1848 YK1860 Single Double Decks Large Mobile Vibrating Sand Screen Machine For Aggregate Limestone Separator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5999

≥2 Pieces

US $3999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ASCEND

Voltage:: depend on different models

Dimension(L*W*H):: depend on different models

Weight:: 4900 KG

Product name:: Vibrating Screen

Keyword:: Sand Sieving Machine

Motor:: Vertical Vibrating Motor

Usage:: Separation Screening

After-sale service:: Problems Within 48 Hours

Quick Details

Type:: Circular

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: ASCEND

Voltage:: depend on different models

Dimension(L*W*H):: depend on different models

Weight:: 4900 KG

Product name:: Vibrating Screen

Keyword:: Sand Sieving Machine

Motor:: Vertical Vibrating Motor

Usage:: Separation Screening

After-sale service:: Problems Within 48 Hours

Double Decks 2YK1237 Vibrating Screen three secks 3YK1860 mining screen for Iron Copper Mining Machinery

Product Description

Circular Vibrating Screen has multiple layers, it is a new high efficient screen. It has characteristics reliable structure, low consumption, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, etc. Our Vibrating Screen is widely used for screening in mines, building material, transportation, energy sources, chemical industry, etc.

Advantages of Vibrating Screen

1.Stable structure and strong exciting force.

2.Less electricity power consumption.

3.Handy maintenance and durability.
4.Screen easy to disassemble and replace.
5.Materials blocked in meshes can be automatically out.
6.Reasonable mechanical structure, low noise and high screening efficiency.

Detailed Images

Spare Parts

Working Principle

Vibrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.

Main Technical Parameters

Model	Screen layer	Screen area (m2)	Mesh size (mm)	Feeding size (mm)	Capacity (m3/h)	Vibrating frequency (r/min)	Double amplitude (mm)	Power (kw)	Dimension (L×W×H)	Weight (without motor) (t)	Screen slope (°)	Screen specification (mm)
YK1237	1	4.4	2-50	200	25-160	970	8	11	3857×2386×2419	4.8	15-20	1200×3700
2YK1237	2	4.4	2-50	200	25-160	970	8	11	3857×2386×2419	4.9	15-20	1200×3700
3YK1237	3	4.4	2-50	400	30-180	970	8	11	4057×2386×2920	5.2	15-20	1200×3700
4YK1237	4	4.4	2-50	400	30-180	970	8	11	4257×2386×2920	5.3	15-20	1200×3700
YK1548	1	7.2	2-50	200	45-250	970	8	15	4904×2713×2854	5.9	15-20	1500×4800
2YK1548	2	7.2	2-50	200	45-250	970	8	15	4904×2713×2854	6.3	15-20	1500×4800
3YK1548	3	7.2	2-50	400	45-280	9708	8	15	5104×2713×3106	6.5	15-20	1500×4800
4YK1548	4	7.2	2-50	400	45-280	970	8	18.5	5304×2713×3356	6.6	15-20	1500×4800
YK1848	1	8.6	2-50	200	55-330	970	8	15	4904×3041×2854	6.2	15-20	1800×4800
2YK1848	2	8.6	2-50	200	55-330	970	8	15	4904×3041×2854	6.9	15-20	1800×4800
3YK1848	3	8.6	2-50	400	55-350	970	8	22	5104×3041×3106	7.2	15-20	1800×4800
4YK1848	4	8.6	2-50	400	55-350	970	8	22	5304×3041×3356	7.5	15-20	1800×4800
YK1860	1	10.8	2-50	200	65-350	970	8	22	6166×3041×2854	6.4	15-20	1800×6000
2YK1860	2	10.8	2-50	200	65-350	970	8	22	6166×3041×2854	7.1	15-20	1800×6000
3YK1860	3	10.8	2-50	400	65-380	970	8	22	6366×3041×3106	7.4	15-20	1800×6000
4YK1860	4	10.8	2-50	400	65-380	970	8	30	6566×3041×3356	7.7	15-20	1800×6000
YK2160	1	12.6	2-50	200	80-720	970	8	30	6166×3444×2854	9.9	15-20	2100×6000
2YK2160	2	12.6	2-50	200	80-720	970	8	30	6366×3444×3106	11.2	15-20	2100×6000
3YK2160	3	12.6	2-50	400	90-750	970	8	37	6566×3444×3356	12.4	15-20	2100×6000
4YK2160	4	12.6	2-50	4050	90-750	970	8	45	6566×3444×3356	15.1	15-20	2100×6000
YK2460	1	14.4	2-50	200	150-810	970	8	30	6166×3916×3839	12.2	15-20	2400×6000
2YK2460	2	14.4	2-50	200	150-810	970	8	30	6166×3916×3839	13.5	15-20	2400×6000
3YK2460	3	14.4	2-50	400	180-900	970	8	37	6366×3916×4139	13.6	15-20	2400×6000
4YK2460	4	14.4	2-50	400	180-900	970	8	45	6566×3916×4439	14.4	15-20	2400×6000

Packing&Shipping

Working Sites

Company Profile

Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
