Quick Details
-
Return Force (kN):
-
210 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Dimension(L*W*H):
-
2280x1550x3240mm
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
15 kw
-
Warranty:
-
one year
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Voltage:
-
380/220/415/440V
-
Weight:
-
N.W 16000kg
-
Certification:
-
ISO
-
color:
-
optional
-
function:
-
metal processing
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
560
-
Ejector Force (kN):
-
190
-
Return Force (kN):
-
210 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Dimension(L*W*H):
-
2280x1550x3240mm
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
15 kw
-
Warranty:
-
one year
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Voltage:
-
380/220/415/440V
-
Weight:
-
N.W 16000kg
-
Certification:
-
ISO
-
color:
-
optional
-
function:
-
metal processing
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Chinese manufacturer of JC21-160 general open back press with fixed bed or manual press block machine
1. Main features
It adopts horizontally placed crankshaft
Rigid rotated bond clutch
Manual shut height adjustment with scale display
With pneumatic clutch to make slide stop at any position
2. Main specifications
|
Items |
JC21-160 |
||
|
Nominal force |
KN |
1600 |
|
|
Stroke under nominal force |
mm |
6 |
|
|
Slide block stroke |
Mm |
160 |
|
|
Number of strokes |
Min-1 |
40 |
|
|
Max die set height |
Mm |
350 |
|
|
Die set height adjustment |
mm |
110 |
|
|
Distance from slide block center to the frame |
mm |
380 |
|
|
Worktable dimensions |
mm |
740x1300 |
|
|
Dimensions of worktable hole |
mm |
Φ300x50xΦ260 |
|
|
Thickness of bolster |
mm |
150 |
|
|
Hole dimensions in bed |
mm |
Φ470 |
|
|
Dimensions of slide block bottom surface |
mm |
580x770 |
|
|
Size of the handle hole |
mm |
Φ65x85 |
|
|
Distance between columns of body |
mm |
730 |
|
|
Motor |
Type |
KW |
Y2-180L-6 |
|
Power |
15 |
||
|
Overall dimension |
mm |
2280x1550x3240 |
|
|
N.W/G.W |
kg |
16000/17300 |
|

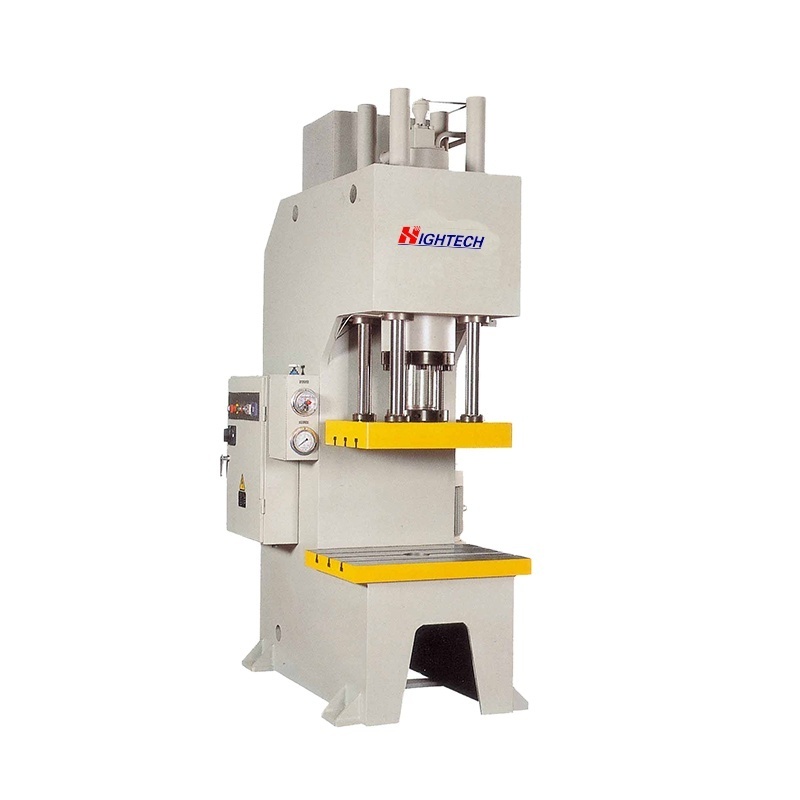

3.Detailed pictures for reference
