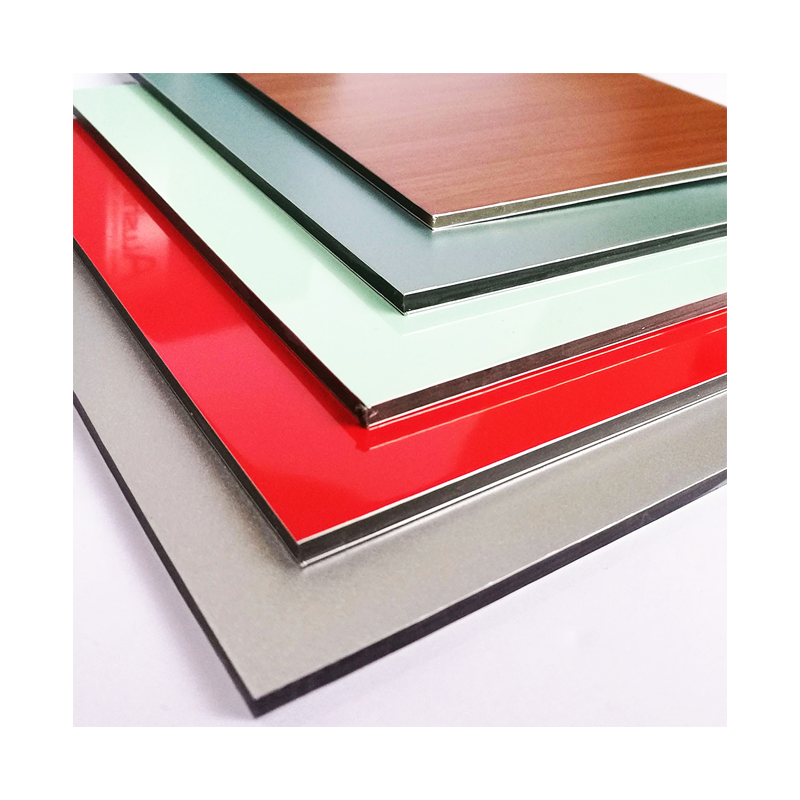

Brush ed wall cladding materials brushed aluminum plastic composite panel co nsists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The surface of the front aluminum is brushed finish, including two kinds of brushed finish, silver brushed aluminum composite panel and gold brushed aluminum composite panel .
|
Specifications
|
|
|
|
Product name
|
Geeshine Brushed Aluminum Composite Panels Building Boards for Curtain Wall Logo Plate Display Platform.
|
|
|
Brand
|
GEESHINE
|
|
|
Panel Width(mm)
|
1220mm,1250mm,1500mm, 1550mm
|
|
|
Panel Length(mm)
|
2440mm,3050mm,4050mm,max 6000(no limited as per loading container)
|
|
|
Panel thickness(mm)
|
2mm/3mm/4mm/5mm/6mm (Standard 3mm/4mm)
|
|
|
Aluminum Alloy
|
AA1100,AA3003,AA5005 series
|
|
|
Glossy
|
20%-50%
|
|
|
Aluminum coil thickness
|
0.15mm,0.18mm,0.21mm,0.30mm,0.40mm,0.40mm,0.5mm
|
|
|
Surface treatment
|
Anodized brush
|
|
|
Thickness of coating
|
16um to 18um or 25um to 28um, 33um
|
|
|
Coating flexibity
|
3T
|
|
|
Coating adhesive
|
1 grade
|
|
|
Peeling Strength
|
5N/mm
|
|
|
Coefficient of Linear Thermal Expansion
|
2.4mm/m
|
|
|
Color
|
RAL, PANTONE,GEESHINE color chart or customers' requirement
|
|
|
PE core material
|
non-toxic low density polyethylene
|
|
|
Back coating
|
primer coating
|
|
|
Base material
|
high strength aluminum alloy sheet
|
|
|
Delivery time
|
3-15 working days after the deposit
|
|
|
Packing
|
FCL, In bulk,LCL,In wooden pallet package or according to customers' requirement
|
|
