Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wired and Wireless
-
Brand Name:
-
ZLWL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial 4G Cellular Router
-
Interface:
-
1 LAN +1 WAN, 1*RS232/RS485
-
Cellular Network:
-
FDD-LTE, TDD, WCDMA, UMTS, GSM, GPRS
-
Antenna:
-
2*3 DBi External Antenna
-
Chipset:
-
QCA9531
-
function:
-
DMZ/DDNS/WiFi/VPN/Qos/DTU/Port forwarding
-
VPN:
-
PPTP L2TP IPSEC OPENVPN N2N GRE
-
Protocol:
-
TCP UDP Telnet SSH FTP HTTP HTTPS
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wired and Wireless
-
Brand Name:
-
ZLWL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial 4G Cellular Router
-
Interface:
-
1 LAN +1 WAN, 1*RS232/RS485
-
Cellular Network:
-
FDD-LTE, TDD, WCDMA, UMTS, GSM, GPRS
-
Antenna:
-
2*3 DBi External Antenna
-
Chipset:
-
QCA9531
-
function:
-
DMZ/DDNS/WiFi/VPN/Qos/DTU/Port forwarding
-
VPN:
-
PPTP L2TP IPSEC OPENVPN N2N GRE
-
Protocol:
-
TCP UDP Telnet SSH FTP HTTP HTTPS
Video Description
ABOUT ORDER
For
Ready to Ship
Order:
1. The default product support "4G+Ethernet+WiFi",
provide a serial port(use for serial data transfer), default is RS232, if you need RS485,please contact customer service.
2.About the frequency band,s
upport Cellular Frequency Bands of most of countries in the world.Please refer to Model form below for details.
3. If you have any question about our company or products, please feel free to contact us.
3. If you have any question about our company or products, please feel free to contact us.
Products Description

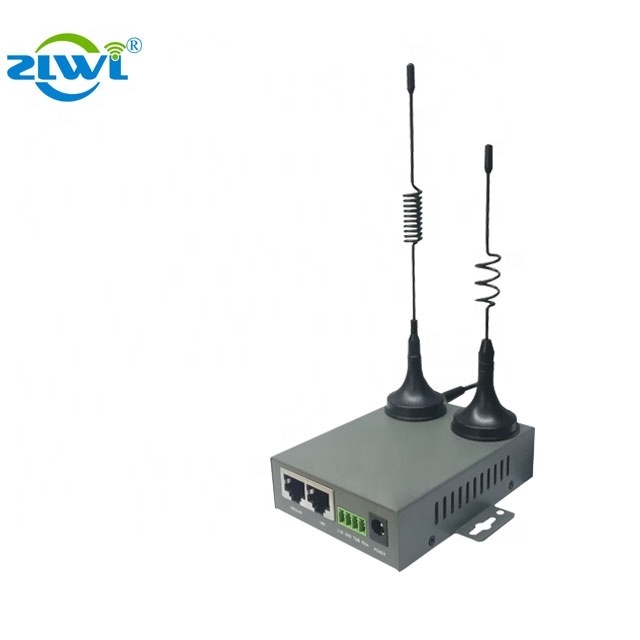

ZR2721
is
cost-effective and powerful industrial router
,which is widely used in M2M(Machine to Machine),
Iot(Internet of things) and SCADA area.
it provides 2 x 100Mbps RJ45 network ports (one of which can be multiplexed with WAN/LAN, one LAN ports),a series port(RS232 default,can change to RS485),and a drawer SIM/UIM card slot. It can have the serial port, Ethernet port and WIFI connected and working at the same time, providing pass-through data transmission and control functions.
Stable work for 7 * 24 hours in harsh environment
With strong WDT, ZR2721 can be self-recovery, schedule reboot function, keeping always online. Adapting to high and low temperature, able to work stably in harsh environment. High level of EMC.Anti-interference design, work in strong electromagnetic interference environment.
Full band coverage, compatible with global major operators’network
Compatible with major network, including TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, EVDO, 3G/4G,etc, you can choose more convenient and economical network and flow rates according to the operation's requirement.
Secure solutions, data transmission meet financial requirement
Supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN etc., and VPN server/client function. Adding a encryption transmission to make sure the security and accuracy of data transmission and management.
ZLWL Remote Management System (Cloud Platform), Support devices configuration, upgrade and maintenance remotely, greatly improve the efficiency of management
All ZLWL terminals can connect with remote management platform, centralized monitoring, configuration, upgrade, diagnosis,maintenance and control the regional equipment. Significantly reduce maintenance costs of operators, system integrators, equipmentproviders, improving the efficiency of management.
Specification
|
Model
|
ZR2721 Series
|
|
|
|
||||
|
Brand
|
ZLWL
|
|
|
|
||||
|
Product Name
|
Industrial 4G Router with Series Ethernet Sim Card
|
|
|
|
||||
|
WiFi
|
Chipset: QCA9531
|
|
|
|
||||
|
|
Standard: IEEE802.11b/g/n, Frequency 2.4GHz,Speed up to 150Mbps
|
|
|
|
||||
|
Cellular
|
Module: EC25/SLM750
|
|
|
|
||||
|
|
Frequency Band: Global bands,customized.
|
|
|
|
||||
|
|
FDD-LTE,TDD-LTE,HSPA,UMTS,WCDMA,EVDO,GSM,GPRS,etc
|
|
|
|
||||
|
Interface
|
|
|
|
|
||||
|
LAN
|
1xEthernet interface（RJ45）,Auto MDI/MDIX, built-in 1.5KV electromagnetic isolation protection
|
|
|
|
||||
|
WAN
|
1xEthernet interface,Auto MDI/MDIX, built-in 1.5KV electromagnetic isolation protection,can be converted to LAN
|
|
|
|
||||
|
Serial Port
|
1xRS232(Default)/RS485(Optional)
|
|
|
|
||||
|
Indicators
|
"WAN", " LAN", "WLAN", "NET" four indicating lamps, the “NET” is a color indicator (red: network signal is poor; Orange: network signal is general; green: network signal is good)
|
|
|
|
||||
|
Antenna
|
2 standard SMA antenna interface (WIFI and 3G/4G), 50ΩSMA, GPS(optional)
|
|
|
|
||||
|
SIM/UIM
|
Standard drawer type user card interface ,Support 1.8V/3V SIM/UIM card built-in 15KV ESD protection
|
|
|
|
||||
|
Power
|
Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection
|
|
|
|
||||
|
Reset Button
|
Restore the router's parameter configuration to factory values
|
|
|
|
||||
|
Hardware system
|
|
|
|
|
||||
|
CPU
|
Industrial-grade 32-bit MIPS processor,650Mhz
|
|
|
|
||||
|
Memory
|
128 MB Flash,1024DDR3 RAM
|
|
|
|
||||
|
Power supply
|
|
|
|
|
||||
|
Standard
|
DC 12V/1A
|
|
|
|
||||
|
Range
|
7.5V-32V
|
|
|
|
||||
|
Consumption
|
2.3W
|
|
|
|
||||
|
Physical Characteristics
|
|
|
|
|
||||
|
Housing
|
Metal
|
|
|
|
||||
|
Dimensions
|
95.5×70.5×25mm(3.75x2.77x0.98in)
|
|
|
|
||||
|
Weight
|
About 210g
|
|
|
|
||||
|
Mounting
|
Desktop or wall mounting
|
|
|
|
||||
|
Environmental
|
|
|
|
|
||||
|
Operating Temperature
|
-30 to +75℃
|
|
|
|
||||
|
Storage Temperature
|
-40 to +85℃
|
|
|
|
||||
|
Relative Humidity
|
0% to 95% (No condensation)
|
|
|
|
||||
|
Certification
|
CCC/CE/RoHS
|
|
|
|
||||
FEATURE
|
Industrial-grade Design
|
√High performance industrial-grade wireless communication module
√High performance industrial grade 32-bit MIPS processor
√Use plate metal CRS shell, heat dissipation is good
√Low power consumption and low heat generation
√Support Desktop or Wall mount installation
√Wide power input range:7.5V~32V DC
|
|
|
|
|||
|
Stability&Reliability
|
√Hardware and Software WDT design
√Built-in 1.5KV electromagnetic isolation protection for Ethernet interface
√Always keep online, reboot automatically if disconnected to ensure continual connection
√RS232/RS485(optional)interface power and data isolation
|
|
|
|
|||
|
Cloud Platform Remote Management
|
√Remote online mornitoring
√Parameter configuration
√Equipment upgrade or reboot
√log query, parameter backup
|
|
|
|
|||
|
High Performance
|
√Failover, Backup and Load balance between WAN and Cellular network
√Multiple WAN connection methods, include Static IP/DHCP/PPPOE
√WIFI Support 802.11b/g/n/. Support AP/AP Client
√Support VPN client&server: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE
√Support DHCP, DDNS, Firewall, NAT, and DMZ host
√Support SNMP, ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS protocol
√Support scheduled reboot
√Support QOS, UPnP protocol, Port forwarding, UDP broadcast relay
√Support multi online trigger ways, including ring, SMS, or data trigger
√Serial port offer Data Transfer Unit(DTU) function and support Modbus protocol
√Support APN and VPDN private network access
√Support TCP/IP, UDP, HTTP and other network protocols
|
|
|
|
|||
Model Form
|
Series
|
Model
|
Fruquency Band
|
Applicable Countries
|
|
|
|
ZR2000
|
ZR2721E
|
LTE FDD: B1/B3/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
|
Europe/Middle Asia/Africa/Ko rea/Thailand/India
|
|
|
|
|
ZR2721N
|
1.FDD:B2/4/5/12/13/17/B18/B25/2 6 TDD:B41
WCDMA:B2/4/5
EVDO:BC0/1 GSM:850/1900
2.FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5
|
North America
|
|
|
|
|
ZR2721A
|
FDD:B1/3/5/7/8/28
TDD:B40
WCDMA:B1/5/8 GSM:850/900/1800/1900
|
Australia/New Zealand/Taiwa n
|
|
|
|
|
ZR2721V
|
FDD:B2/4/5/7/8/28
TDD:B40
WCDMA:B2/5/8 GSM:850/900/1800/1900
|
Latin America
|
|
|
|
|
ZR2721G
|
TDD: B34/B38/B39/B40/B41 FDD:B1/B2/B3/B4/B5/B7/B8/ B12/B13/B18/B19/B20/B25/B26/B 28/B66
UMTS/HSPA+ :B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE:850/900/1800/1900MHz |
Global
|
|
|
