Quick Details
-
Brand Name:
-
SA
-
Model Number:
-
SANH3
-
Product name:
-
Portable ammonia gas detector
-
Detecting Gas:
-
lel h2s ch4 co o2 nh3
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Usage:
-
Industrial
-
Display:
-
LCD Screen
-
Dimensions:
-
105x54x32mm
-
Weight:
-
450g
Quick Details
-
Type:
-
Single gas detector, Gas Detector
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SA
-
Model Number:
-
SANH3
-
Product name:
-
Portable ammonia gas detector
-
Detecting Gas:
-
lel h2s ch4 co o2 nh3
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Usage:
-
Industrial
-
Display:
-
LCD Screen
-
Dimensions:
-
105x54x32mm
-
Weight:
-
450g
Product Description

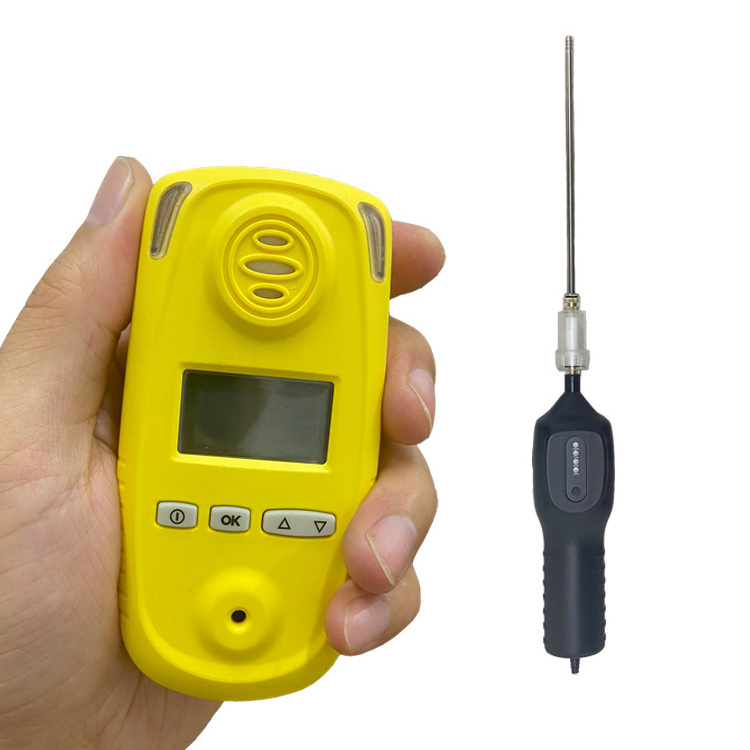

Ammonia Portable gas detector
SA Technology
has multiple product lines of gas detectors specifically designed to monitor oxygen levels.Our Ammonia Portable Gas Detector is a single gas detector in a flameproof ABS enclosure with high sensitive sensor assembly.Long life span Imported eletrochemical sensor is part of our deluxe line because it comes with programmable alarm relays. The response time (T90) for our Hydrogen sensor is less than 45 seconds.
Ammonia (NH3) is one of the most widely used chemicals globally that is produced both in the human body and in nature. Although it is naturally created (NH3) is corrosive which poses a serve concern for health.High exposure within the air can result in immediate burning to the eyes, nose, throat and respiratory tract. Serve cases can result in blindness.Then have an ammonia portable gas detector is playing an important role in entering a confined space.
Ammonia (NH3) is one of the most widely used chemicals globally that is produced both in the human body and in nature. Although it is naturally created (NH3) is corrosive which poses a serve concern for health. High exposure within the air can result in immediate burning to the eyes, nose, throat and respiratory tract. Serve cases can result in blindness.
Specification
Natural diffusion portable gas leak analyzer CO SO2 CH4 NH3 H2S single ammonia gas detector for poultry
|
Technical specification
|
Parameter
|
|
Detecting gas
|
O2/H2/CO2/CL2/NH3/SO2/NO2/CH4/LEL CO O2 H2S(optional)
|
|
|
CH4
|
|
Measurement range
|
(0.00～5.00)%Vol
|
|
Measurement error
|
(0.00～1.00)%CH4:±0.10%CH4 (1.00～3.00)%CH4:true value±10%
(3.00～4.00)%CH4:±0.30%CH4
|
|
Respond time
|
20S(T90)
|
|
Resolution
|
0.01%vol
|
|
Alarm point
|
1.00%vol(can be adjusted in whole range)
|
|
|
CO
|
|
Measurement range
|
(0～1000) ppm
|
|
Measurement error
|
(0～20)% ppm:±2ppm (20～100)ppm:±4ppm
(100～500)ppm:true value±5% (500～1000)ppm:true value ±6%
|
|
Respond time
|
45S(T90)
|
|
Resolution
|
1ppm
|
|
Alarm point
|
24ppm(can be adjusted in whole range)
|
|
|
O2
|
|
Measurement range
|
(0.0～30.0)%Vol
|
|
Measurement error
|
(0.0～5.0)%:±0.5%vol (5.0～30.0)%vol:±0.9%vol
|
|
Respond time
|
35S(T90)
|
|
Resolution
|
0.01%vol
|
|
Low Alarm point
|
18.0%vol(can be adjusted in whole range)
|
|
High Alarm point
|
25.0%vol(can be adjusted in whole range)
|
|
|
H2S
|
|
Measurement range
|
(0～100)ppm
|
|
Measurement error
|
(0～50)ppm:±3ppm (50～100)ppm:true value±10%
|
|
Respond time
|
≤45S(T90)
|
|
Resolution
|
1ppm
|
|
Alarm point
|
10ppm(can be adjusted in whole range)
|
|
Alarm sound intensity
|
80dB
|
|
Alarm way
|
Sound,light alarm
|
|
Alarm indicator light
|
can be visible in the distance of not less 20m
|
|
Sensor life
|
≥2 years(CO,O2,H2S) ≥1 years(LEL,CH4)
|
|
Working current
|
95mA
|
|
Continuous operating hours
|
≥15 hours
|
|
Battery item
|
Pl123450 3.7V/1500mA
|
|
Battery short circuit current
|
2A
|
|
Charging time
|
4-5 hours
|
|
Protection level
|
IP54
|
|
Working temperature
|
-25℃～55℃;short time for -40℃～55℃
|
|
Size
|
130*66*30mm
|
Characters of ammonia portable gas detector
-
Lightweight and wearable personal single ammonia gas detector
- Hard large display,backlit design,easy to read
-
Data logging function will log the last 9000 data and this can be backed up to the PC
- Rechargeable
Lithium ion battery,can continuous work 15 hours after full charged.
- Long lifespan electrochemical or infrared sensor more than 2 years
- Adjusting high&low alarm
threshold,STEL,TWA for optional
-
Loud 80dBA audible alarm, vibrating alarm, dual color red visual alarm
- Multi gas species for your choose:H2,SO2,H2S,CH4,NH3,NO2,CO,CO2,C2H4,CL2,C2H4O
Application
Ammonia Portable sensors analyzer detect dangerous levels of NH3 gas to ensure a safe working environment.Typical areas where gas sensing, detection, and monitoring are critical include:
Chicken Farms
Greenhouse & Storage areas
Confined space
Research labs
Engine testing
Manufacturing,polymer/plastic
General Leak detection in process manufacturing
Refrigeration&Cold storage facility
Underground construction
Buildings and research and facility
Blast furnace operation
Packing & Delivery
Natural diffusion portable gas leak analyzer CO SO2 CH4 NH3 H2S single ammonia gas detector for poultry
Those ammonia portable gas detector and accessories will be packed into carton box before shipping.
The packing listing of ammonia gas detector are below:
1.Ammonia Portable gas detector*1
2.Calibration cap&Tube
3.USB cable wire&adapter
4.Leather bag
5.Manual instruction
6.Back clip
