Quick Details
-
Application:
-
School
-
Design Style:
-
Minimalist
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ganyoung
-
Model Number:
-
acoustic panels
-
Product name:
-
Soundproof Polyester Acoustic Panels
-
Material:
-
100% Polyester Fiber
-
Color:
-
48 Colors
-
Acoustic Panel Type:
-
Acoustic Felt Polyester Acoustic Panels
-
Size:
-
1220*2440mm.Other Size
-
Thickness:
-
3mm-25mm
-
Installation:
-
Glue
-
Shape:
-
Wedge
-
Certification:
-
EN13501
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
School
-
Design Style:
-
Minimalist
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ganyoung
-
Model Number:
-
acoustic panels
-
Product name:
-
Soundproof Polyester Acoustic Panels
-
Material:
-
100% Polyester Fiber
-
Color:
-
48 Colors
-
Acoustic Panel Type:
-
Acoustic Felt Polyester Acoustic Panels
-
Size:
-
1220*2440mm.Other Size
-
Thickness:
-
3mm-25mm
-
Installation:
-
Glue
-
Shape:
-
Wedge
-
Certification:
-
EN13501
Acoustic Panels Video
Product Acoustic panels introduction

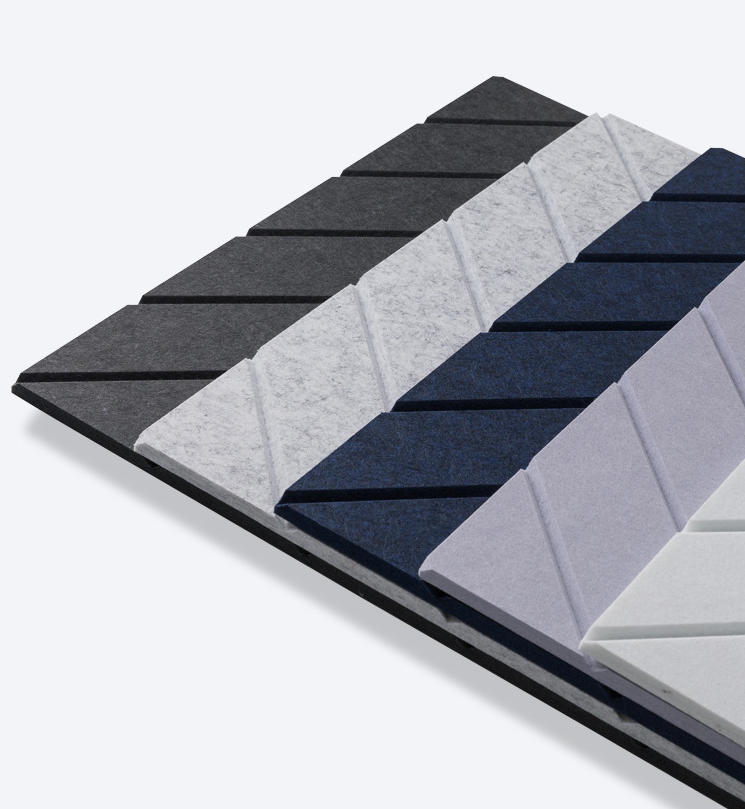

Acoustic Panels
PET Acoustic Panel is made from 100% polyester, by needle punching processing. The production process is completely
physical&eco-friendly, no waste water, emissions, waste,. no adhesive, The porous nature of acoustic panel makes it sound absorptive&thermal insulative.Our PET acoustic panels Non-toxic, non-allergenic, non-irritant and does not contain formaldehyde binders and have high NRC: 0.85 .
physical&eco-friendly, no waste water, emissions, waste,. no adhesive, The porous nature of acoustic panel makes it sound absorptive&thermal insulative.Our PET acoustic panels Non-toxic, non-allergenic, non-irritant and does not contain formaldehyde binders and have high NRC: 0.85 .
|
Product name
|
Polyester(PET) acoustic panels
|
|
|
|
|||
|
Colors
|
48 available or customized
|
|
|
|
|||
|
Thickness
|
3mm-25mm, all available
|
|
|
|
|||
|
Size
|
normall is 1220*2440mm, Max: 2440*3050mm, other size available customized
|
|
|
|
|||
|
Material
|
100% recycled polyester fiber(RPET)
|
|
|
|
|||
|
Density
|
1200g/M²-3600M/²,all available
|
|
|
|
|||
|
Stock
|
normally is 9mm and 12mm
|
|
|
|
|||
|
Flame Retarant
|
ASTM E84 CLASS A, EN13501 CLASS B
|
|
|
|
|||
|
Certificate
|
MSDS, SGS, OEKT-100, Intertek and so on
|
|
|
|
|||
|
Function
|
soundproof, decoration, Eco-friendly material(recycled PET staple fiber physical process, no chemical irritants free of harmful substances.
|
|
|
|
|||
Acoustical absorption performance test results
|
Test items
|
Method standard
|
Results of testing
|
Remarks
|
|
NRC
|
GBJ47-1983
|
0.95
|
Rear Cavity:200cm
Thickness:9mm Density:229kg/m³ |
|
NRC
|
GBJ47-1983
|
0.925
|
Rear Cavity:100cm
Thickness:9mm Density:229kg/m³ |
|
NRC
|
GBJ88-1985
|
0.70
|
Rear Cavity:50cm
Thickness:9mm Density:229kg/m³ |
|
NRC
|
GBJ88-1985
|
0.65
|
Rear Cavity:50cm
Thickness:5mm Density:229kg/m³ |
Acoustic Panels Color chart
Installation of Acoustic Panels
Acoustic Panels Application
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Acoustic Desk Dividers
Home Acoustic Panels
Pin Board Acoustic Panels
Acoustic Panels Ceiling
Cinema Acoustic Panels
Meeting Room Acoustic Panels
Recommend Acoustic Panels
FAQ for Acoustic Panels
Q: Are you a manufacturer or a trading company for polyester acoustic panels?
A:We are the set of design, development, production ,sale and service of industry and trade-oriented enterprises.
Q:Could you tell me something about your products of polyester acoustic panels?
A:Yes,We have a wide range of products such as painter felt, red carpet , moving blanket and acoustic board .
If you want to know more information , I will e-mail you .
Q: How can we get a quote of polyester acoustic panels?
A:According to your requirements ,such as weight , color , size ,
designs of you need ,etc .And e-mail us.
Q:Do you accept small quantity order for polyester acoustic panels?
A:Yes,small order is welcomed .We would like to grow up with you together.
Q:What are you packaging methods for polyester acoustic panels?
A:Yes ,according to customs’ demand ,there are carton
packaging ,bulk packaging and Pallet packaging for your choose
Q:How and when can I get the sample of polyester acoustic panels?
A: General ,we can provide free sample ,just pls kindly provide us your express account . We can reach fast sample requirement .
A:We are the set of design, development, production ,sale and service of industry and trade-oriented enterprises.
Q:Could you tell me something about your products of polyester acoustic panels?
A:Yes,We have a wide range of products such as painter felt, red carpet , moving blanket and acoustic board .
If you want to know more information , I will e-mail you .
Q: How can we get a quote of polyester acoustic panels?
A:According to your requirements ,such as weight , color , size ,
designs of you need ,etc .And e-mail us.
Q:Do you accept small quantity order for polyester acoustic panels?
A:Yes,small order is welcomed .We would like to grow up with you together.
Q:What are you packaging methods for polyester acoustic panels?
A:Yes ,according to customs’ demand ,there are carton
packaging ,bulk packaging and Pallet packaging for your choose
Q:How and when can I get the sample of polyester acoustic panels?
A: General ,we can provide free sample ,just pls kindly provide us your express account . We can reach fast sample requirement .
