Quick Details
-
Type:
-
Steel T Bolt Wide Hose Clamp
-
Band Width:
-
19mm, 20mm
-
Band Thickness:
-
0.6mm, 0.8mm
-
Size:
-
24-30mm to all
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Poly Bag+ Box + Carton
-
Delivering Port:
-
Qingdao/Tianjin/Shanghai/Ningbo
-
DELIVERY TIME:
-
15-30 Days
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Food & Beverage, General Industry, Healthcare, Heavy Industry, Mining
-
Product name:
-
Metal Intercooler Pipe T Clamp Clip Clamp
-
Type:
-
Steel T Bolt Wide Hose Clamp
-
Band Width:
-
19mm, 20mm
-
Band Thickness:
-
0.6mm, 0.8mm
-
Size:
-
24-30mm to all
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Poly Bag+ Box + Carton
-
Delivering Port:
-
Qingdao/Tianjin/Shanghai/Ningbo
-
DELIVERY TIME:
-
15-30 Days

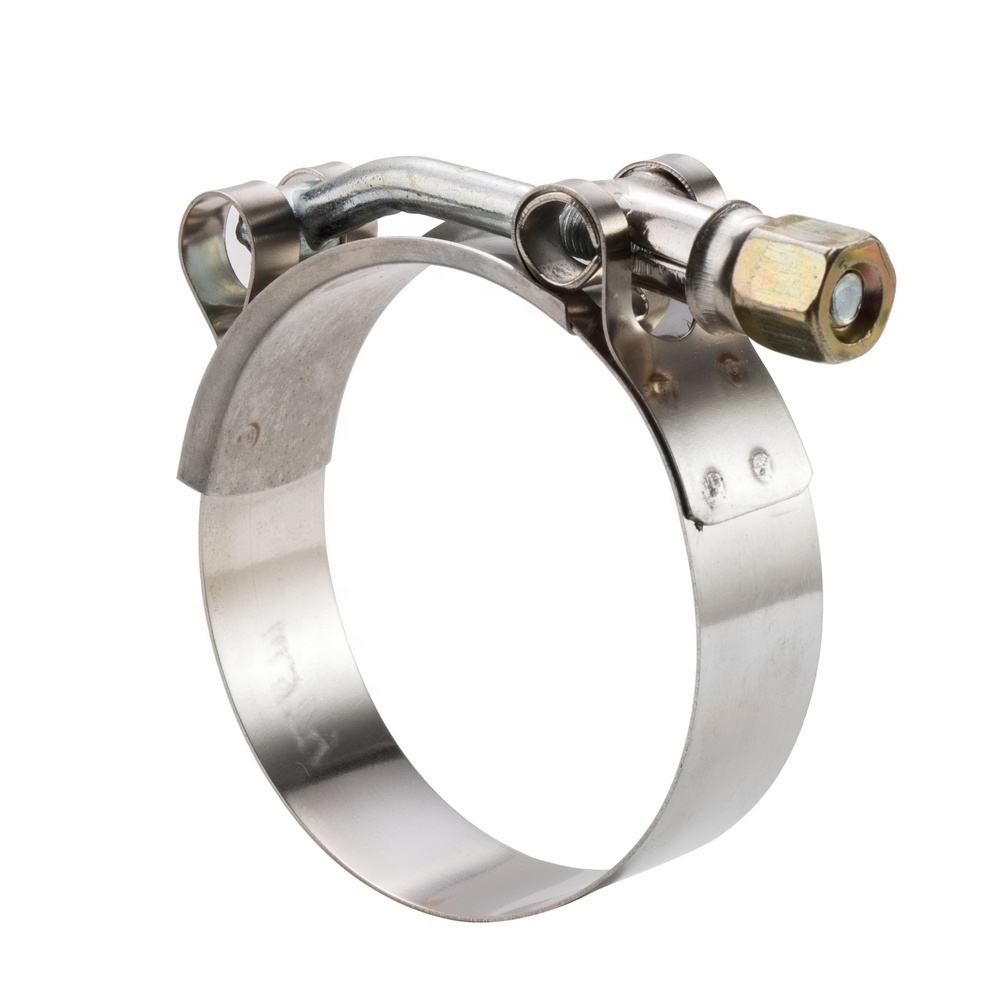

Custom Qingdao Steel T Bolt Wide Hose Clamp accepting manufacturers Metal Intercooler Pipe T Clamp Clip Clamp:
1) Band Width: 20mm
2) Sizes: 24-30mm to all
3) Band Thickness: 0.6mm, 0.8mm
4) Materials: 201,301,304,316 Stainless Steel, Galvanized Steel
5) Professional manufacturer, Certified by ISO 9001:2008, Full refund in case of bad quality
6) Free samples, Payment by Paypal, On time delivery, 24*7 after sales service
7) Sample order acceptable, OEM order acceptable
SAE Sizes | Min. Dia. | Max. Dia. | Band Width | Band Thickness | Screw |
Inch | Inch | mm | mm | ||
--- | 1 3/8 | 1 9/16 | 19 | 0.6 | M6 |
--- | 1 1/2 | 1 5/8 | 19 | 0.6 | M6 |
--- | 1 5/8 | 1 7/8 | 19 | 0.6 | M6 |
28 | 1 3/4 | 2 | 19 | 0.6 | M6 |
32 | 1 7/8 | 2 3/16 | 19 | 0.6 | M6 |
36 | 2 | 2 5/16 | 19 | 0.6 | M6 |
40 | 2 1/8 | 2 7/16 | 19 | 0.6 | M6 |
44 | 2 1/4 | 2 9/16 | 19 | 0.6 | M6 |
48 | 2 3/8 | 2 11/16 | 19 | 0.6 | M6 |
52 | 2 1/2 | 2 13/16 | 19 | 0.6 | M6 |
56 | 2 5/8 | 2 15/16 | 19 | 0.6 | M6 |
60 | 2 3/4 | 3 1/16 | 19 | 0.6 | M6 |
64 | 2 7/8 | 3 3/16 | 19 | 0.6 | M6 |
68 | 3 | 3 5/16 | 19 | 0.6 | M6 |
72 | 3 1/8 | 3 7/16 | 19 | 0.6 | M6 |
76 | 3 1/4 | 3 9/16 | 19 | 0.6 | M6 |
80 | 3 3/8 | 3 11/16 | 19 | 0.6 | M6 |
84 | 3 1/2 | 3 13/16 | 19 | 0.6 | M6 |
88 | 3 5/8 | 3 15/16 | 19 | 0.6 | M6 |
92 | 3 3/4 | 4 1/16 | 19 | 0.6 | M6 |
100 | 4 | 4 5/16 | 19 | 0.6 | M6 |
108 | 4 1/4 | 4 9/16 | 19 | 0.6 | M6 |
116 | 4 1/2 | 4 13/16 | 19 | 0.6 | M6 |
124 | 4 3/4 | 5 1/16 | 19 | 0.6 | M6 |
132 | 5 | 5 5/16 | 19 | 0.6 | M6 |
140 | 5 1/4 | 5 9/16 | 19 | 0.6 | M6 |
148 | 5 1/2 | 5 13/16 | 19 | 0.6 | M6 |
156 | 5 3/4 | 6 1/16 | 19 | 0.6 | M6 |
164 | 6 | 6 5/16 | 19 | 0.6 | M6 |
172 | 6 1/4 | 6 9/16 | 19 | 0.6 | M6 |
180 | 6 1/2 | 6 13/16 | 19 | 0.6 | M6 |
188 | 6 3/4 | 7 1/16 | 19 | 0.6 | M6 |
196 | 7 | 7 5/16 | 19 | 0.6 | M6 |
204 | 7 1/4 | 7 9/16 | 19 | 0.6 | M6 |
212 | 7 1/2 | 7 13/16 | 19 | 0.6 | M6 |
220 | 7 3/4 | 8 1/16 | 19 | 0.6 | M6 |
