Quick Details
-
Brand Name:
-
CINCO
-
Model Number:
-

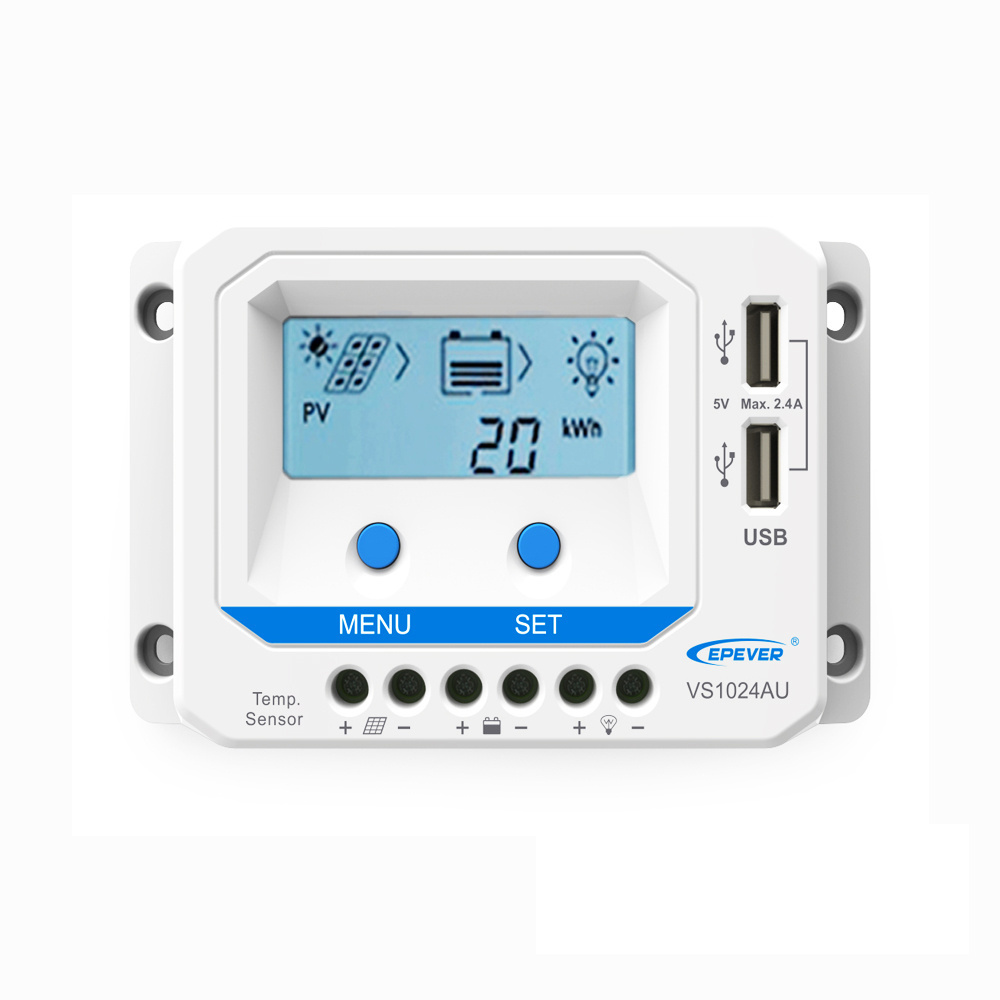

VS1024AU
-
Work Time (h):
-
24H
-
Max PV Power:
-
NO
-
Max PV Voltage:
-
38V
-
Certificate:
-
ce
-
Warranty:
-
2years, 2 Years
-
Charge mode:
-
PWM Mode
-
Rated Current:
-
10A
-
System voltage:
-
12v/24v Automatic Recognition
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CINCO
-
Model Number:
-
VS1024AU
-
Work Time (h):
-
24H
-
Max PV Power:
-
NO
-
Max PV Voltage:
-
38V
-
Certificate:
-
ce
-
Warranty:
-
2years, 2 Years
-
Charge mode:
-
PWM Mode
-
Rated Current:
-
10A
-
System voltage:
-
12v/24v Automatic Recognition
Products Description
1. Series PWM charging mode
2. Full power working at working temperature range
3. Multiple load control modes
4. Adopt high quality, high-reliability international components brand
5. Double USB design
6. Segment LCD display design
7. Real time energy statistics function
8. Extensive electronic protection
Details Images
Wiring order & Accessories
Product Paramenters
|
Model
|
VS1024AU
|
VS2024AU
|
VS3024AU
|
VS4524AU
|
|||
|
Nominal System Voltage
|
12/24VDC① Auto
|
|
|
|
|||
|
Battery Input Voltage Range
|
9V～32V
|
|
|
|
|||
|
Rated charge/discharge current
|
10A@55℃
|
20A@55℃
|
30A@55℃
|
45A@55℃
|
|||
|
Max. PV open circuit voltage
|
50V
|
|
|
|
|||
|
Battery type
|
Sealed(Default) / Gel / Flooded
|
|
|
|
|||
|
Equalize Charging Voltage※
|
Sealed:14.6V/ Gel: No/ Flooded:14.8V
|
|
|
|
|||
|
Boost Charging Voltage※
|
Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
|
|
|
|
|||
|
Float Charging Voltage※
|
Sealed/Gel/Flooded:13.8V
|
|
|
|
|||
|
Low Voltage Reconnect Voltage※
|
Sealed/Gel/Flooded:12.6V
|
|
|
|
|||
|
Low Voltage Disconnect Voltage※
|
Sealed/Gel/Flooded:11.1V
|
|
|
|
|||
|
Self-consumption
|
≤9.2mA/12V;≤11.7mA/24V; ≤14.5mA/36V;≤17mA/48V
|
|
|
|
|||
|
Temperature compensate coefficient
|
-3mV/℃/2V (Default)
|
|
|
|
|||
|
Charge circuit voltage drop
|
≤0.29V
|
|
|
|
|||
|
Discharge circuit voltage drop
|
≤0.16V
|
150V① 138V②
|
150V① 138V②
|
150V① 138V②
|
|||
|
LCD temperature range
|
-20℃～+70℃
|
(Battery Voltage +2V) ～108V②
|
(Battery Voltage +2V) ～108V②
|
(Battery Voltage +2V) ～108V②
|
|||
|
Working environment temperature※
|
-25℃～+55℃(Product can work continuously at full load)
|
|
|
|
|||
|
Relative humidity range
|
≤95%, N.C
|
|
|
|
|||
|
Enclosure
|
IP30
|
|
|
|
|||
|
Grounding
|
Common Positive
|
|
|
|
|||
|
USB output
|
5VDC/2.4A(Total)
|
|
|
|
|||
|
Dimension(mm)
|
142x85x41.5
|
160x94.9x49.3
|
181x100.9x59.8
|
194x118.4x63.8
|
|||
|
Mounting dimension(mm)
|
130x60
|
148x70
|
172x80
|
185x90
|
|||
|
Mounting hole size
|
Φ4.5mm
|
Φ4.5mm
|
Φ5mm
|
Φ5mm
|
|||
|
Terminal
|
12AWG/4mm2
|
8AWG/10mm2
|
6AWG/16mm2
|
6AWG/16mm2
|
|||
|
Weight
|
0.22kg
|
0.35kg
|
0.55kg
|
0.76kg
|
|||
|
Model
|
VS3048AU
|
VS4548AU
|
VS6024AU
|
VS6048AU
|
|||
|
Nominal System Voltage
|
12/24VDC Auto
|
|
|
12/24/36/48VDC Auto
|
|||
|
Battery Input Voltage Range
|
9V～32V
|
|
|
9V～64V
|
|||
|
Rated charge/discharge current
|
30A@55℃
|
45A@55℃
|
60A@55℃
|
60A@55℃
|
|||
|
Max. PV open circuit voltage
|
50V
|
|
|
96V
|
|||
|
Battery type
|
Sealed(Default) / Gel / Flooded
|
|
|
|
|||
|
Equalize Charging Voltage※
|
Sealed:14.6V/ Gel: No/ Flooded:14.8V
|
|
|
|
|||
|
Boost Charging Voltage※
|
Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
|
|
|
|
|||
|
Float Charging Voltage※
|
Sealed/Gel/Flooded:13.8V
|
|
|
|
|||
|
Low Voltage Reconnect Voltage※
|
Sealed/Gel/Flooded:12.6V
|
|
|
|
|||
|
Low Voltage Disconnect Voltage※
|
Sealed/Gel/Flooded:11.1V
|
|
|
|
|||
|
Self-consumption
|
≤9.2mA/12V;≤11.7mA/24V; ≤14.5mA/36V;≤17mA/48V
|
|
|
|
|||
|
Temperature compensate coefficient
|
-3mV/℃/2V (Default)
|
|
|
|
|||
|
Charge circuit voltage drop
|
≤0.29V
|
|
|
|
|||
|
Discharge circuit voltage drop
|
≤0.16V
|
150V① 138V②
|
150V① 138V②
|
150V① 138V②
|
|||
|
LCD temperature range
|
-20℃～+70℃
|
(Battery Voltage +2V) ～108V②
|
(Battery Voltage +2V) ～108V②
|
(Battery Voltage +2V) ～108V②
|
|||
|
Working environment temperature※
|
-25℃～+55℃(Product can work continuously at full load)
|
|
|
|
|||
|
Relative humidity range
|
≤95%, N.C
|
|
|
|
|||
|
Enclosure
|
IP30
|
|
|
|
|||
|
Grounding
|
Common Positive
|
|
|
|
|||
|
USB output
|
5VDC/2.4A(Total)
|
|
|
|
|||
|
Dimension(mm)
|
181x100.9x59.8
|
194x118.4x63.8
|
214x128.7x72.2
|
214x128.7x72.2
|
|||
|
Mounting dimension(mm)
|
172x80
|
185x90
|
205x100
|
205x100
|
|||
|
Mounting hole size
|
Φ5mm
|
Φ5mm
|
Φ5mm
|
Φ5mm
|
|||
|
Terminal
|
6AWG/16mm2
|
6AWG/16mm2
|
4AWG/25mm2
|
4AWG/25mm2
|
|||
|
Weight
|
0.58kg
|
0.88kg
|
1.02kg
|
1.04kg
|
|||
Product packaging
