Quick Details
-
Material of the check surface:
-
Heat resistant ABS
-
Detection of objects:
-
Iron, copper, steel; aluminum, nickel and other metal objects
-
Output current:
-
300mA
-
Object material:
-
brass chrome plated
-
Protection function:
-
polarity protection, surge absorption, short circuit protection
-
Tube buck:
-
≤2.5V
-
Protection class:
-
IP67
-
Current consumption:
-
8mA/12V 15mA/24V
Quick Details
-
Use:
-
Position Sensor
-
Working power supply:
-
DC three-wire type DC6-36V
-
Detection distance:
-
8mm±10% (To A3 iron as the standard)
-
Material of the check surface:
-
Heat resistant ABS
-
Detection of objects:
-
Iron, copper, steel; aluminum, nickel and other metal objects
-
Output current:
-
300mA
-
Object material:
-
brass chrome plated
-
Protection function:
-
polarity protection, surge absorption, short circuit protection
-
Tube buck:
-
≤2.5V
-
Protection class:
-
IP67
-
Current consumption:
-
8mA/12V 15mA/24V

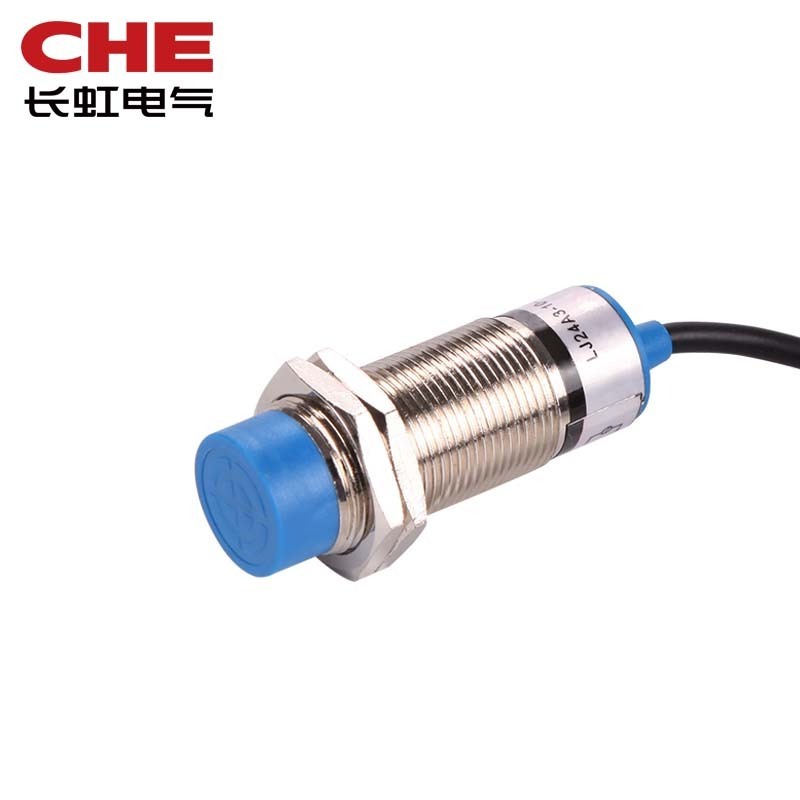

LJ24A3-8-Z/BY 3 wires PNP NO embedded DC6-36V Industrial automation metal detection inductive proximity sensor switch
|
Product name |
Output form |
Non-embedded |
Embedded |
||
|
Inductive proximity switch |
DC three wires 6-36V |
NPN type |
NO |
LJ24A3-10-Z/BX |
LJ24A3-8 -Z/BX |
|
NC |
LJ24A3-10-Z/ A X |
LJ24A3-8 -Z/ A X |
|||
|
PNP type |
NO |
LJ24A3-10-Z/B Y |
LJ24A3-8 -Z/B Y |
||
|
NC |
LJ24A3-10-Z/ AY |
LJ24A3-8 -Z/ AY |
|||
|
DC two wires 6-36V |
NO |
LJ24A3-10-Z/ E X |
LJ24A3-8- Z/ E X |
||
|
NC |
LJ24A3-10-Z/ D X |
LJ24A3-8 -Z/ D X |
|||
|
AC two wires 90-250V |
NO |
LJ24A3-10- J / EZ |
LJ24A3-8 - J / EZ |
||
|
NC |
LJ24A3-10- J / DZ |
LJ24A3-8 - J / DZ |
|||
