Quick Details
-
Panel Size:
-
960(H)x1280(W)
-
Place of Origin:
-
China
-
Model Number:
-
DT10-1R1G1B-2F2
-
Pixel density:
-
10000dots/m2
-
Pixel Configuration:
-
SMD 1R1G1B
-
Control Mode:
-
Asynchronous System
-
Display Dimension:
-
960(H)x1280(W)
-
Brightness:
-
7000
-
Maintenance:
-
rear
-
Protect Level:
-
IP66
-
Input Voltage:
-
12~24V
-
Pixel Pitch:
-
10
Quick Details
-
Application:
-

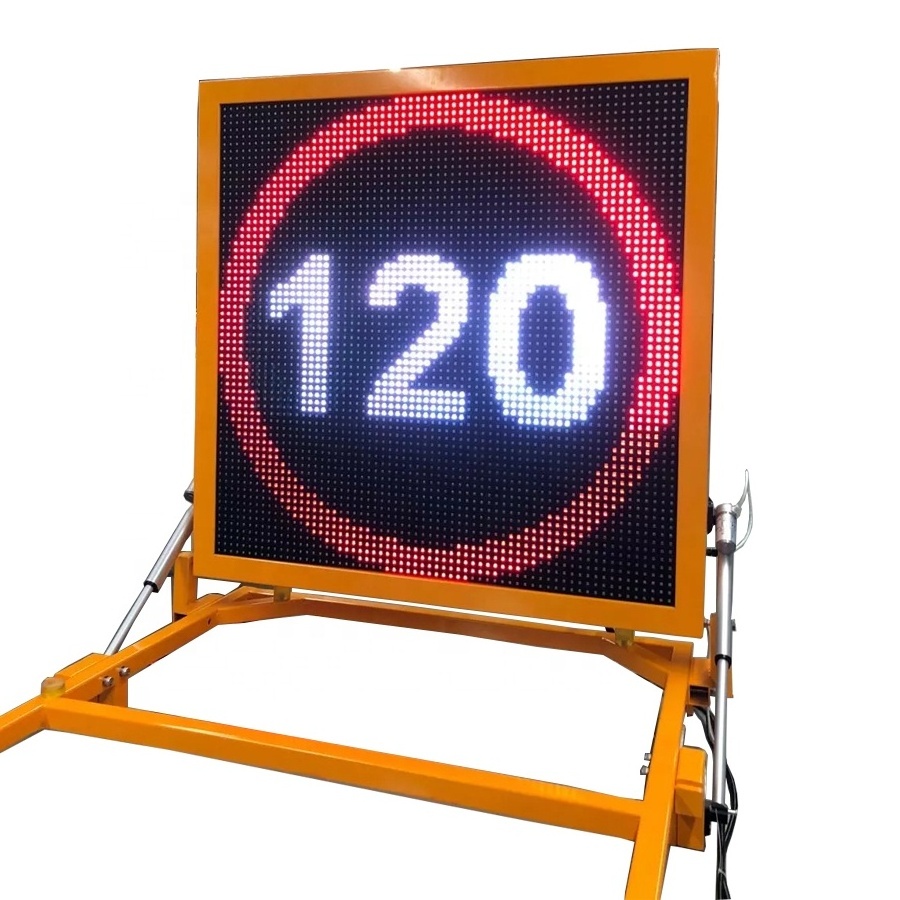

Traffic information release
-
Brand Name:
-
Yaham
-
Color:
-
full color
-
Panel Size:
-
960(H)x1280(W)
-
Place of Origin:
-
China
-
Model Number:
-
DT10-1R1G1B-2F2
-
Pixel density:
-
10000dots/m2
-
Pixel Configuration:
-
SMD 1R1G1B
-
Control Mode:
-
Asynchronous System
-
Display Dimension:
-
960(H)x1280(W)
-
Brightness:
-
7000
-
Maintenance:
-
rear
-
Protect Level:
-
IP66
-
Input Voltage:
-
12~24V
-
Pixel Pitch:
-
10
Product Description
Specification
|
Item
|
Specification
|
|
Model Number
|
DT10-1R1G1B-2F2
|
|
Pixel Pitch
|
10
|
|
Pixel Density
|
10000
|
|
Pixel Configuration
|
1R1G1B
|
|
LED
|
Nation star
|
|
LED Model
|
RS-3535
|
|
Control Mode
|
Asynchronous
|
|
Display Dimension
|
960(H)x1280(W)
|
|
Module Dimension
|
96(H)×128(W)
|
|
Module Resolution
|
16(H)×32(W)
|
|
Brightness
|
7000
|
|
Cabinet Material
|
AL
|
|
Cabinet Color
|
Yellow
|
|
Protect Level
|
IP65
|
|
Maintenance
|
Rear Access
|
|
Input Voltage
|
12V
|
|
PC Monitor Resolution Request
|
768(H) × 1024(W)
|
|
Module Max Power Consumption
|
5.6A*4.2V=23.5(white)
|
|
Display Max Power Consumption
|
650
|
Prouduct details
|
Item
|
Name
|
Description
|
|
A
|
LED module
|
Unit of LED display. A number of LED modules are assembled into a display.
|
|
B
|
Lock
|
To open the door to maitein the devices in cabinet with the key.
|
|
C
|
LCD Cable Connector
|
LCD cable connect here
|
|
D
|
Light sensor Connector
|
Light sensor is installed on this hole. Light sensor collect the brightness information of ambient luminance, and then the control
card can adjust the display’s brightness automatically. |
|
E
|
Power Cable Hole
|
DC 12V/24V power cable get into cabinet from here
|
