Quick Details
-
Dimension(L*W*H):
-
1150*1300*1200mm
-
Weight:
-
390 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Match power:
-
18-50hp tractor
-
Working efficiency:
-
80-120bales/h
-
Connecting:
-
PTO and 3 points sunspensio
-
Bale size:
-
dia. 50/61 cm*length 70cm
-
color:
-
green
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANON
-
Application:
-
hale baler machine
-
Dimension(L*W*H):
-
1150*1300*1200mm
-
Weight:
-
390 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Match power:
-
18-50hp tractor
-
Working efficiency:
-
80-120bales/h
-
Connecting:
-
PTO and 3 points sunspensio
-
Bale size:
-
dia. 50/61 cm*length 70cm
-
color:
-
green
-
Certification:
-
CE ISO

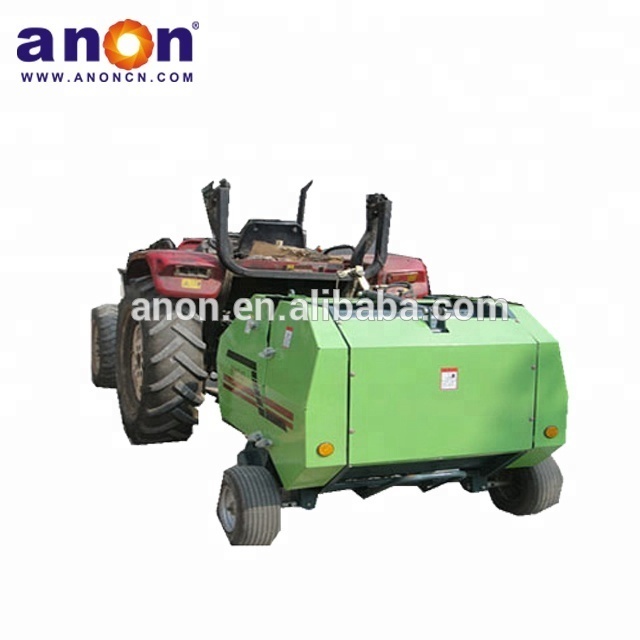

ANON Agriculture Grass Straw manual Hay Baler Machine Mini Round Baler
1. The baler is widely used in the bundling up many kinds of straw ,such as the forage grass, rice straw, wheat straw, and the straw of the corn .
2.It is consist of main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 5-90hp tractor by PTO shaft.
3. The bale shape is round , which is easy to transport, storage and further process.
4. 3 point linkage, easy to lift and pass from one place to another .
5.H igh efficiency , make the picking and bundling up at one time.
6. Buzzer warning after one bale finished, bale density adjustable.
7.Natural hemp twine, harmless to animal.
8.Each bale weights about 15-20kg, one hour can bale about 80-120 bales.
9.Our baler can use tractor hydraulic system or hydraulic pump on itself.
Two models are for your choice:
Specifcation of hale baler machine
|
Type and specification |
ANMRB8050 |
ANMRB8070 |
|
Operation width (mm) |
500 |
700 |
|
Operation speed (km/h) |
2~5 |
2~5 |
|
Capadity (Bales/h) |
80~120 |
80~100 |
|
Appearance size (mm) |
1150×1300×1200 |
1300×1300×1350 |
|
Package size (mm) |
1380×1120×1120 |
1430×1120×1130 |
|
Bind size (mm) Diameter×Width |
φ 500×700 |
φ 610×700 |
|
Weight of machine (kg) |
390 |
420 |
|
Weight of bind (kg) |
15~20 |
|
|
Drive way |
P.T.O drive |
|
|
Input rotating speed (r/min) |
540 |
|
|
Tire size |
16×6.50-8-4PR |
16×6.50-8-4PR |
|
Mating power (kw/hp) |
13~37/25~45 |
|
|
Mounting way |
3-point suspension
|
|
Main machine
Internal details of manual hay baler
The effects of manual hay baler
