Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Model Number:
-
PFFD-330T khaki paper bag making machine
-
Voltage:
-
380V,3phase,50/60HZ
-
Dimension(L*W*H):
-
10000x3700x2200 mm
-
Weight:
-
8500 KG
-
Marketing Type:
-
paper bag making machine
-
Product name:
-
fully automatic high speed roll fed paper bag making machine price
-
Keywords:
-
paper bag making machine
-
Usage:
-
Paper Bag Making Machine
-
Multifunction:
-
Roll Material
-
Application:
-
Supermarket/ Food & Beverage Factory
-
Bag Speed:
-
30-180 pcs/min
-
Paper Bag Length:
-
270-530mm
-
Paper bag bottom width::
-
70-180mm
-
Paper roll width::
-
380-1050mm
-
Paper thickness::
-
60-150g/m2
Quick Details
-
Machine Type:
-
Paper Bag Making Machine
-
Bag Type:
-
Shopping Bag/ food bag
-
Material:
-
Paper
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Model Number:
-
PFFD-330T khaki paper bag making machine
-
Voltage:
-
380V,3phase,50/60HZ
-
Dimension(L*W*H):
-
10000x3700x2200 mm
-
Weight:
-
8500 KG
-
Marketing Type:
-
paper bag making machine
-
Product name:
-
fully automatic high speed roll fed paper bag making machine price
-
Keywords:
-
paper bag making machine
-
Usage:
-
Paper Bag Making Machine
-
Multifunction:
-
Roll Material
-
Application:
-
Supermarket/ Food & Beverage Factory
-
Bag Speed:
-
30-180 pcs/min
-
Paper Bag Length:
-
270-530mm
-
Paper bag bottom width::
-
70-180mm
-
Paper roll width::
-
380-1050mm
-
Paper thickness::
-
60-150g/m2
♦Application♦

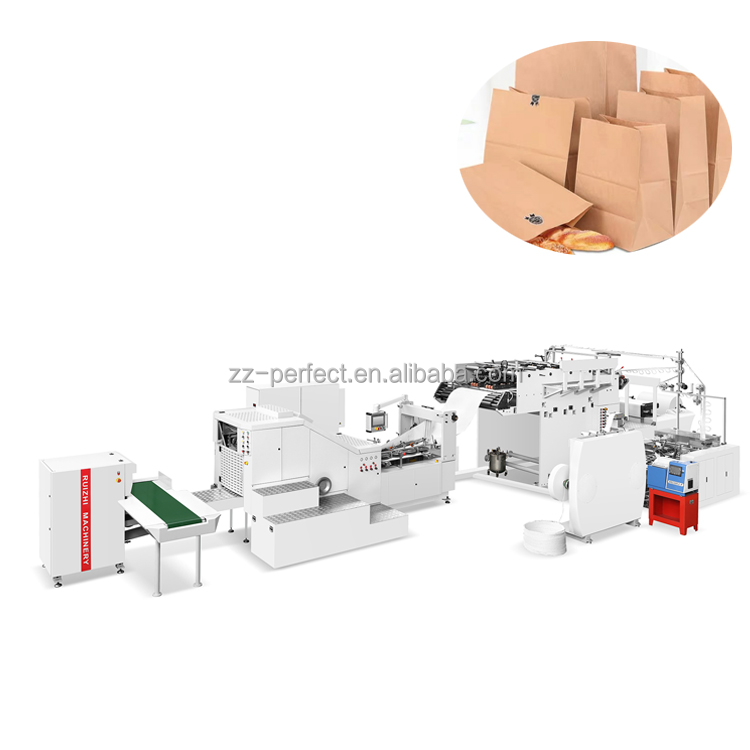

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making.
|
|
♦Technical parameters♦
|
Model |
PFFD--330T |
|
Cutting length |
270-530 mm |
|
Cutting length (with handle) |
270-430mm |
|
Bag width |
120-330 mm |
|
Bag width (with handle) |
200-330mm |
|
Bottom width |
6 0-180mm |
|
Paper Thickness |
60-150g/m2 |
|
Paper Thickness (with handle) |
80-150g/m2 |
|
Paper roll width |
380-1050mm |
|
Paper roll width (with handle) |
570-1050mm |
|
Roll paper diameter Roll paper diameter |
1300mm |
|
Paper core |
76mm |
|
Patch length |
152mm |
|
patch width |
50mm |
|
Handle distance |
75mm |
|
Rope diameter |
3-5mm |
|
Patch paper roll width |
100mm |
|
patch paper roll diameter |
1200mm |
|
patch paper thickness |
100-135g/m2 |
|
Machine Speed |
30-200bags/min |
|
production speed for bags without handles |
30-180bags/min |
|
production speed for bags with handles |
30-150bags/min |
|
Bottom folding type |
|
|
Cutting knife |
Sawtooth cutting |
|
Power Supply |
380V 3Phase 41.5KW |
|
Machine weight |
15000kg |
|
Machine size |
14000x6000x2400mm |
♦Features ♦
|
Germany (Lenze) servo motor , motion controller through more than 100 MB, servo driver through the power line and the encoder integrated line control servo motor operation, to achieve high speed and high precision motion control |
|
| Germany Lenze motion controller (CPU), motion controller through more than 100 MB, servo driver through the power line and the encoder integrated line control servo motor operation, to achieve high speed and high precision motion control | |
|
Adopt the
France SCHNEIDER
touch screen man-machine interface control system, operating at a glance.
|
|
| Germany (Lenze) servo motor driver, motion controller through more than 100 MB, servo driver through the power line and the encoder integrated line control servo motor operation, to achieve high speed and high precision motion control. | |
| The use of American(EATON) low-voltage electrical equipment, a strong guarantee for the long-term use of electrical equipment to ensure high speed operation of the machine is not stable. | |
|
Using the German (sick) color photoelectric tracking, precise tracking of paper printing photo, automatic alignment, if change the paper roll, power does not need to adjust the cutting position. Automatic stop if color error ,reduce |
