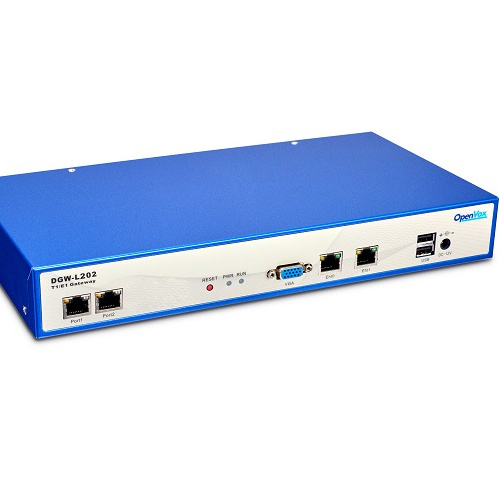

OpenVox DGW-L202 Series 2 Channel E1/T1/PRI VoIP Gateway

OpenVox DGW-L202 Series 2 Channel E1/T1/PRI VoIP Gateway

FOB Reference Price: Get Latest Price

≥1 Pieces

US $799

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Name:: OpenVox DGW-L20X Series E1/T1/PRI VoIP Gateway

OpenVox DGW-L20X T1/E1 Gateway:: Open source asterisk-based VoIP Gateway solution

VoIP Gateway:: VoIP Gateway for operators and call centers

T1/E1/PRI interface:: 1/2/4 software-selectable T1/E1/PRI interface

Concurrent calls:: Up to 120 concurrent calls

Quick Details

Type:: E1/T1/PRI VoIP Gateway

Brand Name:: OpenVox

Model Number:: DGW-L202

Place of Origin:: China

Name:: OpenVox DGW-L20X Series E1/T1/PRI VoIP Gateway

OpenVox DGW-L20X T1/E1 Gateway:: Open source asterisk-based VoIP Gateway solution

VoIP Gateway:: VoIP Gateway for operators and call centers

T1/E1/PRI interface:: 1/2/4 software-selectable T1/E1/PRI interface

Concurrent calls:: Up to 120 concurrent calls

OpenVox DGW-L20X Series E1/T1/PRI VoIP Gateway

Product Description

Supports 1/2/4 software-selectable T1/E1/PRI interface;

Supports up to 120 concurrent calls.

Features

Features
System Features
- Available in 1/2/4 port T1/E1,up to 120 energy efficiency concurrent processing
- Signalling: PRI/R2/SS7
- Support up to 24 countries’ standard R2 signalling
- Support new R2 variant
- Simple and convenient configuration via Web GUI
- Codecs support: G.711A, G.711U, G.729A, G.723.1, G.722, GSM
- Support protocols:SIP,IAX,TCP,UDP,RTP,SSH,HTTP,HTTPS
- Support NTP time synchronization and client time synchronization
- Support SSH access for background management, Asterisk CLI command operation
- Open API interface (AMI)
- Support ports group management
- Support for custom dialplans
- Firmware update by HTTP
- Support call statistics
- Support auto provision
- Support channel status show dynamically
- Support backup/upload configuration file
- Multiple detailed log output
- Support Chinese language
- Automatically reboot
- Good compatibility, support Asterisk, Elastix, Freeswitch and Small and medium IPPBX platform
- Available for OEM
- 3-month “No Question Asked” Return Policy, and Two-year Warranty
SIP Features
- Support add, modify & delete SIP Accounts
- SIP registration with Domain
- Support multiple SIP registrations: Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint
- SIP accounts can be registered to multiple servers
- Combine different SIP Trunks into group
- SIP(RFC3261) compliance
- DTMF: RFC2833, SIP INFO, INBAND
- Support T.38 /Pass-through Fax
Routing
- Flexible routing settings
- Support 512 routing
- Support caller/callee manipulation and filtering
- Trunk group support, Trunk priority management
- Support add, modify & delete routing
- E1/T1 port grouping
- Support Failover
Network Features
- Network type: Static IP and DHCP
- IPv4, UDP/TCP, DHCP, TFTP, SCP
- HTTP/HTTPS/SSH
- Support DDNS
- Support ping & traceroute command on the web
- Support network capture on the web

Specifications

Specifications
OpenVox DGW-L20X T1/E1 Gateway is an open source asterisk-based VoIP Gateway solution for operators and call centers. It is a converged media gateway product. This kind of gateway connects traditional telephone system to IP networks and integrates VoIP PBX with the ISDN seamlessly. With friendly GUI, users may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

The DGW-L20X T1/E1 Gateway supports 1/2/4 software-selectable T1/E1/PRI interface and supports up to 120 concurrent calls.
Target Applications
- Connect legacy PBX systems to low-cost VoIP services
- Connect legacy PBX systems to remote sites over private VoIP links
- Connect IP PBX systems to legacy TDM services
- Phased transition from legacy PBX to IP PBX
- Connect virtualized systems to legacy TDM services
- Transcoding by connecting systems using varying codecs
- Lync connectivity to SIP or legacy TDM providers and SIP or Legacy PBX
Technical Specifications
- 1/2/4 T1/E1 RJ-48
- 2 10/100/1000Mbps Ethernet ports
- 2 USB 2.0 ports
- Maximum Power Consumption: 18W
- Power supply specification: 100-240V/AC
- Operation humidity: 5%~95% non-condensing
- Operating temperature: 0℃~70℃
- Storage temperature: -40℃~85℃
