Quick Details
-
Model Number:
-
ZL-5017
-
Name:
-
ASTM E96 Water Vapor Transmission Rate Test, WVTR Testing Machine
-
Testing box temp. control range:
-
20~45℃
-
Accuracy:
-
±0.5℃
-
Testing box humidity control:
-
40%RH~95%RH±2%RH
-
Testing box humidification:
-
≥300ml/h
-
Testing time:
-
1min~999h59min
-
Circulating air speed:
-
0.02~1.5m/s
-
Power supply:
-
AC 220V±10% 50Hz 120W
-
Weight:
-
100Kg
-
Warranty:
-
24 months
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZL
-
Model Number:
-
ZL-5017
-
Name:
-
ASTM E96 Water Vapor Transmission Rate Test, WVTR Testing Machine
-
Testing box temp. control range:
-
20~45℃
-
Accuracy:
-
±0.5℃
-
Testing box humidity control:
-
40%RH~95%RH±2%RH
-
Testing box humidification:
-
≥300ml/h
-
Testing time:
-
1min~999h59min
-
Circulating air speed:
-
0.02~1.5m/s
-
Power supply:
-
AC 220V±10% 50Hz 120W
-
Weight:
-
100Kg
-
Warranty:
-
24 months

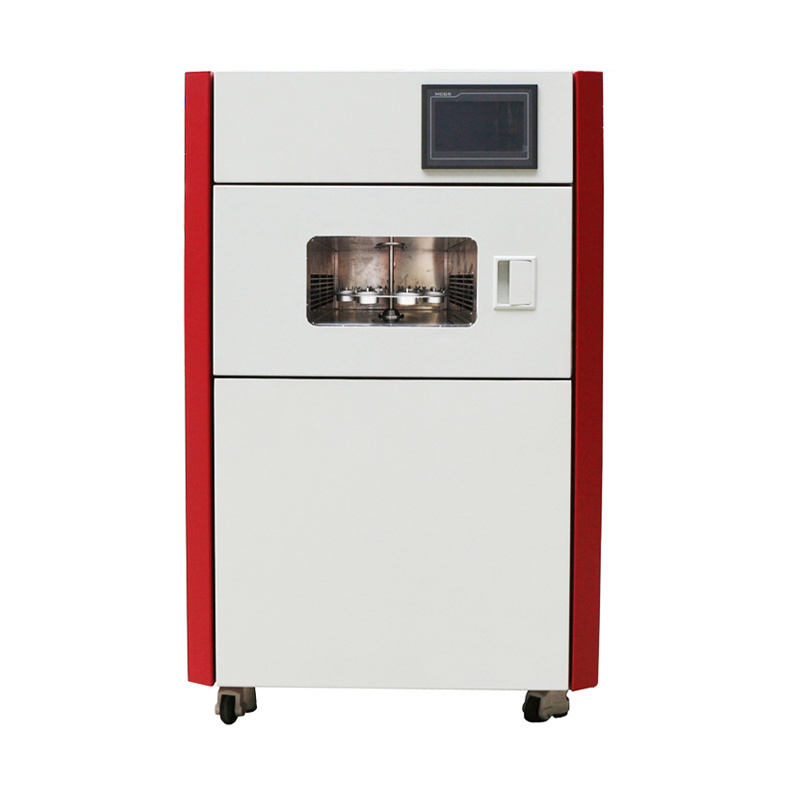

ASTM E96 Water Vapor Transmission Rate Test, WVTR Testing Machine
Applicable Range
:
Used for testing the moisture permeability of all kinds of fabrics, including moisture-permeable coated fabrics and nonwoven fabrics.
Relevant Standards
:
GB/T12704 ASTM E96 JIS L1099 BS 7209
Instrument characteristics
:
1.Integrated structure of Baking box and constant temperature and humidity box
2.Computer controlled, LCD Chineese menu operation
3.Flow cycle wind speed 0.02-1.5m/s, digital set
4.Imported high-precision temperature and humidity sensor, imported motor driver, ceramic pipe heating
Technical parameters
:
|
Working pattern |
Computer control, LCD Chinese menu operation,testing environment monitoring |
|
Testing box temp. control range |
20~ 45℃;distinguishability 0.1℃ |
|
Testing box temp. control accuracy |
±0.5℃ |
|
Testing box humidity control |
40%RH~ 95%RH±2%RH |
|
Testing box humidification |
≥300ml/h |
|
Drying box temp.control range |
interior temp.~ 199℃ |
|
Testing time |
1min~ 999h59min |
|
Circulating air speed |
0.02~ 1.5m/s |
|
Permeability area |
2827mm 2 ( 60mmGB ) optional 3848mm 2 ( 70mmASTM ) |
|
Number of moisture permeability cups |
6 pieces |
|
Drying box size |
490 * 400 * 215mm |
|
Power source |
AC220V 50Hz 4kW |
|
External dimension |
720 * 560 * 1570mm |
|
Weight |
100kg |
ABOUT US
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.
Throughout its more than 13 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 80 countries these years,especially favored by European and American countries.
Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
Click here >>>> More Factory Prices and Shipping !!!
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
