Easy operating need no training.
★
Fast welding speed, 2~10 times faster than traditional welding.
★
Welding seam beautiful smooth and beautiful, don’t need polish, save your time.
★
No deformation or welding scar, firm welding of the workpiece.
★
Laser welding has less consumables and long service life.
★
Safer, more environmentally friendly.
★
The advantage of laser welding is that the thickness of the thin plate is less than 3mm.
★
The welding volume is relatively large, suitable for the production line is 6-8 hours a day.
★
It is convenient to use and has a longer service cycle.
★
The replacement rate is small, which greatly saves labor costs, maintenance costs and equipment costs.
★
The machine has wheels, easy to move anywhere in factory you need
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zclaser
-
Single Pulse Energy:
-
100
-
Pulse Width:
-
120
-
Wavelength:
-
1080nm
-
Focal Spot Diameter:
-
5
-
Dimensions:
-
115*60*105cm
-
Weight (KG):
-
180 KG
-
Marketing Type:
-
New 2023
-
Core Components:
-
laser source
-
Product name:
-
Metal Fiber Laser Welding Machine
-
Power:
-
1000w/1500w/2000w/3000w
-
Wave Length:
-
1080nm
-
Fiber Length:
-
8-10 m
-
Work:
-
Continuous/modulation
-
Cooling:
-
By water chiller
-
Welding Material::
-
Carbon steel/aluminum/metal
-
Working Process:
-
Single Arc Double Wire
-
Product Air:
-
Inert gas
-
Laser head:
-
3 IN 1
Quick Details
-
Max. Output Power:
-
3000w
-
Usage:
-
metal welding
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zclaser
-
Single Pulse Energy:
-
100
-
Pulse Width:
-
120
-
Wavelength:
-
1080nm
-
Focal Spot Diameter:
-
5
-
Dimensions:
-
115*60*105cm
-
Weight (KG):
-
180 KG
-
Marketing Type:
-
New 2023
-
Core Components:
-
laser source
-
Product name:
-
Metal Fiber Laser Welding Machine
-
Power:
-
1000w/1500w/2000w/3000w
-
Wave Length:
-
1080nm
-
Fiber Length:
-
8-10 m
-
Work:
-
Continuous/modulation
-
Cooling:
-
By water chiller
-
Welding Material::
-
Carbon steel/aluminum/metal
-
Working Process:
-
Single Arc Double Wire
-
Product Air:
-
Inert gas
-
Laser head:
-
3 IN 1

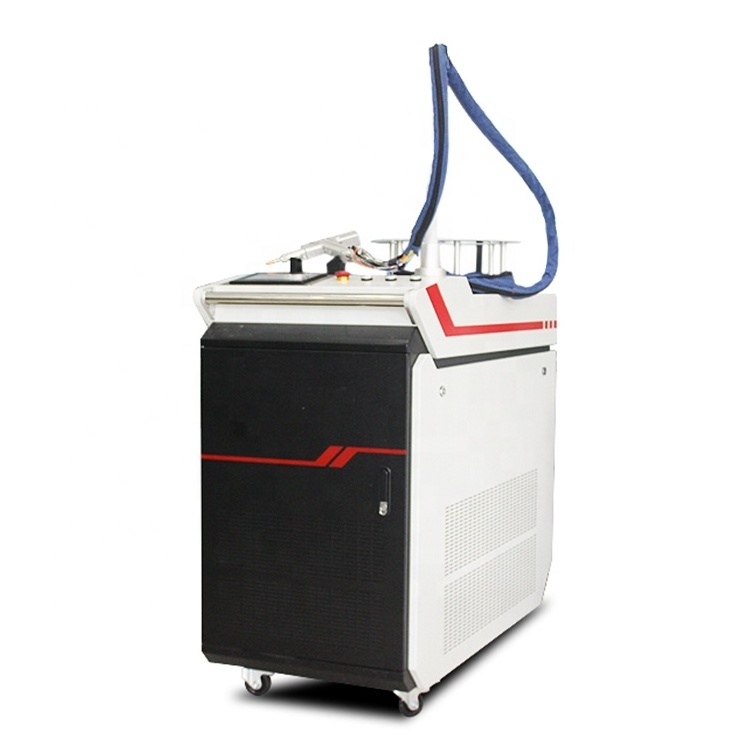

1000W 1500W 2000W 3000W Handheld Metal Laser Welding Cleaning Machine 4 in 1 laser Welder Cleaner Cutter
Inquiry Us : +86
18963092629
Products Description
★★★ Star Advantages
★★★
3 In 1 function fiber laser welding machine with high quality
Why You Choose A Laser Welding Machine Rather Than A Traditional One?
The hand-held laser welding machine
replaces
the previous fixed optical path with a hand-held welding gun. Hand-held welding is
flexible and convenient
, the welding distance is longer, and it overcomes the limitations of the workbench space.
Mainly for
large workpieces, fixed positions
such as inner right angle, outer right angle, flat surface welding, small heat affected area during welding, small deformation, large welding depth, and firm welding. It is a new and more flexible welding process for long-distance welding of large workpieces.
Specifications
|
Name
|
|
|
Automatic Laser Welding Machine
|
|
|||
|
Output Power
|
|
|
1000W / 1500W/2000W
|
|
|||
|
Usage
|
|
|
Metal Welding
|
|
|||
|
Pulse Width
|
|
|
0.5-20ms
|
|
|||
|
Fiber Length
|
|
|
8~10 Meters
|
|
|||
|
Wavelength
|
|
|
1064nm
|
|
|||
|
Cooling System
|
|
|
Water Cooling
|
|
|||
|
Laser Head Brand
|
|
|
Relfar
|
|
|||
|
Cooling Machine
|
|
|
S&A Water Chiller
|
|
|||
|
Laser Source
|
|
|
JPT / MAX/Reci
|
|
|||
|
Welding Mode
|
|
|
Manual Handheld
|
|
|||
Application
Application Material
Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials .
Application Industry
Household hardware, kitchenware and bathroom, stainless steel door handles, electronic components, sensors, clocks, fine machinery, communications, handicrafts and other industries, automotive hydraulic tappets and other industries with high strength
|
Stainless Steel
|
Laser Source（W）
|
Power（W）
|
Speed（mm/s）
|
Rate（kHz）
|
Focus（mm）
|
|
1mm
|
500
|
260
|
800
|
5
|
+2
|
|
1.5mm
|
500
|
340
|
750
|
5
|
+2
|
|
2mm
|
1000
|
600
|
800
|
5
|
+2
|
|
2.5mm
|
1000
|
730
|
700
|
5
|
+2
|
|
3mm
|
1000
|
860
|
720
|
5
|
+3
|
|
Aluminum
|
Laser Source（W）
|
Power（W）
|
Speed（mm/s）
|
Rate（kHz）
|
Focus（mm）
|
|
1mm
|
500
|
480
|
700
|
20
|
+1
|
|
1.5mm
|
1000
|
560
|
800
|
20
|
+1
|
|
2mm
|
1000
|
780
|
800
|
20
|
+2
|
|
2.5mm
|
1000
|
920
|
800
|
20
|
+2
|
|
3mm
|
1500
|
1150
|
800
|
20
|
+2
|
|
Brass
|
Laser Source（W）
|
Power（W）
|
Speed（mm/s）
|
Rate（kHz）
|
Focus（mm）
|
|
1mm
|
1000
|
900
|
600
|
30
|
+3
|
|
1.5mm
|
1500
|
1100
|
600
|
30
|
+4
|
|
2mm
|
1500
|
1350
|
500
|
30
|
+4
|
|
2.5mm
|
2000
|
1600
|
500
|
30
|
+5
|
|
3mm
|
2000
|
1850
|
500
|
30
|
+6
|
|
Carbon Steel
|
Laser source（W）
|
Power（W）
|
Speed（mm/s）
|
Rate（kHz）
|
Focus（mm）
|
|
1mm
|
500
|
300
|
500
|
20
|
0
|
|
1.5mm
|
500
|
370
|
500
|
20
|
0
|
|
2mm
|
500
|
480
|
600
|
20
|
+1
|
|
2.5mm
|
1000
|
600
|
600
|
20
|
+1
|
|
3mm
|
1000
|
760
|
700
|
20
|
+2
|
Shipping And Packing
1.For the outside, we adopt plywood case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by the waterproof plastic bag.
Ready to Delivery
1. The delivery lead time would be 7-10 working days after recieving the payment.
2. The customer can choose the shipping by sea, by air and even by international express such as FedEx, DHL, TNT, etc. We will send the cargo by reliable forwarder.
Our Service
After-Sales Service
①2 years warranty. (Not include consumable parts)
②Lifelong technical support online or by email.
③24 hours online service to help you use our machine well.
④Offer oversea service for training, installing, operating if necessary.
⑤Will offer you manual and operating producer when deliver the machine.
⑥Offer training at our factory for free (you could visit us and learn).
⑦We will supply the machine with training video and user's manual in English for installing, operation, maintenance to ensure customer could use our machine well.
③24 hours online service to help you use our machine well.
④Offer oversea service for training, installing, operating if necessary.
⑤Will offer you manual and operating producer when deliver the machine.
⑥Offer training at our factory for free (you could visit us and learn).
⑦We will supply the machine with training video and user's manual in English for installing, operation, maintenance to ensure customer could use our machine well.
Company Introduction
Jinan Zhancheng Automation Equipment Co., Ltd.
Is established in July 2003 ,owns more than 2000 square meters of researching and office space.All machines ,passed the European Union CE authentication,American certificate and are certified to ISO 9001. Products are sold to USA, South east Asia,Europe,Canada,Australia,Africa etc,more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
The industrialization of laser technology will effectively promote the upgrading of emerging industries such as manufacturing, energy saving, and environmental protection, and meet consumer demand for high-quality products and services. Our company has established a complete quality management and after-sales service system . We can provide customers with various technical support and after-sales services, and provide a complete set of laser processing solutions for domestic and foreign customers.
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Solve basic problem within 24 hours⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
FAQ
1. What is a fiber laser handheld welding machine and what can it do?
This is a new type of metal welding technology, which has low technical requirements for skilled workers. It only needs light grinding and polishing to produce exquisite effects, which is firm and reliable. It is another new welding method that reduces labor costs and increases production efficiency.
This is a new type of metal welding technology, which has low technical requirements for skilled workers. It only needs light grinding and polishing to produce exquisite effects, which is firm and reliable. It is another new welding method that reduces labor costs and increases production efficiency.
2. How big products can the fiber laser handheld welding machine weld?
Strictly speaking, the general fiber cable is 8-15 meters, and it can be welded within the diameter range.
3. What materials can the fiber laser handheld welding machine weld?
Fiber laser handheld welding machine can weld 0.4-5.0mm thick stainless steel, galvanized sheet, iron sheet, copper, aluminum and other metal materials
4. After using a handheld laser welding machine, how many skilled workers can one machine hold?
Our company has a number of patent certificates. The product has beautiful appearance, high stability and independent research and development ability. We can produce customized non-standard models according to customer requirements.
5. How long is the warranty for the handheld laser welding machine?
The laser has a two-year warranty, the whole machine has a one-year warranty and lifetime maintenance (Note: Consumables are not included)
Strictly speaking, the general fiber cable is 8-15 meters, and it can be welded within the diameter range.
3. What materials can the fiber laser handheld welding machine weld?
Fiber laser handheld welding machine can weld 0.4-5.0mm thick stainless steel, galvanized sheet, iron sheet, copper, aluminum and other metal materials
4. After using a handheld laser welding machine, how many skilled workers can one machine hold?
Our company has a number of patent certificates. The product has beautiful appearance, high stability and independent research and development ability. We can produce customized non-standard models according to customer requirements.
5. How long is the warranty for the handheld laser welding machine?
The laser has a two-year warranty, the whole machine has a one-year warranty and lifetime maintenance (Note: Consumables are not included)
