Quick Details
-
Max. Lifting Height:
-
3 meter, as required
-
Span:
-
6 meter, as required, 2-10m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maxloadc&h
-
Weight (KG):
-
1000 kg
-
Model:
-
BZK500KG
-
Max. Lifting Load:
-
625 kgs
-
Operating:
-
manual or electrical operated
-
Color:
-
Orange
-
After Warranty Service:
-
Online support
Quick Details
-
Application:
-
Workshop, material handling
-
Rated Loading Capacity:
-
500kg, 500 kgs
-
Rated Lifting Moment:
-
4900 N.m
-
Max. Lifting Height:
-
3 meter, as required
-
Span:
-
6 meter, as required, 2-10m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maxloadc&h
-
Weight (KG):
-
1000 kg
-
Model:
-
BZK500KG
-
Max. Lifting Load:
-
625 kgs
-
Operating:
-
manual or electrical operated
-
Color:
-
Orange
-
After Warranty Service:
-
Online support
Welcome to Shanghai Maxload Cranes & Hoists Co.,Ltd

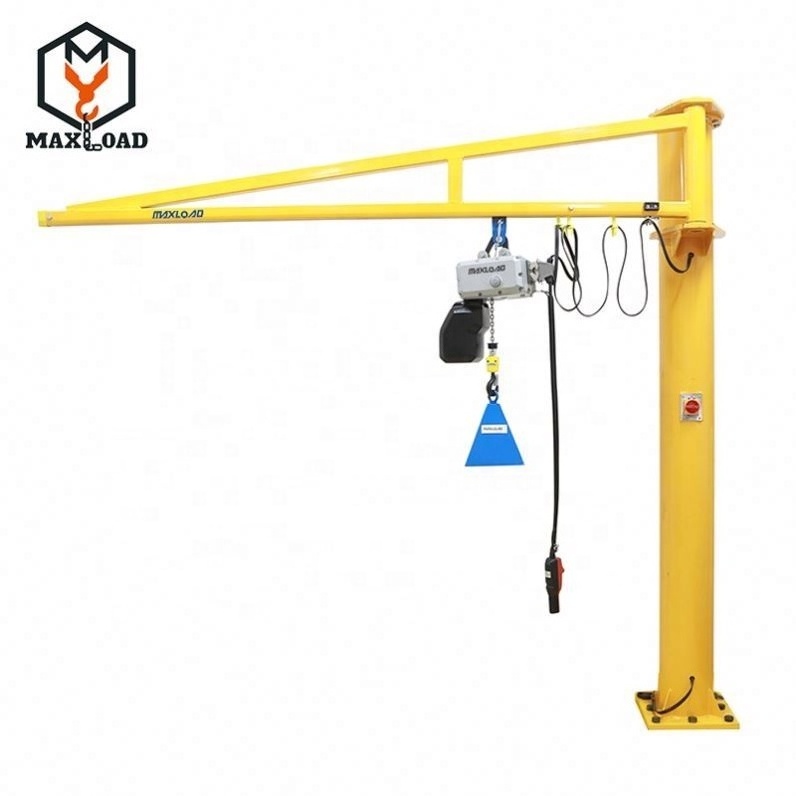

New Type BZ Model Column Style JIB Crane 500kg Design Drawing Made In Shanghai
JIB Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.
Specifications:
| Capacity(KG) | 125 KG | 250 KG | 500KG | 1000 KG |
| Model | BZK125KG | BZK250KG | BZK500KG | BZK1000KG |
| Beam Material | Enclosed Track | Enclosed Track | Enclosed Track | Enclosed Track |
| Travelling Type | Manual | Manual | Manual | Electrical or Manual |
| Revolving Type | Manual | Manual | Manual | Electrical or Manual |
| Revolving radius | 2m - 6m | 2m - 6m | 2m - 6m | 2m - 6m |
| Lifting Height | 2m - 5m | 2m - 5m | 2m - 5m | 2m - 5m |
| Total Height | 2m - 6m | 2m - 6m | 2m - 6m | 2m - 6m |
| Revolving Angle | 270° | 270° | 270° | 270° |
| Lifting Speeed | 8/2 m/min | 8/2 m/min | 8/2 m/min | 4/2 m/min |
