Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EKLASER
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
600*900*150mm
-
Weight (KG):
-
380
-

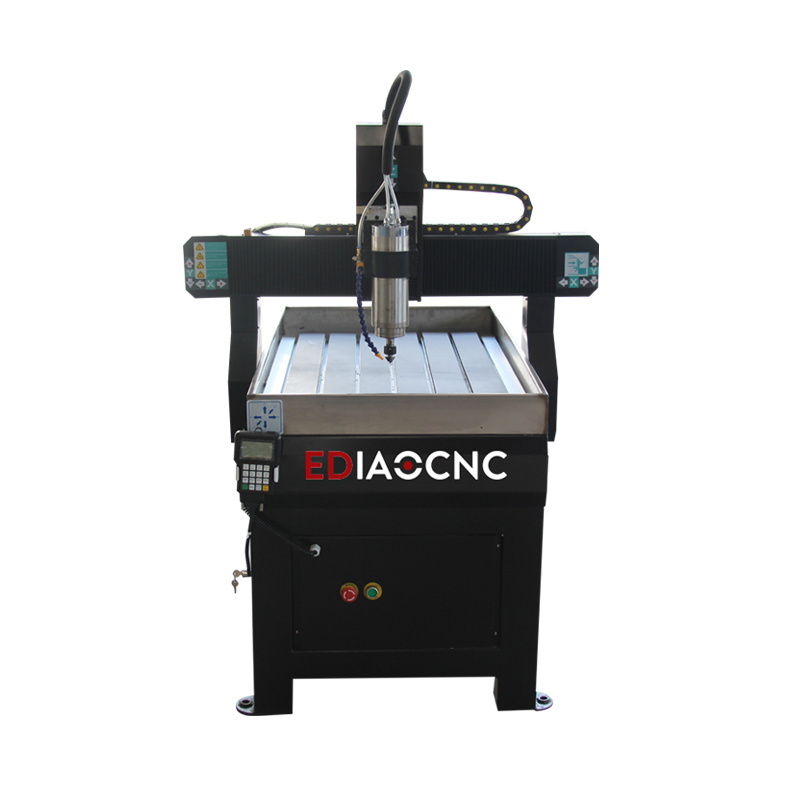

Product name:
-
CNC Wood Working Machine
-
Control system:
-
DSP
-
Working area:
-
900*600mm
-
Motor:
-
Leadshine Stepper Motor
-
Spindle:
-
Water Cooling Spindle
-
Spindle power:
-
4.5kw 6.0kw
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Weight:
-
380kg
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EKLASER
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
600*900*150mm
-
Weight (KG):
-
380
-
Product name:
-
CNC Wood Working Machine
-
Control system:
-
DSP
-
Working area:
-
900*600mm
-
Motor:
-
Leadshine Stepper Motor
-
Spindle:
-
Water Cooling Spindle
-
Spindle power:
-
4.5kw 6.0kw
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Weight:
-
380kg
1.Adopt imported square guide rail,double row slide block and the imported ball screw makes the machine working steadily,high precision and long life time.
2.With advanced DSP system,operated with the USB handle,convenient operation, humanization design.
3.Compatible with type3/artcam/castmate/proe/coreldraw/wentai and other cad/cam software.
4.Adopt high speed stepper motor and drivers and to motors for Y axis,max speed can reach to 35m/min,auto aligning system.
|
Model |
ED 6090 |
|
X,Y working area |
600×900mm |
|
Z working area |
150mm |
|
Spindle power |
4.5KW water cooled |
|
Control system |
NC-Studio/ DSP |
|
Transmission |
X Y rack transmission, Z-axis screw |
|
Max carving speed |
10m/min |
|
Resolution |
0.03mm |
|
Repeatability |
0.03mm |
|
Max feeding height |
150mm |
|
Command |
G code |
|
Surrounding for software |
Windows 2000/XP |
|
Power (not including spindle) |
300W |
|
work mode |
Step per motor |
|
Working table |
T-slot with water sink |
|
Spindle rotating speed |
0-24000rpm/min |
|
Work voltage |
AC220V/ 380V 50 -60Hz |
