Quick Details
-
Model Number:
-
HKS0401A30
-
Place of Origin:
-
China
-
Product name:
-
4k HDMI KVM
-
OEM/ODM:
-
YES
-
Warranty:
-
1 Years
-
Color:
-
Red Grey or customed
-
Data Rate:
-
10.2 Gbps
-
Function:
-
Support USB 2.0
-
Material:
-
Aluminum Alloy
-
Product Type:
-
KVM Switch Displayport
Quick Details
-
Monitor Connections:
-
1 Ports
-
Resolution:
-
4K 30
-
Brand Name:
-
TSmart
-
Model Number:
-
HKS0401A30
-
Place of Origin:
-
China
-
Product name:
-
4k HDMI KVM
-
OEM/ODM:
-
YES
-
Warranty:
-
1 Years
-
Color:
-
Red Grey or customed
-
Data Rate:
-
10.2 Gbps
-
Function:
-
Support USB 2.0
-
Material:
-
Aluminum Alloy
-
Product Type:
-
KVM Switch Displayport
Product Description
4x1 HDMI KVM Switcher
This 4x1 HDMI KVM Switcher provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Features：
⭐Using only 1 set of keyboard, mouse and monitor to control 4 host devices
⭐Support Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based systems
⭐Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
⭐Support auto switching among all devices so as to monitor the devices in a specified time interval
⭐Support keyboard hot keys to control KVM switch
⭐Available to use keyboard without any delay after switch host devices
⭐Support resolution up to 3840*2160@30Hz
⭐With extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to PC
⭐Support IR control, easy to control KVM by remote control
⭐With EDID emulators in each input port, keep PCs always having correct display information
⭐Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

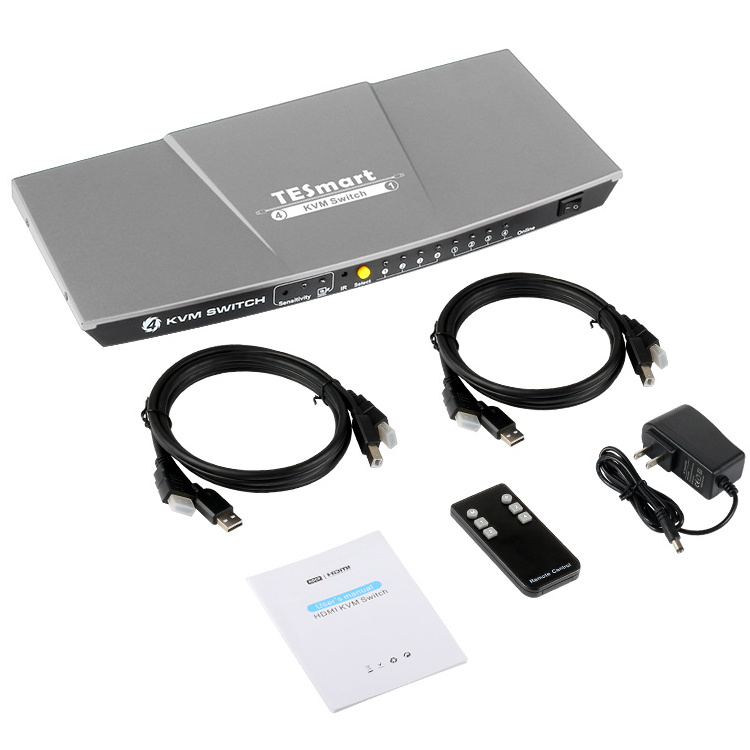

Packing list：
1 * 4x1 HDMI KVM Switcher
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
Specification
|
HKS0401A30
|
4x1 HDMI KVM Switcher
|
|
||
|
Functionality:
|
|
|
||
|
Auto Scan
|
Yes
|
|
||
|
Port selection
|
Front panel buttons
|
Yes
|
||
|
|
Keyboard hotkeys
|
Yes
|
||
|
|
IR remote control
|
Yes
|
||
|
|
Console commands
|
No
|
||
|
Technical:
|
|
|
||
|
Max. Resolution
|
3840x2160@30Hz
|
|
||
|
Auto to get EDID
|
Yes
|
|
||
|
Data rate
|
10.2 Gbps
|
|
||
|
Auto scan interval
|
5~254 Seconds
|
|
||
|
Beep Sound
|
On/Off
|
|
||
|
OSD
|
No
|
|
||
|
Supported OS
|
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
|
|
||
|
Console ports
|
Keyboard emulation
|
1 * USB Type A
|
||
|
|
Mouse emulation
|
1 * USB Type A
|
||
|
|
USB 2.0 Hub ports
|
1 * USB Type A
|
||
|
|
Video /Audio
|
1 * HDMI Type A
|
||
|
|
RS232
|
NA
|
||
|
|
LAN
|
NA
|
||
|
System ports
|
USB Data
|
4 * USB Type B
|
||
|
|
Video / Audio
|
4 * HDMI Type A
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Mechanical:
|
|
|
||
|
Chasing material
|
Aluminum Alloy
|
|
||
|
Product
|
Dimension
|
302 (L) x 120 (W) x 30 (H) mm
|
||
|
|
Weight
|
502g
|
||
|
Item
|
Dimension
|
338 (L) x 166 (W) x 90 (H) mm
|
||
|
|
Weight
|
1178g
|
||
|
Carton
|
Dimension
|
490 (L) x 360 (W) x 360 (H) mm
|
||
|
|
Quantity
|
10pcs
|
||
|
|
Total Weight
|
12.63kg
|
||
