Laboratory Battery Forced Internal Short Circuit Tester Machine Lithium Battery ISC Test Testing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Lith

Model Number:: LITH-FSCT

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Fujian, China

Brand Name:: Lith

Model Number:: LITH-FSCT

Product Description

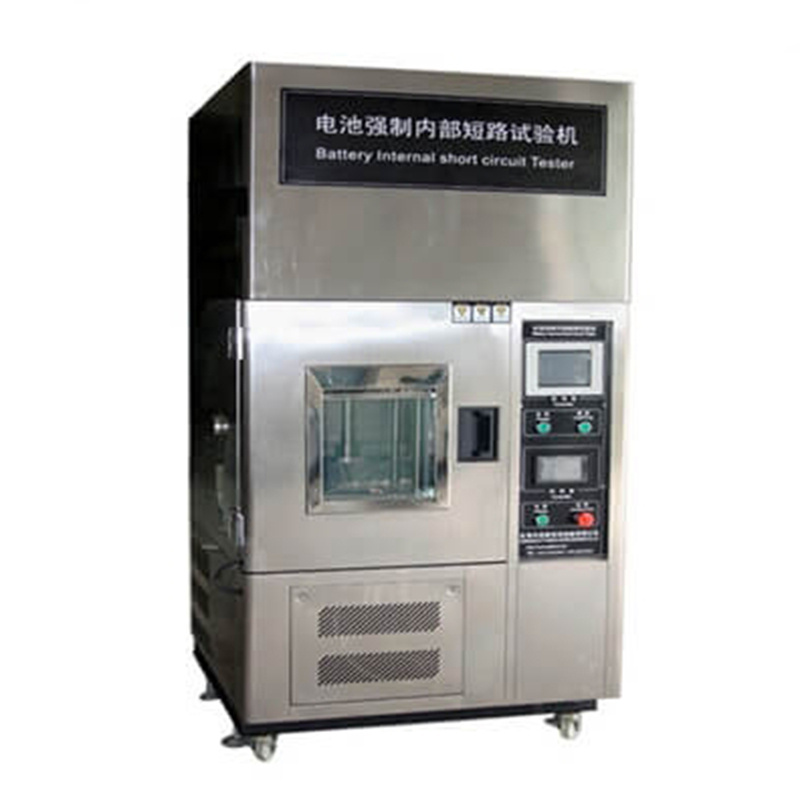

Laboratory Battery Forced Internal Short Circuit Tester Machine Lithium Battery ISC Test Testing Machine

Battery forced internal short circuit tester is a simulated battery under certain ambient temperature conditions for forced internal short circuit test, the test box for the stainless steel, the temperature uniformity, with exhaust function (that is, after the completion of the test exhaust emissions). Test machine control system for the PLC touch screen menu type operation, collecting data frequency up to 100 times / sec, while programming through the PLC set test pressure , pressure holding time, measured pressure, battery voltage, battery temperature, pressure drop speed.

Specifications

Model	LITH-FSCT
Temperature Range	0℃ ~ +100℃(Controllable)
Resolution	0.01℃
Temperature Fluctuation	± 0.5℃
Temperature Uniformity	± 2.0℃
Max. Low Temperature	-5℃
Temperature Rising Rate	Ave.3℃/min(0℃ to 100℃,Nonlinear No-load)
Temperature Cooling Rate	Ave.1℃/min(100℃to 0℃,Nonlinear No-load)
Inner Chamber Dimension	400500500mm(WDH)
Safety Device	First over temperature alarm, MCCB overload protection, etc.
Resolution	1/10000
Force Accuracy	≤0.5%
Displacement Resolution	1/1000
Displacement Accuracy	≤0.5%
Speed Range	0.01-20MM/S
Effective Range	0 ~ 150mm
Inner Chamber Material	Mirror stainless steel with bottom reinforcement
Outer Chamber Material	Stainless steel matte line treatment; Insulation material: rigid polyurethane foam + high efficiency compressed glass wool.
Heater	Finned heat pipe shaped stainless steel electric heater; Air supply circulation system: convection air supply circulation system.
Protection Device	No fuse switch, over temperature protection switch, fuse, front open tempered glass observation window, installed explosion-proof lock.
