The equipment adopts integrated industrial design, simple and hidden appearance, strong environmental adaptability, flexible deployment mode, and can be mounted on board or fixed type.
- Product Details
- {{item.text}}
Quick Details
-
Model:
-
SRD-UAVD2-OSJ
-
Function:
-
Automatic detection of drones, automatic alarm, unattended
-
Detection method:
-
Radio spectrum detection (passive)
-
Detection frequency:
-
2.4GHz & 5.8GHz dual frequency
-
Detection distance:
-
1-5KM
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SRD
-
Product name:
-
UAV detector
-
Model:
-
SRD-UAVD2-OSJ
-
Function:
-
Automatic detection of drones, automatic alarm, unattended
-
Detection method:
-
Radio spectrum detection (passive)
-
Detection frequency:
-
2.4GHz & 5.8GHz dual frequency
-
Detection distance:
-
1-5KM
1、Overview

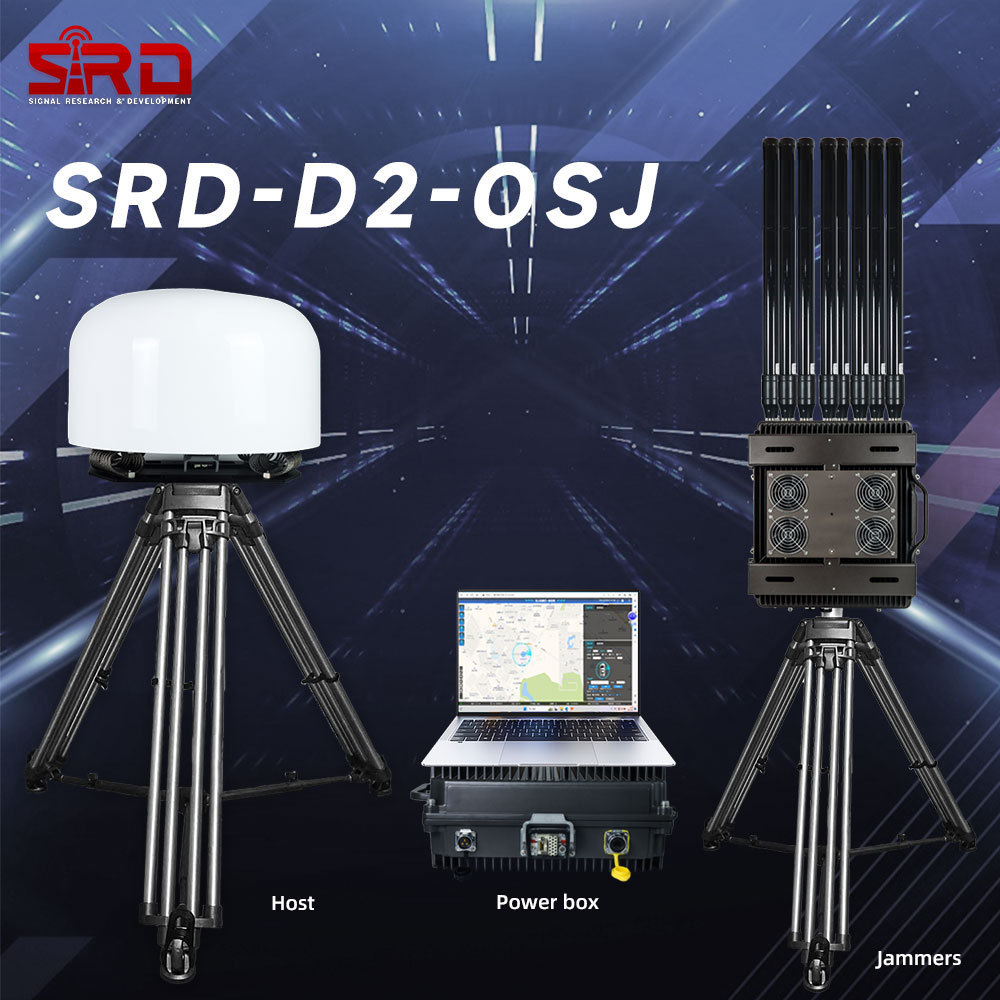

D2-OSJ vehicle-mounted UAV detection and control equipment integrates detection, positioning, and can realize the detection, identification, positioning, tracking and disposal of UAV.
Product Description
2、
Product Features
UAV positioning: can locate the position information of DJI series UAV, real-time display of UAV position (latitude and longitude), orientation, distance information (the distance relative to the position of the equipment), speed, height, etc.;
Pilot positioning: can position the pilot position information of DJI UAV, real-time display of the pilot (remote control) position (latitude and longitude), orientation, distance information (the distance of the pilot relative to the position of the equipment);
|
No.
|
Index
|
Parameter
|
remarks
|
|
1
|
Detection and identify UAV type
|
DJI, Autel, Dahua, Yuneel and other common brands of UAV and other self-made FPV, WiFi machine and other most models on the market
|
|
|
2
|
Positioning drone
type |
DJI, Air, Mini, FPV, Avata, series, etc
|
|
|
3
|
Detection frequency
|
100MH z ~6GH z
|
|
|
4
|
Detection location distance
|
|
Depending on the environment
|
|
5
|
Detection height
|
0m~1000m
|
|
|
6
|
Number of targets can be detected simultaneously
|
≥10
|
|
|
7
|
simultaneously track and display the trajectory of the drone
|
≥5
|
|
|
8
|
azimuth error
|
≤1°(RMS)
|
|
|
9
|
positioning accuracy
|
≤10m
|
|
|
10
|
Probe success rate
|
≥99%
|
|
|
11
|
Identify response times
|
≤3s
|
|
