Quick Details
-
Brand Name:
-
Jvler
-
Model Number:
-
MP-100
-
Material:
-
Aluminum Alloy, SS304/316/PP/PTFE
-
Output signal:
-
SPDT/SPST
-
Measuring Range:
-
1000-6000mm
-
Measuring rod diameter:
-
8-22mm
-
Process connection:
-
Thread /Flange
-
Working temperature:
-
-20~200°C
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jvler
-
Model Number:
-
MP-100
-
Material:
-
Aluminum Alloy, SS304/316/PP/PTFE
-
Output signal:
-
SPDT/SPST
-
Measuring Range:
-
1000-6000mm
-
Measuring rod diameter:
-
8-22mm
-
Process connection:
-
Thread /Flange
-
Working temperature:
-
-20~200°C
Product Description

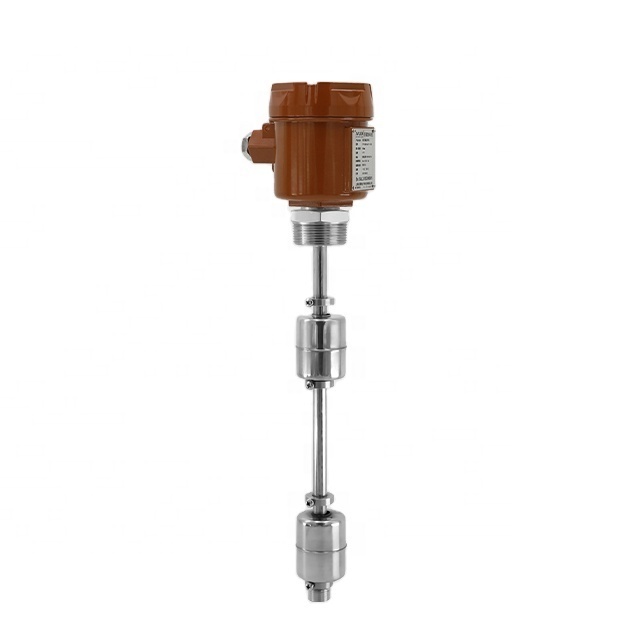

MP series connecting rod float level switch is a kind of simple structure, easy to use and install level controller. It has no complex circuit, will not be disturbed, the use of magnetic spring switch does not need to provide power supply can work and contact life is 100 times, PP, PTFE, SUS304, sUS316L and other materials for choice, can meet the liquid measurement in most environments. Typical applications are shipbuilding industry, power generation, petrochemical, food industry, water treatment, hydraulic machinery and so on.
Product working Principle
MP series connecting rod float ball level switch is in a closed stainless steel or plastic tube, fixed one or more magnetic spring switch, and then fixed ring fixed the float ball on the tube and the position related to the magnetic switch, so that the float ball floating in a certain range. The magnet in the float ball is used to attract the contact of the magnetic spring switch, and the product is disconnected and switched on to control the liquid level.
Features
Can be used for multi-point control, control switch position can be customized;
All switches are routed in the same junction box for easy wiring;
The protection grade of junction box is above IP65;
Adjustable delay output 0~30 seconds,
The magnetic spring switch is completely isolated from the wire and liquid, so it can be used safely on the equipment with high temperature and high pressure.
Specification
|
Material
|
SS304/316/PP/PTFE
|
|
Output signal
|
SPDT/SPST
|
|
Measuring Range
|
1000-6000mm
|
|
Measuring rod diameter
|
8-22mm
|
|
Process connection
|
Thread /Flange
|
|
Working temperature
|
-20~200°C
|
