Quick Details
-
Brand Name:
-
wenzhan
-
Weight:
-
760, 760kg
-
Product name:
-
SMT Line machine pcb Three-Axis conformal coating
-
brand:
-
wenzhan
-
model:
-
460T,460F,460S,1500,2000
-
Quality:
-
top
-
Frame size:
-
L1060mm*W1200mm*H1700mm
-
Transportation speed:
-
Max 300mm/s
-
package:
-
wooden box
-
delivery:
-
dhl ,ups, fedex you order
-
Application:
-
SMD Production Line
Quick Details
-
Marketing Type:
-
New Product
-
Core Components:
-
selective conformal coating machine
-
Place of Origin:
-
China
-
Brand Name:
-
wenzhan
-
Weight:
-
760, 760kg
-
Product name:
-
SMT Line machine pcb Three-Axis conformal coating
-
brand:
-
wenzhan
-
model:
-
460T,460F,460S,1500,2000
-
Quality:
-
top
-
Frame size:
-
L1060mm*W1200mm*H1700mm
-
Transportation speed:
-
Max 300mm/s
-
package:
-
wooden box
-
delivery:
-
dhl ,ups, fedex you order
-
Application:
-
SMD Production Line
Product Description

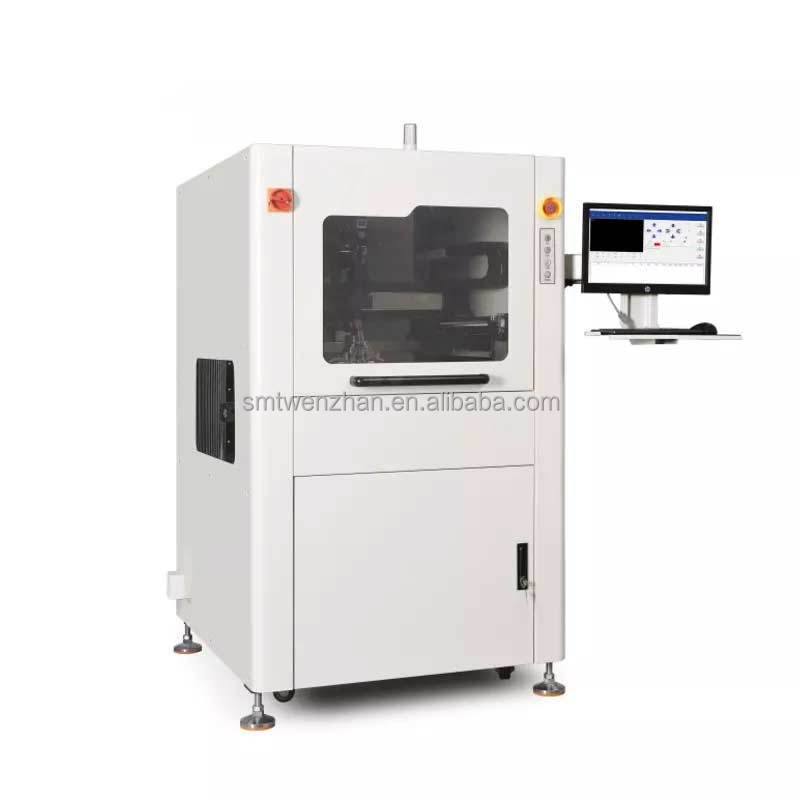

High accuracy automated SMT Line machine pcb Three-Axis selective conformal coating inspection spray equipment machine
The equipment is controlled by industrial computer + motion control card Servo motor + ball screw are used for x.y.z. three axes for repeated positioning Accuracy ± 0.02mm can automatically eliminate errors Automatic pressing plate function of equipment track to isolate the contact between glue and transport chain The standard automatic immersion and liquid dispensing device of the valve body can avoid the blockage of the valve body, Convenient and fast maintenance online track design allows online connection with other equipment parameters such as nozzle moving speed, moving distance and nozzle height can be set to meet different types of spraying requirements. Standard precision valve, which can realize high-efficiency panel spraying, and is suitable for spraying products with various difficult processes
The equipment is controlled by industrial computer + motion control card Servo motor + ball screw are used for x.y.z. three axes for repeated positioning Accuracy ± 0.02mm can automatically eliminate errors Automatic pressing plate function of equipment track to isolate the contact between glue and transport chain The standard automatic immersion and liquid dispensing device of the valve body can avoid the blockage of the valve body, Convenient and fast maintenance online track design allows online connection with other equipment parameters such as nozzle moving speed, moving distance and nozzle height can be set to meet different types of spraying requirements. Standard precision valve, which can realize high-efficiency panel spraying, and is suitable for spraying products with various difficult processes
|
Frame size
|
L1060mm*W1200mm*H1700mm
|
|
Weight
|
760kg
|
|
Method of control
|
Industrial computer + motion control card
|
|
Programmatically
|
Manual teaching
|
|
Run the software
|
Coating Machine Intelligent Selective Control Software
|
|
PCB Transmission height
|
900±20mm
|
|
Transportation speed
|
Max 300mm/s
|
|
Transmission direction
|
Left → right
|
|
transfer method
|
Stainless steel chain + stepper motor
|
|
PCB Width range
|
50-450mm
|
|
Method of width
|
Stepping motor automatically adjusts the width
|
|
X,Y Shaft drive mode
|
Servo motor + high-precision screw module
|
|
X,Y Maximum operating speed
of shaft |
1000mm/s |
|
X.Y Axis positioning accuracy
|
0.02 mm
|
|
Z Maximum operating speed of
shaft |
500mm/s |
|
Z Shaft drive
|
Servo motor + high-precision screw module
|
|
Z Axis positioning accuracy
|
0.02 mm
|
|
Valve up and down
|
Slide cylinder
|
|
Number of valves
|
2 pcs
|
|
Valve type
|
Cone valve/needle atomization valve
|
|
PCB Board size
|
MAX W50mm*L460mm
|
|
PCB Board component height
|
MAX 100mm
|
|
Coating width
|
1-30mm(According to the type of valve)
|
|
Tank volume
|
10L Glue supply pressure tank
|
|
Cleaning bucket
|
500mL
|
|
Cleaning function
|
The equipment comes with cleaning function
|
|
Lighting part
|
The equipment comes with white light and purple light
|
|
power supply
|
AC220V
|
|
Gas source
|
≥0.4MP
|
|
Total power
|
2.5KW
|
|
Automatic cleaning device
|
Standard
|
|
Barcode scanning function
|
Optional
|
|
CCD Visual positioning
|
Optiona
|
Specification
|
Applicable Industries
|
Manufacturing Plant
|
|
Showroom Location
|
United States, France, Germany
|
|
Marketing Type
|
New Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
selective conformal coating machine
|
|
Place of Origin
|
China
|
|
Brand Name
|
wenzhan
|
|
Weight
|
760
|
|
Warranty
|
1 Year
|
|
Product name
|
SMT Line machine pcb Three-Axis conformal coating
|
|
brand
|
wenzhan
|
|
model
|
460T,460F,460S,1500,2000
|
|
Quality
|
top
|
|
Weight
|
760kg
|
|
Frame size
|
L1060mm*W1200mm*H1700mm
|
|
Transportation speed
|
Max 300mm/s
|
|
package
|
wooden box
|
|
delivery
|
dhl ,ups, fedex you order
|
|
Application
|
SMD Production Line
|
Packing & Delivery
1.wooden case
2.As your order
