Quick Details
-
Model Number:
-
DSN60000
-
Application:
-
Heat dissipation
-
Product name:
-
Graphite sheet
-
Material:
-
High Pure Graphite
-
Thickness:
-
0.03 ~ 5mm
-
Thermal conductivity (X-Y-axis):
-
100 ~500w/mk
-
Density:
-
>1g/cm3
-
Color:
-
Black Gray
-
Shape:
-
Shape Requested
-
Size:
-
Size Requested
-
MOQ:
-
1SQM
Quick Details
-
C Content (%):
-
99.2%~99.5%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
DSN
-
Model Number:
-
DSN60000
-
Application:
-
Heat dissipation
-
Product name:
-
Graphite sheet
-
Material:
-
High Pure Graphite
-
Thickness:
-
0.03 ~ 5mm
-
Thermal conductivity (X-Y-axis):
-
100 ~500w/mk
-
Density:
-
>1g/cm3
-
Color:
-
Black Gray
-
Shape:
-
Shape Requested
-
Size:
-
Size Requested
-
MOQ:
-
1SQM
Product Description
|
Product Name
|
Graphite sheet
|
|
Material
|
99.2%~99.5%
|
|
Function
|
Heat dissipation
|
|
Package
|
According to customer requirements
|

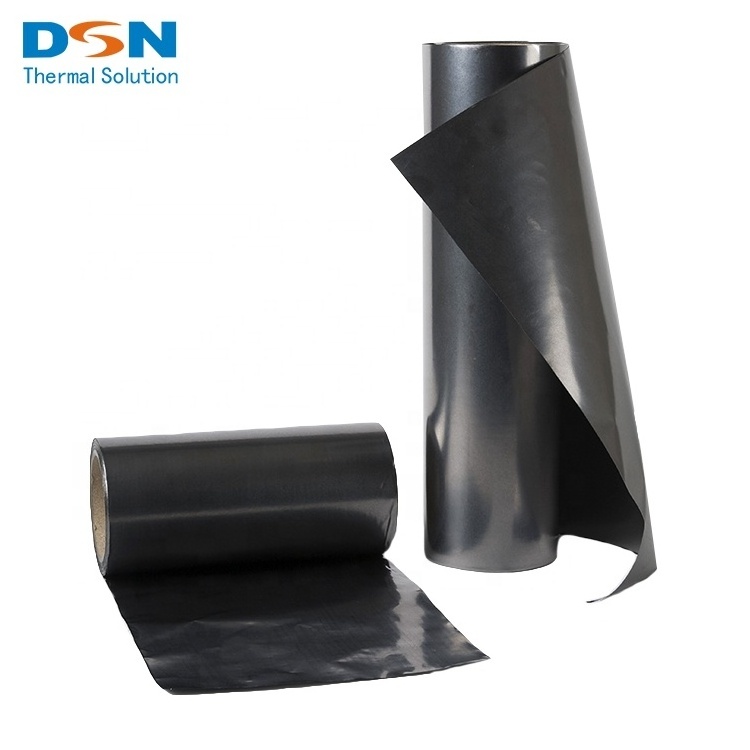

1mm thickness graphite sheet of 1mm graphite grafoil
Graphite sheet
is sintered with flake graphite and earthy graphite, and its carbon content reaches 99.2% ~ 99.5%. Oriented film: Graphite film using advanced technology to make high-purity graphite materials to regular orientation structure
Parameters of graphene sheet
The thickness of graphite sheet is between 0.03mm ~ 5mm, and some parameters as below for your reference:
|
TYPE
|
DSN60030
|
DSN60050
|
DSN60080
|
DSN60100
|
DSN60130
|
DSN60150
|
|
Carbon Content
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
|
Color
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
|
Thickness (mm)
|
0.03
|
0.05
|
0.08
|
0.1
|
0.13
|
0.15
|
|
Thickness Tolerance (mm)
|
±0.005
|
±0.005
|
±0.01
|
±0.02
|
±0.02
|
±0.03
|
|
Density (g/cm³)
|
1.5±0.1
|
1.5±0.1
|
1.5±0.1
|
1.4±0.1
|
1.3±0.1
|
1.3±0.1
|
|
Hardness (shore A)
|
85
|
85
|
85
|
85
|
85
|
85
|
|
Tensile Strength (psi)
|
650
|
650
|
650
|
650
|
650
|
650
|
|
UL Flammability Rating
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
|
Temperature Range
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
|
Thermal Conductivity
(X-Y axis) |
400-500 W/m.K
|
400-500 W/m.K
|
350-450 W/m.K
|
300-400 W/m.K
|
300-400 W/m.K
|
250-350 W/m.K
|
|
Thermal Conductivity (Z axis)
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
|
Thermal Resistance @100pis
|
0.07℃-in²/w
|
0.08℃-in²/w
|
0.9℃-in²/w
|
0.1℃-in²/w
|
0.16℃-in²/w
|
0.2℃-in²/w
|
|
@681pis
|
0.42℃-in²/w
|
0.51℃-in²/w
|
0.57℃-in²/w
|
0.66℃-in²/w
|
0.95℃-in²/w
|
1.07℃-in²/w
|
|
Volume Resistivity
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
|
Outgassing TML
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
|
Outgassing CVCM
|
0.09%
|
0.09%
|
0.09%
|
0.09%
|
0.09%
|
0.09%
|
Parameters of natural graphite sheet - 2
|
TYPE
|
DSN60200
|
DSN60500
|
DSN60800
|
DSN61000
|
DSN62000
|
DSN63000
|
|
Carbon Content
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
99.2%~99.5%
|
|
Color
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
|
Thickness (mm)
|
0.2
|
0.5
|
0.8
|
1.0
|
2.0
|
3.0
|
|
Thickness Tolerance (mm)
|
±0.03
|
±0.05
|
±0.08
|
±0.1
|
±0.15
|
±0.15
|
|
Density (g/cm³)
|
1.2±0.1
|
1.1±0.1
|
1.1±0.1
|
1.0±0.1
|
1.0±0.1
|
1.0±0.1
|
|
Hardness (shore A)
|
85
|
85
|
85
|
85
|
85
|
85
|
|
Tensile Strength (psi)
|
650
|
650
|
650
|
650
|
650
|
650
|
|
UL Flammability Rating
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
|
Temperature Range
|
-40℃ to 400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
|
Thermal Conductivity
(X-Y axis) |
250-350 W/m.K
|
250-350 W/m.K
|
200-300 W/m.K
|
100-200 W/m.K
|
100-200 W/m.K
|
100-200 W/m.K
|
|
Thermal Conductivity (Z axis)
|
7~10 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
|
Thermal Resistance @100pis
|
0.25℃-in²/w
|
0.37℃-in²/w
|
0.5℃-in²/w
|
0.6℃-in²/w
|
0.77℃-in²/w
|
0.73℃-in²/w
|
|
@681pis
|
1.16℃-cm²/w
|
1.3℃-cm²/w
|
1.58℃-cm²/w
|
1.7℃-cm²/w
|
1.93℃-cm²/w
|
1.88℃-cm²/w
|
|
Volume Resistivity
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
|
Outgassing TML
|
0.23%
|
0.23%
|
0.23%
|
0.23%
|
0.23%
|
0.23%
|
|
Outgassing CVCM
|
0.16%
|
0.16%
|
0.16%
|
0.16%
|
0.16%
|
0.16%
|
Details Images
* Excellent thermal conductivity: up to 500W/m·K
* Lightweight: Specific gravity: 0.87 to 1.6 g/cm3 (30% lighter than aluminum, 80% lighter than copper in the same size)
High precision measurement standard during processing period
Flexible and easy to be cut. (Withstands repeated bending)
Higher thermal conductivity than copper material
Product Usage
Graphite sheet
can be applied on Smartphone
Pyrolytic Graphite Sheet (PGS) can deliver the heat, which is generated by the CPU/Flash chip on Cell Phones’ mainboard PCB, evenly to the Cellddle metal steel bracket and framework. Meanwhile the heat from the high heat-making CPU chip can be spread throughout the plane of graphite sheet rapidly. The part hot spots are eliCellnated and the chip can be kept in appropriate temperature range to get the high performance.
Graphite sheet
can be applied on Computer
The thermal and electrical properties of graphite sheet have very significant anisotropic properties. The diaphragm structure prepared by special process can obtain XY plane up to 1800W/MK thermal conductivity, Z-axis vertical thermal conductivity 20-30W/MK, which is common copper aluminum foil. 4-6 times, for notebooks, tablets and other products that require strict design space, the heat dissipation problem is the core.
Other
Applications
Packaging & Shipping
Graphite Sheet Packaging:
1. PET film covered--protection
2. Use paper card to separate each layer.
3. Standard export carton or customized.
4. Marked with customer's information or customized.
5. QC Department will check in case the packing method isn't safe enough.
Graphite Sheet Shipping:
1. By courier, like DHL, UPS, FEDEX, etc. It is door to door, usually it takes 3-5 days to arrive at destination.
2. By air to the airport, usually 5-7 days.
3. By shipping, usually, it will spend 15-30 days to arrive at customer factory.
1. By courier, like DHL, UPS, FEDEX, etc. It is door to door, usually it takes 3-5 days to arrive at destination.
2. By air to the airport, usually 5-7 days.
3. By shipping, usually, it will spend 15-30 days to arrive at customer factory.
Company Introduction
DASEN is a high-tech enterprise engaged in R&D, production and sales of pyrolytic graphite, specialties graphite, die-cutting, silicone pad and plate ceramic membranes. The pyrolytic graphite factory is in Jiangxi; the specialties graphite is in Shandong; the silicone pad factory is in Jiangsu, and the ceramic membrane factory is in Anhui province. And the sales center is in Suzhou, Jiangsu.
Dasen Culture
Corporate vision: lead innovation and services, help customers create competitiveness.
Enterprise mission:
cultivate talents and make dedication
Business idea:
people-oriented, customer first, continuous creation, pursuit excellence.
Environmental policy:
full participation, compliance with laws and regulations, treasure resources.
Certifications
DSN adopt international authoritative quality system certification and safety system certification to ensure the quality and safety of customers. Such as:
ISO9001-2015, ISO14001-2015, IATF16949-2016, UL: QMFZ8.E490087, and many product patents.
Dasen Partners
Related Products
Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering. It is available with an adhesive backing on one side, which can significantly improve the thermal resistance.
Thermal conductive silicone pad is specially designed for the purpose of high performance thermal conductivity.
Pad standard size 400mm*200mm according to customer needs to cut the shapes. Basic thickness: 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm,
special size and thickness can be customized.
Graphene reinforced single component precuring heat conducting gel is applied to all kinds of components with low stress requirement to make the products have high reliability. The product is self-adhesive and easily assembled. Meanwhile, customers can automatically dispense glue according to their own process to improve production efficiency.
FAQ
Q1: Do you have MOQ?
A1: No MOQ for the standard product.
Q2: Do you provide samples?
A2: Yes, we do, and could delivery in 24 hours after confirmation for stock.
And we can offer free samples within one SQM. Just please pay the shipping fee.
Q3: Are you factory or trading company
?
A3: We are a professional manufacturer for over 10 years.
Q4: What is the lead time for mass production?
A4: The lead time of mass production is about 5 - 7 days.
Q5: What is your payment method?
A5: Accept TT, Paypal, West Union, L/C, ect.
Q6: Can you provide finished product processing service?
A6: Yes, we can provide the finished product after die-cutting.
