100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Explore More Products
- Product Details
- {{item.text}}

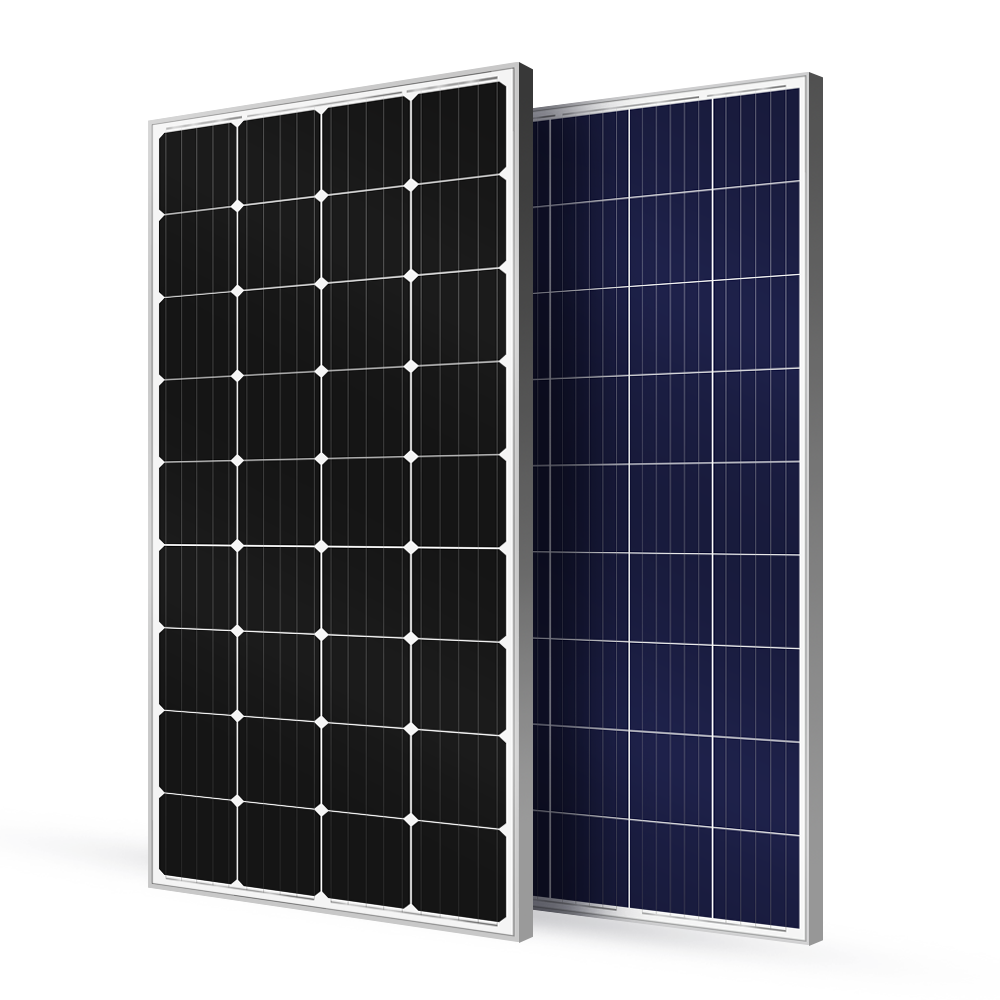

Quick Details
-
Warranty:
-
10
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP150M-36 SP150P-36
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1480 x 670 x 35 mm
-
Module:
-
50W Solar Panel Module
-
Solar Cells:
-
Monocrystalline
-
Cell Orientation:
-
36 cells
-
Weight:
-
10.8 kg
-
Glass:
-
3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass
-
Backsheet:
-
White
-
Frame:
-
Silver / Black Anodized Aluminium Alloy
-
Junction Box:
-
IP 68 rated
-
Cables:
-
4.0mm2
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
Customized solar panel, Customized Solar Panel
-
Panel Efficiency:
-
16.14%
-
Warranty:
-
10
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP150M-36 SP150P-36
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1480 x 670 x 35 mm
-
Module:
-
50W Solar Panel Module
-
Solar Cells:
-
Monocrystalline
-
Cell Orientation:
-
36 cells
-
Weight:
-
10.8 kg
-
Glass:
-
3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass
-
Backsheet:
-
White
-
Frame:
-
Silver / Black Anodized Aluminium Alloy
-
Junction Box:
-
IP 68 rated
-
Cables:
-
4.0mm2
Product Description
ELECTRICAL DATA(STC)
.
|
Module
|
SPxxxM-36 xxx = Peak Power Watts
|
|
|
|
|
||||
|
Peak Power Watts(Pmax/W)
|
160
|
165
|
170
|
175
|
180
|
||||
|
Power Output Tolerance(W)
|
0~+5
|
|
|
|
|
||||
|
Maximum Power Voltage(Vmp/V)
|
18.52
|
18.93
|
19.35
|
19.76
|
20.18
|
||||
|
Maximum Power Current(Imp/A)
|
8.64
|
8.71
|
8.79
|
8.85
|
8.92
|
||||
|
Open Circuit Voltage(Voc/V)
|
22.81
|
23.02
|
22.23
|
23.44
|
23.64
|
||||
|
Short Circuit Current(Isc/A)
|
9.28
|
9.41
|
9.47
|
9.51
|
9.59
|
||||
|
Module Efficiency(%)
|
16.14
|
16.64
|
17.14
|
17.65
|
18.15
|
||||
|
Module
|
SPxxxP-36 xxx = Peak Power Watts
|
|
|
|
|
||||
|
Peak Power Watts(Pmax/W)
|
150
|
155
|
160
|
165
|
170
|
||||
|
Power Output Tolerance(W)
|
0~+5
|
|
|
|
|
||||
|
Maximum Power Voltage(Vmp/V)
|
17.49
|
17.9
|
18.32
|
18.74
|
19.15
|
||||
|
Maximum Power Current(Imp/A)
|
8.58
|
8.66
|
8.73
|
8.8
|
8.88
|
||||
|
Open Circuit Voltage(Voc/V)
|
22.48
|
22.69
|
22.9
|
23.1
|
23.31
|
||||
|
Short Circuit Current(Isc/A)
|
9.22
|
9.27
|
9.31
|
9.35
|
9.39
|
||||
|
Module Efficiency(%)
|
15.13
|
15.63
|
16.14
|
16.64
|
17.14
|
||||
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.
*Measuring Tolerance: ±3%.
Our Factory
Strict QC System
100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
100% "Zero"
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Professional packaging
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Project Cases
Go Solar
FAQ
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.
