Quick Details
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
210

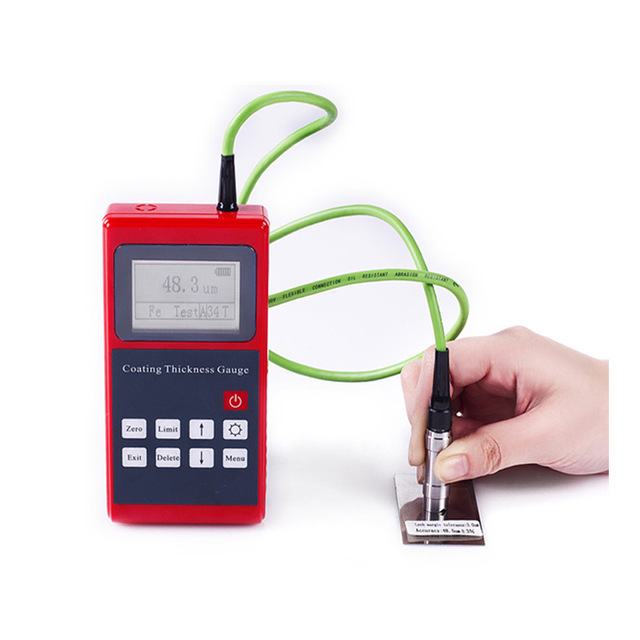

Coating Thickness Gauge Leeb210
Function & Feature:
l Two methods of power off: Manual & Automatically.
l Limit settings: alarm if one of the measurement data is beyond of the limits.
l Deleting function: You can delete one of the doubtful data and you can also delete all of data in the memory to prepare for new measurement.
l Saving function: capable of 500 sets of measurement value.
l Five statistical data: Mean Value, Maximum Value, Minimum Value, Measurement, Standard Deviation.
Measuring Material:
l Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel) . (Fe)
l Non conductive coating on non magnetic metal (such as rubber, plastic, paint, oxide on aluminum, copper, zinc, tin) . (NFe)
Technical Specification
|
Model |
Leeb210 |
|
Operating principle |
Magnetic induction (Fe) |
|
Measuring range (µm) |
0~1250μm |
|
Probe |
Settled |
|
Shell |
Plastic |
|
Accuracy |
±[ ( 1~3%)H+1] |
|
Low range resolution (µm) |
0.1μm |
|
Min curvature of the min area (mm) |
Convex1.5 Concave9 |
|
Diameter of the min area (mm) |
Φ7 |
|
Critical thickness of substrate (mm) |
0.5 |
|
Memory |
500 Groups measured data |
|
Dimensions |
115×70×30mm |
|
Power supply |
AAA Alkaline battery |
|
Standard configuration |
Main Machine,5 calibration specimens (50mm , 100mm , 200mm , 500mm , 1000mm) , Fe or NFe probe, Fe or NFe substrate. |
|
Optional Accessories |
Probes , Specimens |
