1. Silicone mask with features of facial recognition clearly;
2. Anti-fog visor with visual field up to 93%, good transparency, clear vision, no atomization after long time usage cause of double mist function;
3. Inflame retardant silicon rubber material ensures the comfortable wearing and heat prevention;
- Product Details
- {{item.text}}
Quick Details
-
Applications:
-
Fire fighting/diving/petroleum/chemical/metallurgy/electric power
-
Type:
-
SCBA
-
Alternative cylinders:
-
3L/4.7L/6.8L/and 9L/12L carbon fiber composite cylinders
-
Functions:
-
Breathing apparatus for people with oxygen deficiency/toxic gas etc.
-
Full Face Mask:
-
Silicone mask comfortable, anti-aging
-
PC Anti-fog visor:
-
Visual field up to 98%, good transparency, clear vision
-
Air Flow:
-
1000L/min
-
Radio Communication:
-
Optional radio communication function
-
Output Pressure:
-
90psi to 135 psi (6bar to 9bar)
-
Alarm whistle & gauge:
-
Alarm rings while pressure reaches 825±75psi (55±5bar)
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Starye
-
Model Number:
-
SY-SCBA6.8/30
-
Applications:
-
Fire fighting/diving/petroleum/chemical/metallurgy/electric power
-
Type:
-
SCBA
-
Alternative cylinders:
-
3L/4.7L/6.8L/and 9L/12L carbon fiber composite cylinders
-
Functions:
-
Breathing apparatus for people with oxygen deficiency/toxic gas etc.
-
Full Face Mask:
-
Silicone mask comfortable, anti-aging
-
PC Anti-fog visor:
-
Visual field up to 98%, good transparency, clear vision
-
Air Flow:
-
1000L/min
-
Radio Communication:
-
Optional radio communication function
-
Output Pressure:
-
90psi to 135 psi (6bar to 9bar)
-
Alarm whistle & gauge:
-
Alarm rings while pressure reaches 825±75psi (55±5bar)
Product Description
2023 New Type Respiratory Protection Safety Fire Fighting Equipment
1. This SCBA can be widely used in fire fighting, diving, petroleum, chemical, metallurgy, electric power, shipbuilding, and other industries. It's an self-contained air breathing apparatus for people who work in the environments with oxygen deficiency, toxic gas etc. While use, the pressure within the respirator mask is always slightly higher than the external pressure, which can effectively prevent toxic or harmful gases penetrated the mask.
2. The new type full face mask SCBA of comprehensive positive pressure air respirator is equipped with a communication system which has the sound amplification function. This facility makes it easier and quicker to solve personnel on-site communication difficulties. Also the use of group selectors, where two or more masks are grouped together, the self-contained air breathing apparatus can be used for three people at the same time. Alternative cylinders are 3 liters, 4.7 liters, 6.8 liters and 9liters, 12litres carbon fiber composite cylinder and marine cylinder of 6 liters configuration.
2. The new type full face mask SCBA of comprehensive positive pressure air respirator is equipped with a communication system which has the sound amplification function. This facility makes it easier and quicker to solve personnel on-site communication difficulties. Also the use of group selectors, where two or more masks are grouped together, the self-contained air breathing apparatus can be used for three people at the same time. Alternative cylinders are 3 liters, 4.7 liters, 6.8 liters and 9liters, 12litres carbon fiber composite cylinder and marine cylinder of 6 liters configuration.
Application
This SCBA can be widely used in fire fighting, diving, petroleum, chemical, metallurgy, electric power, shipbuilding, and other industries.
Features
1. This SCBA has a full face mask with big screen transparent, flame retardant & can be put on radio for communication;
2. Automatic suction structure and emergency gas supply button design for easy operation;
3. Fiber carbon gas cylinder with lightweight alloy liner which is high strength and corrosion resisting, can also be designed for different marked colors for dark work;
4. Back plate & harness flame retardant, is tolerant for different sizes of gas cylinders;
5. Alarm whistle & gauge is attached.
2. Automatic suction structure and emergency gas supply button design for easy operation;
3. Fiber carbon gas cylinder with lightweight alloy liner which is high strength and corrosion resisting, can also be designed for different marked colors for dark work;
4. Back plate & harness flame retardant, is tolerant for different sizes of gas cylinders;
5. Alarm whistle & gauge is attached.

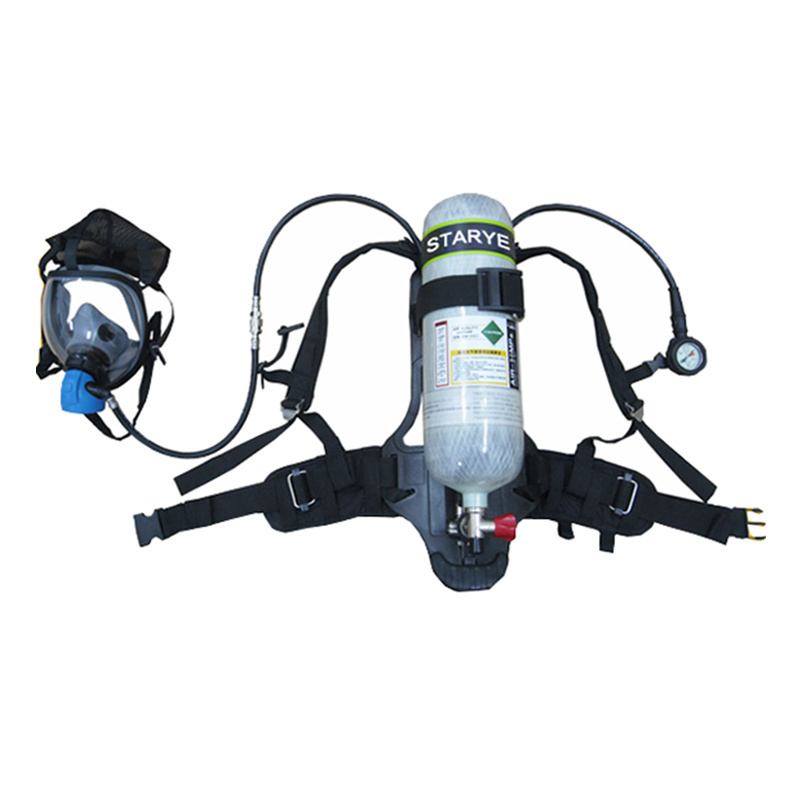

Structures
The structures of SCBA contanied full face mask, demand valve/ air supply valve,
pressure reducing valve, carbon fiber cylinder & cylinder valve, back plate & harness, alarm whistle and gauge.
pressure reducing valve, carbon fiber cylinder & cylinder valve, back plate & harness, alarm whistle and gauge.
Product Specifications
|
Model
|
SY-SCBA6.8/30
|
|
Operating Pressure
|
30MPa
|
|
Air Cylinder Volume
|
6.8L
|
|
Max. Air Volume
|
1845L
|
|
Maximum Flow
|
≥1000L/min
|
|
Alarm Pressure
|
5.5±0.5M Pa
|
|
Alarm Sounds
|
≥90db
|
|
Working Time
|
60mins
|
|
Weight
|
≤9.5KG
|
|
Exhalation Resistance
|
<1000Pa
|
|
Inhale Resistance
|
<500Pa
|
|
Packing Dimension
|
77*47*30cm
|
|
Alternative cylinder volume
|
2L, 3L, 4.7L, 6.8L, 9L, 12L
|
Product Actual Shooting
Product Details
01
Full Face Mask
02
Air Supply Valve
1. Hand-held type air supply valve with small size makes a grander vision of the mask;
2. Air flow not less than 500L/min;
3. Quick connectors with full angle insert, fast and flexible;
2. Air flow not less than 500L/min;
3. Quick connectors with full angle insert, fast and flexible;
03
Pressure Reduce Valve
1. The valve core takes use of Germany technology with lifetime as long as 15 years.
2. Unique max. flow is more than 1000L/min as a guarantee to the enough respiratory volume for the user.
3. The pressure reduce valve can be connected with 360 degree rotation;
2. Unique max. flow is more than 1000L/min as a guarantee to the enough respiratory volume for the user.
3. The pressure reduce valve can be connected with 360 degree rotation;
04
Pressure Gauges
1. The alarm whistle is equipped on the chest. Alarm sounds≧90DB makes it easier for the users to hear among noisy environment.
2. Night vision pressure gauge has the functions of explosion proof, waterproof and shocking resistance.
2. Night vision pressure gauge has the functions of explosion proof, waterproof and shocking resistance.
05
Back Plate
1. Outer fabric is taken use of flame retardant material of textile materials against static electricity and corrosion;
2. Back plate is designed per ergonomic, lightweight and flexible. It can bend with 90 degree in normal environment;
3. Harness system is designed to reduce weight on shoulders and avoid pressing sensation on waist and shoulders.
2. Back plate is designed per ergonomic, lightweight and flexible. It can bend with 90 degree in normal environment;
3. Harness system is designed to reduce weight on shoulders and avoid pressing sensation on waist and shoulders.
06
Carbon Fiber Cylinder
1. Carbon fiber cylinder with features of high strength, light weight, anti-corrosion, striking resistant and inflame retardant & heat resistant;
2. The current limiting device on valve can prevent the danger effectively caused by the cylinder valve breakage;
3. The M18*1.5 sized vale can match with different sizes cylinders of volume from 2-12L;
2. The current limiting device on valve can prevent the danger effectively caused by the cylinder valve breakage;
3. The M18*1.5 sized vale can match with different sizes cylinders of volume from 2-12L;
