Quick Details
-
Model Number:
-
LBZZJ9-35
-
Product Name:
-
Current Transformer
-
Rated Voltage:
-
up to 35kv
-
Frequency:
-
50/60Hz
-
Rated Inlusation Level:
-
12/42/75kv
-
Rated Primary Current:
-
up to 2000A
-
Rated Secondary Current:
-
5A or 1A
-
Certificate:
-
ISO CCC IEC
-
OEM:
-
Offered
-
MOQ:
-
1PCS
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhegui Electric
-
Model Number:
-
LBZZJ9-35
-
Product Name:
-
Current Transformer
-
Rated Voltage:
-
up to 35kv
-
Frequency:
-
50/60Hz
-
Rated Inlusation Level:
-
12/42/75kv
-
Rated Primary Current:
-
up to 2000A
-
Rated Secondary Current:
-
5A or 1A
-
Certificate:
-
ISO CCC IEC
-
OEM:
-
Offered
-
MOQ:
-
1PCS
Product Description
Customized products can consult online customer service!

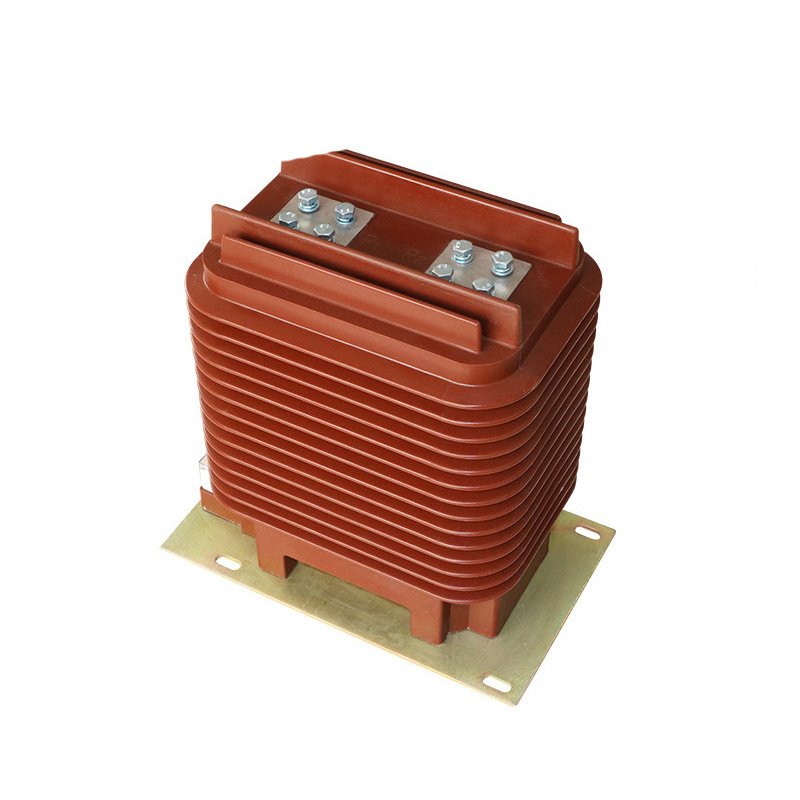

LBZZJ9-35 High Voltage Current Transformer
Description:
The current transformer has epoxy resin cast fully enclosed structure. Applies to the rated voltage of 35kV and below. Rated frequency of 50Hz indoor power line and its equipment current. Energy measurement and protection.
| Type | Rated primary current (A) | Accuracy class | Rated output (VA) |
Short-time thermal current
(kA/S) |
(kA) Rated Dynamic current | |||
| LZZBJ9-35W1 | 20~100 |
0.2S/0.2S
0.2S/0.5 0.2S/5PI5 0.5/5P20 0.2S/0.5/5P20 |
10 | 15 | 15 | 15 | 90l1n/1s | 225l1n |
| 150~200 | ||||||||
| 300~500 | ||||||||
| 600~1250 | 15 | 30 | 20 | 20 | 45l1n/4s | 110l1n | ||
| 1500~2000 | 20 | 40 | 30 | 30 | ||||
| 2500 | 20 | 40 | 20 | 20 | ||||
| LZZBJ9-35W2 | 20~100 |
0.2S/0.5/5P20
0.2S/5P15/5P20 0.5/5P15/5P20 0.2S/0.5/5P20/5P20 |
10 | 15 | 15 | 15 | 90l1n/1s | 225l1n |
| 150~200 | ||||||||
| 300~500 | ||||||||
| 600~1250 | 15 | 30 | 15 | 20 | 45l1n/4s | 110l1n | ||
| 1500~2000 | 20 | 40 | 20 | 30 | ||||
| 2500 | 20 | 40 | 20 | 20 | ||||
