Quick Details
-
Range of Spindle Speed(r.p.m):
-
70 - 2000 r.p.m
-
Max. Turned Length (mm):
-
200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOYONG-TRD
-
Model Number:
-
CZ1340A CZ1440A
-
Voltage:
-
220v
-
Weight (KG):
-
800 KG
Quick Details
-
Max. Length of Workpiece (mm):
-
520
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
70 - 2000 r.p.m
-
Max. Turned Length (mm):
-
200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOYONG-TRD
-
Model Number:
-
CZ1340A CZ1440A
-
Voltage:
-
220v
-
Weight (KG):
-
800 KG
PRODUCT DESCRIPTION

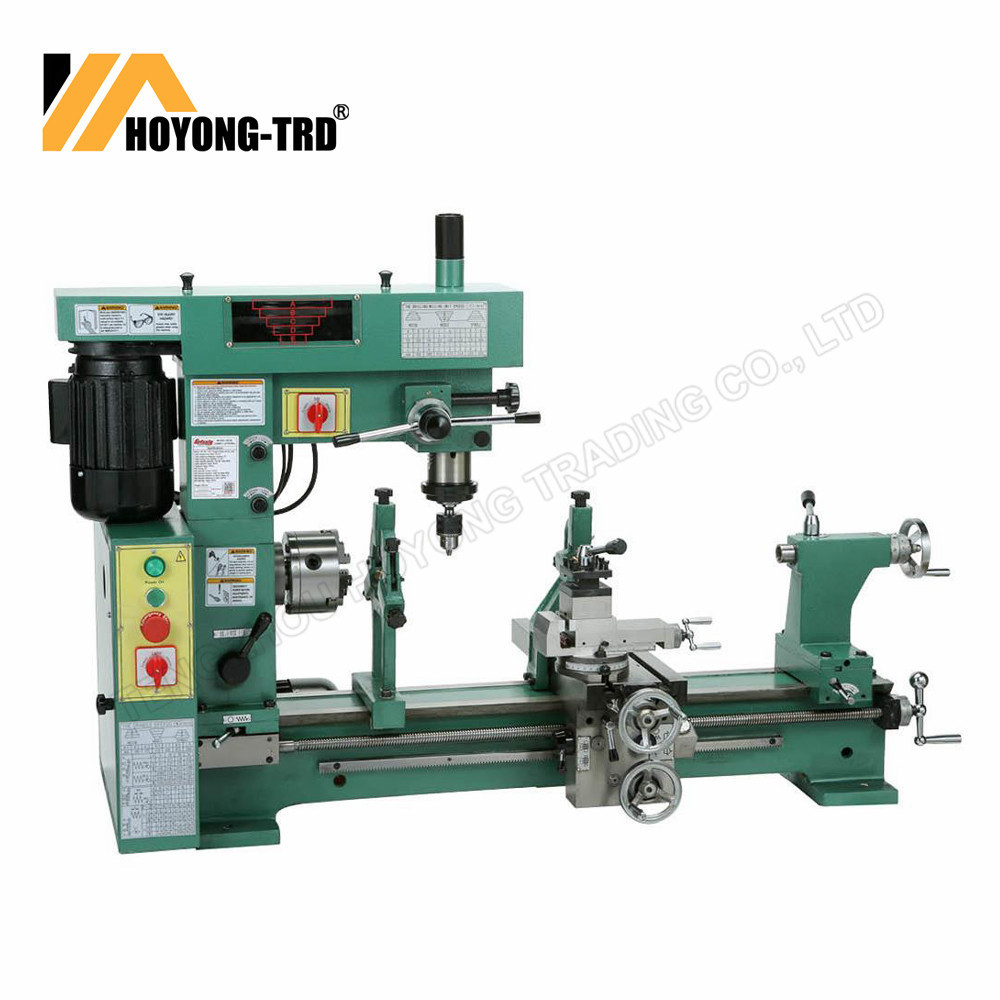

1.Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel
|
MODEL
|
|
HQ500/HQ800
|
|
|
TURNING
|
Swing over bed
|
420mm
|
|
|
|
Distance between centers
|
500mmHQ800:800mm
|
|
|
|
Max. longitudinal travel
|
440mm (HQ800:740mm)
|
|
|
|
Max. cross travel
|
200mm
|
|
|
|
Taper of spindle
|
M.T.4
|
|
|
|
Spindle hole
|
φ28mm
|
|
|
|
Step of spindle speed
|
7
|
|
|
|
Range of spindle speed
|
160-1360r.p.m
|
|
|
|
Barrel travel
|
70mm
|
|
|
|
Taper of center
|
M.T.3
|
|
|
|
Metric thread range
|
0.2-6mm
|
|
|
|
Inch thread range
|
4-120T.P.I
|
|
|
|
Longitudinal range of automatic feeding
|
0.05-0.35mm/0.002-0.014
|
|
|
|
Cross range of automatic feeding
|
0.05-0.35mm/0.002-0.014
|
|
|
DRILLING & MILLING
|
Max. drilling capacity
|
φ22mm
|
|
|
|
Worktable size (L*W)
|
475×160mm²
|
|
|
|
Max. end mill
|
φ28mm
|
|
|
|
Max. face mill
|
φ80mm
|
|
|
|
Distance between spindle center and column
|
285mm
|
|
|
|
Distance between spindle and worktable
|
306mm
|
|
|
|
Headstock travel of up and down
|
110mm
|
|
|
|
Spindle taper
|
M.T.3
|
|
|
|
Step of spindle speed
|
16
|
|
|
|
Range of spindle speed
|
120-3000r.p.m
|
|
|
|
Swivel degree of headstock
|
±360°
|
|
|
MOTOR
|
Motor power
|
0.55Kw/0.55Kw
|
|
|
|
Voltage/Frequency
|
As customers requirement
|
|
|
SHIPMENT DATA
|
Packing size
|
1130×580×1100mm(HQ800:1430×580×1100mm)
|
|
|
|
N. weight/G .weight
|
245kg/280kg(HQ800:275kg/325kg)
|
|
|
|
Loading amount
|
40pcs/20container(800: 32pcs/20container
|
|
|
Machine
|
Kg
|
500/560
|
|
|
Stand
|
Kg
|
70/75
|
|
|
Loading amount
|
|
22pcs/20container
|
|
