Quick Details
-
OEM:
-
Yes
-
Drawing:
-
Welcome
-
Copper alloy:
-
brass/bronze/lead bronze
-
Datail:
-
Superior surface finish
-
Size:
-
Customized
-
Lead time:
-
According to the quantity
-
Certification:
-
ISO
Quick Details
-
Processing type:
-
Cnc milling,drilling, precision machining,ect
-
Feature:
-
Anti-erosion,Anti-abrasion,Load Capacity
-
Technical:
-
oilite phosphor,cast,mould
-
OEM:
-
Yes
-
Drawing:
-
Welcome
-
Copper alloy:
-
brass/bronze/lead bronze
-
Datail:
-
Superior surface finish
-
Size:
-
Customized
-
Lead time:
-
According to the quantity
-
Certification:
-
ISO

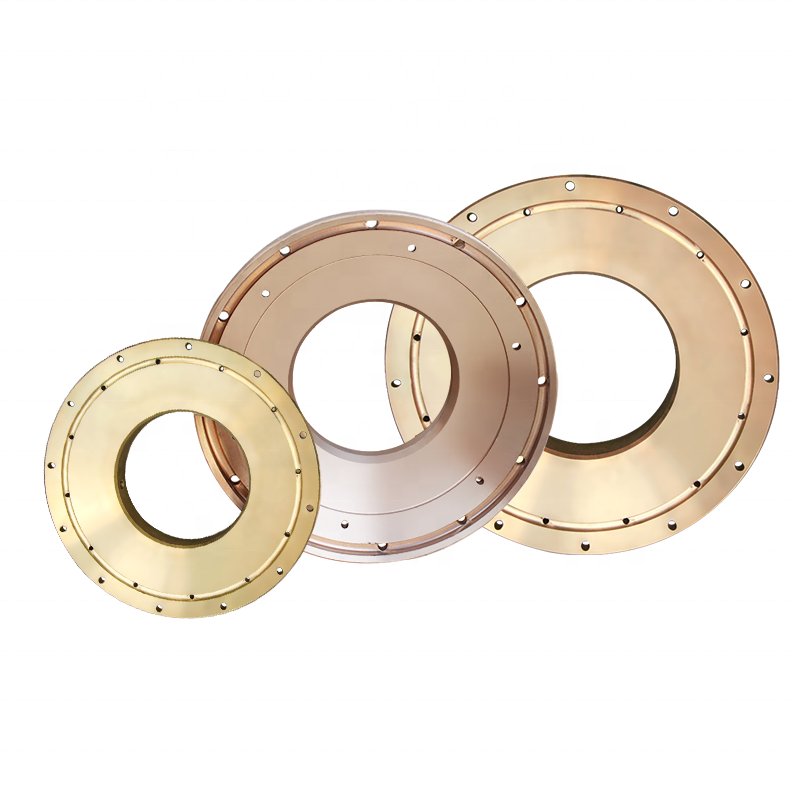

Bronze bushing spring cone crusher spare part bronze socket liner hp200
| Part Name | Material Grade | Weight(kg) | Net Size Metric System | ||||
| D2 | d2 | D1 | d2 | H | |||
| 1 | 2 | 3 | 4 | 5 | |||
| PYB600 | Bronze | 17.5 | 125.5 | 105.5 | 167 | 147 | 445 |
| PYB900 | Bronze | 41 | 150 | 125 | 234 | 209.6 | 672 |
| PYB1200 | Bronze | 90 | 227.1 | 197.1 | 300 | 270.6 | 875 |
| PYB1300 | High lead | 100 | 260.5 | 229.44 | 330.2 | 330.41 | 863.6 |
| PYB1600 | Bronze | 195 | 292.8 | 256 | 399.6 | 350.6 | 1145 |
| PYB1750 | Bronze | 220 | 324.83 | 283.83 | 420 | 380 | 1142 |
| PYB2200 | Bronze | 410 | 376 | 333 | 495 | 452 | 1428 |
| 3Feet | High lead | 50 | 158.826 | 130.175 | 217.551 | 187.096 | 704.85 |
| Note:For reference only | |||||||
Production Applied info.:
|
Crusher |
Brand or Type |
Models |
|
Cone crusher |
|
Domestic: S75,S155,S240 |
|
Abroad: CS-short head series(CS75D,CS110D,CS160D,CS240D,CS315D) |
||
|
Sandvik |
H2800,H3800,H4800,H6800,S2800,S3800,S4800 |
|
|
|
C series: C80 , C100 , C110 , C125 , C140 , C160 , C200 |
|
|
HP series : HP100 , HP200 , HP300 , HP400 , HP500 , HP700 , HP800
|
||
|
GP series: GP100 , GP110 , GP300 , GP500 |
||
|
Spring |
600,900,1200,1750,2200 |
-
MARINE
Bearing for harbor booms
Propellor shaft bearings
Hydraulic jack bearings -
OFFSHORE
Bearing for platform elevators -
IRON AND STEEL MANUFACTURE
Bearing for roll adjustment on rolling mills
Bearings for chain conveyor
Bearing blocks for overhead cranes -
MISCELLANEOUS
Jack bearings
Guide rings for piston pumps - CONE CRUSHER MACHINE
| Company Type | Manufacture factory SGS Audit supplier |
| Material | Brass, Tin bronze, Lead bronze,Aluminum bronze,ect |
| Standard | ISO 2008,SGS,CE |
| Fearture |
1. High load capacity Cood anti-wearing
2. Low coefficients of friction
3.Good heat conductivity 4. High corrosion resistance 5.Long life and maintenance-free 6.No contaminant by oil or grease |
| Process | Centrifugal casting,sand casting,Machining,Injection |
| Quality assurance |
2D Projector, Height Gague,Micrometer,Roughness Tester,
CCD Autimatic Testing Machine CCD,Callipers |
| Tolerance |
Roundness::+/- 0.01mm.
Flatness:+/- 0.005mm. Height and length:+/- 0.01mm. |
| Payment | L/c ,T/T,Paypal,Western Union,Ali Credit insurance |
| Port | QINGDAO ,TIANJIN ,SHANGHAI ,NINGPO PORT |
| Drawing | Yes |
| Sample | Available |
| MOQ | 50KG |
| Lead time | According to required time |
