CS 3kw water cooling spindle,24000rpm
- Product Details
- {{item.text}}
Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V, 3PH, 50/60HZ
-
Dimension(L*W*H):
-
3700*2140*1850MM
-
Weight (KG):
-
1500
-
Structure:
-
Thicker and bigger welded steel tube frame,gantry moving type
-
Control System:
-
Mach 3 control system with wireless handle
-
Spindle:
-
CS 3kw water cooling spindle,24000rpm
-
Inverter:
-
3.7 kw Fuling inverter
-
Drive Motor:
-
Chines step motor and driver
-
Working Area:
-
1300*2500*200mm
-
Table Surface:
-
Aluminum T-slot with vacuum working table
-
X,Y Transmission:
-
X,Y axis with high accuracy helical rack
-
Z Axis Transmission:
-
Taiwan TBI ball screw 2510# for Z axis
-
Linear Rail:
-
Taiwan #20 HIWIN Linear Guide
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V, 3PH, 50/60HZ
-
Dimension(L*W*H):
-
3700*2140*1850MM
-
Weight (KG):
-
1500
-
Structure:
-
Thicker and bigger welded steel tube frame,gantry moving type
-
Control System:
-
Mach 3 control system with wireless handle
-
Spindle:
-
CS 3kw water cooling spindle,24000rpm
-
Inverter:
-
3.7 kw Fuling inverter
-
Drive Motor:
-
Chines step motor and driver
-
Working Area:
-
1300*2500*200mm
-
Table Surface:
-
Aluminum T-slot with vacuum working table
-
X,Y Transmission:
-
X,Y axis with high accuracy helical rack
-
Z Axis Transmission:
-
Taiwan TBI ball screw 2510# for Z axis
-
Linear Rail:
-
Taiwan #20 HIWIN Linear Guide
Product Description

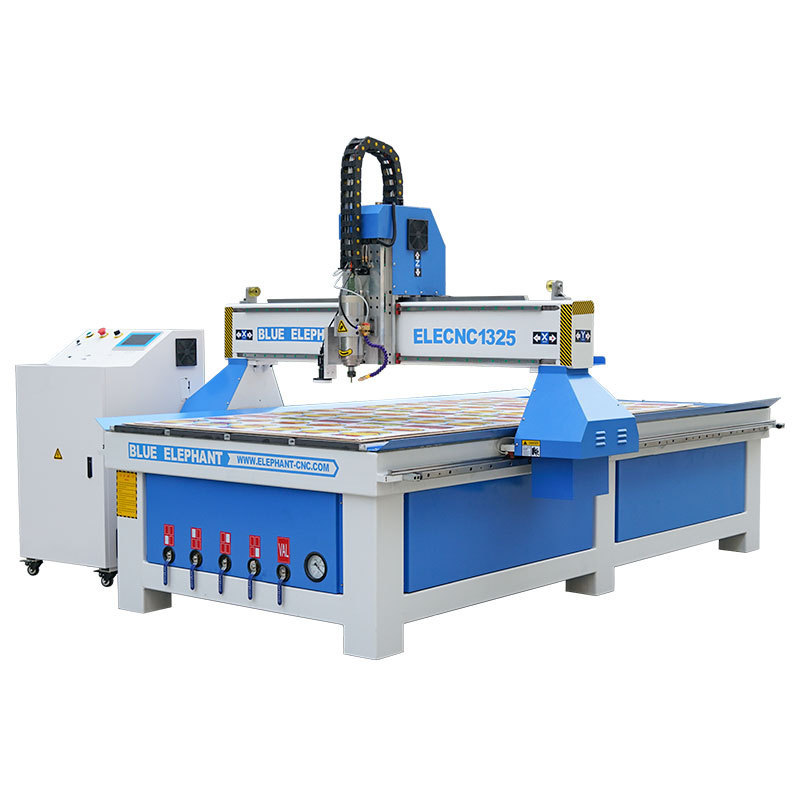

Automatic New design camera cnc router with ccd for edging on non metal materials
Features:
* Adopting Changsheng water cooling spindle, it has the characteristics of high speed and low noise.
* Equipped with a CCD visual recognition system, with the functions of automatic edge search, positioning, and cutting.
* Adopting Mach 3 and Ruida system to control the spindle and CCD separately, it is easy to operate.
* Whether the work area or accessories selection can be customized according to user requirements.
* Equipped with a CCD visual recognition system, with the functions of automatic edge search, positioning, and cutting.
* Adopting Mach 3 and Ruida system to control the spindle and CCD separately, it is easy to operate.
* Whether the work area or accessories selection can be customized according to user requirements.
Technical parameters
|
Description
|
Parameter
|
|
X,Y,Z Working Area
|
1300*2500*200mm
|
|
Structure
|
Thicker and bigger welded steel tube frame,gantry moving type
|
|
Working voltage
|
380V/50HZ/3PH
|
|
Table Surface
|
Aluminum T-slot with vacuum working table
|
|
Spindle
|
Original Italy HSD 7KW Air cooling spindle
|
|
Spindle speed
|
0-24000rpm
|
|
Motor and driver
|
FL118 bigger stepper motor and YAKO2811 driver
|
|
Inverter
|
Taiwan DELTA 7.5KW inverter
|
|
Dust Collector
|
1.5kw new type dust collector
|
|
Control System
|
RichAuto DSPA11 handle controller with USB port
|
|
X Y Structure
|
X,Y axis with high accuracy helical rack
|
|
Z axis
|
Taiwan TBI ball screw 2510# for Z axis
|
|
Limit
|
Japan OMRON limit switch
|
Sample & Application
1.
Wood Furniture Industry
: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry : Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry : A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
2. Advertising Industry : Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry : A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Details part
Spindle
CCD camera with RD control system
Mach 3 control system with wireless handle
40% customer choice
Customer feedback
Our Service
Customer receive our machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Company information
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the
CE, SGS, ISO9001 etc
. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
