Quick Details
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
540*250
-
Year:
-
2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hoston
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1680x1140x1760mm
-
Weight (KG):
-
880
-
Power (kW):
-
1.5
-
Type:
-
Surface Grinding Machine
-
Color:
-
White&Green/Blue
-
Table size:
-
540*250mm
-
Spindle speed:
-
2850 RPM (50Hz)
-
Usage:
-
Metal Surface Grinding
-
Certification:
-
ISO BV
-
Parallelism:
-
300:0.005mm
-
Working pressure:
-
3MPa
-
Max movement of working table:
-
560*260mm
-
Speed of working table:
-
3-20 m/min
Quick Details
-
Grinding Length(mm):
-
560
-
Table Travel (X) (mm):
-
560
-
Table Travel (Y) (mm):
-
260
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
540*250
-
Year:
-
2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hoston
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1680x1140x1760mm
-
Weight (KG):
-
880
-
Power (kW):
-
1.5
-
Type:
-
Surface Grinding Machine
-
Color:
-
White&Green/Blue
-
Table size:
-
540*250mm
-
Spindle speed:
-
2850 RPM (50Hz)
-
Usage:
-
Metal Surface Grinding
-
Certification:
-
ISO BV
-
Parallelism:
-
300:0.005mm
-
Working pressure:
-
3MPa
-
Max movement of working table:
-
560*260mm
-
Speed of working table:
-
3-20 m/min

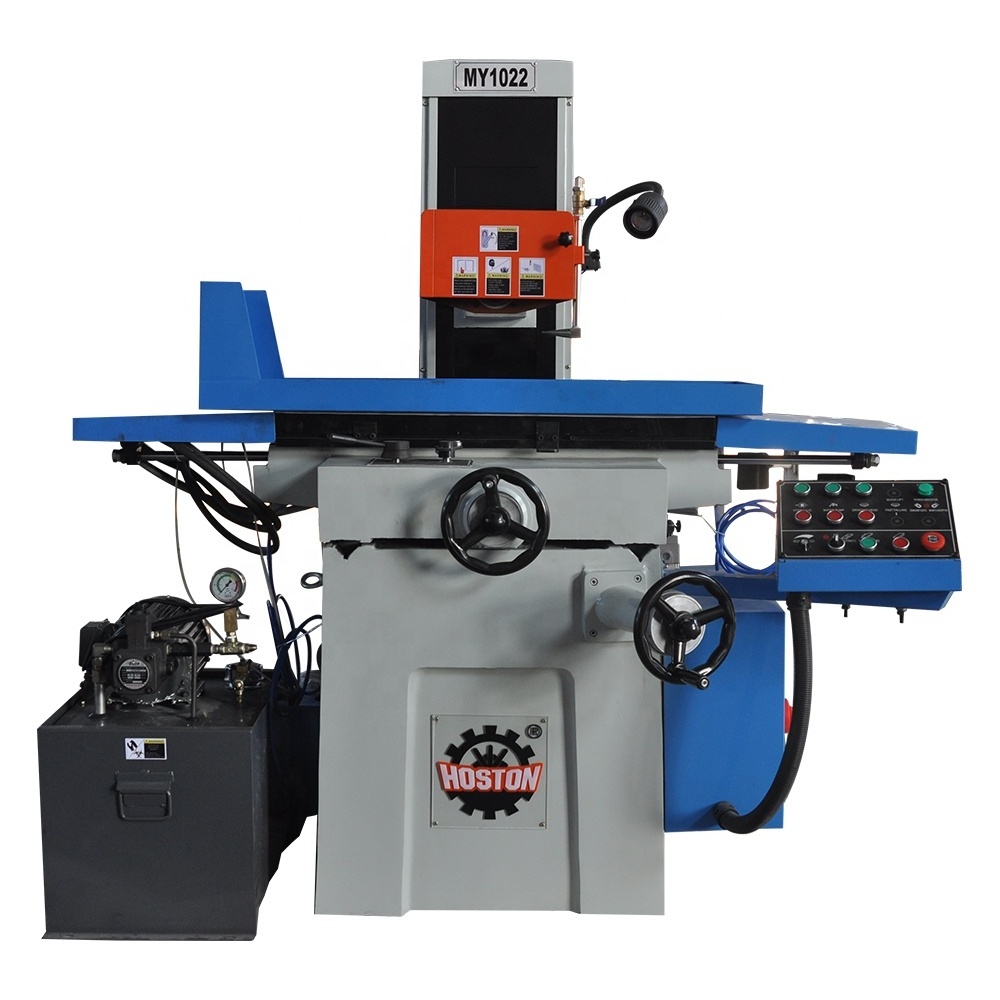

Hoston Electric S urface G rinder MD 1022
On the basis of manual surface grinder, MD 1022 can realize automatic feeding and automatic reversing of the worktable after changing manual operation to electric control, which significantly improves work efficiency and reduces labor intensity.
Technical Parameters:
Model |
MD1022 |
|||
Working table |
Table Size (L× W) |
mm |
540×250 |
|
Max movement of working table (L× W) |
mm |
560×260 |
||
T-Slot (number×width) |
mm |
1×14 |
||
Grinding head |
Max distance from spindle center to table surface |
mm |
420 |
|
Wheel Size (Outer diameter×width×Inner diameter) |
mm |
φ200×20×Φ31.75 |
||
Wheel speed |
50HZ |
r/min |
2850 |
|
60HZ |
|
3360 |
||
Feed amount |
Longitudinal speed of working table |
m/min |
3-20 |
|
Cross feed of working table |
Continuously (Variable Transmission) |
mm/min |
400 |
|
Intermittently (Variable Transmission) |
mm/times |
0-5 |
||
Per revolution on handwheel |
mm |
5 |
||
Per graduation on handwheel |
mm |
0.02 |
||
Vertical feed on handwheel |
Per revolution |
mm |
1.25 |
|
Per graduation |
mm |
0.01 |
||
Reversing feeder |
Total input power |
W |
150 |
|
X- feeder output speed |
R/min |
0-225 |
||
X- feeder size |
mm |
280×130×120 |
||
Y- feeder output speed |
R/min |
0-120 |
||
Y- feeder size |
mm |
280×130×120 |
||
Motor power |
Spindle motor |
kW |
1.5 |
|
Coolant pump motor |
W |
40 |
||
Working precision |
The parallelism of working surface to base level |
mm |
300:0.005 |
|
Surface roughness |
μm |
Ra0.32 |
||
Weight |
Net |
kg |
880 |
|
Gross |
kg |
980 |
||
Overall dimension (L×W×H) |
mm |
1680x1140x1760 |
||
Package dimension (L×W×H) |
mm |
1200x1400x1940 |
