Quick Details
-
Suitable:
-
Wooden and Glass Doors
-
Material:
-
Zinc Alloy
-
Certification:
-
FCC CE
-
Application:
-
Wide Application
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AXL
-
Model Number:
-
AX076A
-
Suitable:
-
Wooden and Glass Doors
-
Material:
-
Zinc Alloy
-
Certification:
-
FCC CE
-
Application:
-
Wide Application

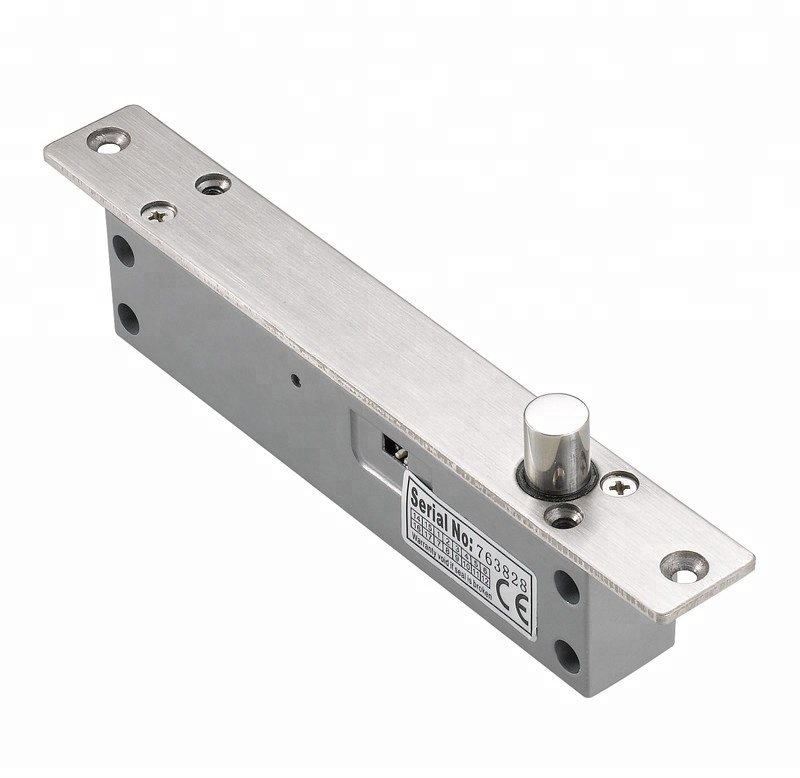

AX076A12V signal narrow panel timer Electric dropbolt lock electric bolt lock fail secure
Model:AX076A
-
Pecifications:
- Face plate size: 192x 25 x 37mm
- Strike size: 100 x 35 x 3mm
- Bolt: 16mm (diameter), stainless steel 16mm throw
- Voltage: 12V DC +10%
- Start current: 950mA (instant)
- Standby current: 150mA (lock)
- Auto lock time delay: adjustable 0, 3, 6, 9 seconds
- Surface temperature: low-temperature
- Induction distance: 10mm
- Solid bolt: stainless steel housing, 2,000kg holding force
- Special designed: tested to 200,000 cycles
- Suitable for: wooden, glass, metal doors
- Operating temperatures: -10-+55°C (14-131°F)
- Operating humidity range: 0-95% RH (non-condensing)
- Quality assurance: 12 months
- Wiring range: red (+), black (-), brown (unlock), white (COM), yellow (NC), green (No)
- Fail secure
- Pictures:
- Packaging and Delivery:
- Packaging: white box, corrugated carton, 1 piece/box , 10 pieces/carton
- Delivery: 1,000 pieces within 20 days
