Heat Transfer Oil Volume:
65L
Oil Boiling Point:
≥350
℃
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jwell
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4200mm*1500mm*2100mm
-
Power (kW):
-
37
-
Weight:
-
4000 KG
-
Raw material:
-
PE PP
-
Usage:
-
Floor
-
Color:
-
Customer Choice
-
Motor:
-
ABB Motor
-
Contactor:
-
Schnerder
-
Inverter:
-
ABB Brand
-
Extruder:
-
SJ 65/132
-
Application Field:
-
Indoor Outdoor Floor Board
-
L/D:
-
30/1
-
Marketing Type:
-
Hot Product
Quick Details
-
Screw Design:
-
Conical twin screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
65/132
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jwell
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4200mm*1500mm*2100mm
-
Power (kW):
-
37
-
Weight:
-
4000 KG
-
Raw material:
-
PE PP
-
Usage:
-
Floor
-
Color:
-
Customer Choice
-
Motor:
-
ABB Motor
-
Contactor:
-
Schnerder
-
Inverter:
-
ABB Brand
-
Extruder:
-
SJ 65/132
-
Application Field:
-
Indoor Outdoor Floor Board
-
L/D:
-
30/1
-
Marketing Type:
-
Hot Product
Product Overview

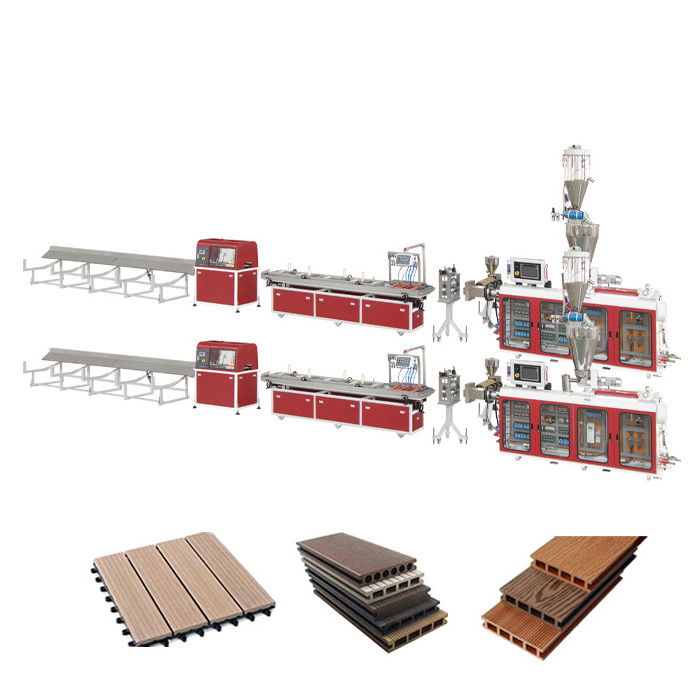

WPC （PE&PP）Wood-Plastic Floor Extrusion Line
WPC (PE & PP) Wood-Plastic Floor is that the wood-plastic composite materials complete in different equipment of mixing, from play, extruding products, mixing the raw material in a certain formula, forming wood-plastic particles in the middle, and then squeezing out products. And nowadays, the two-step way is used currently, application of a wider general use dual-cone or two-extruder granulation, and then double-cone or single screw extruder extrusion products, mainly used in floor indoor or outdoor, parapets, tray, such as WPC (PE & PP) plastic extrusion products.
|
Model
|
YF108
|
YF240
|
YF240A
|
YF300
|
YF400
|
|
Extruder type (SJZ series)
|
55/110
|
65/132
|
65/132
|
65/132
|
80/156
|
|
Power (Kw)
|
37
|
55
|
75
|
55
|
110
|
|
Water consumption (m³/h)
|
7
|
8
|
10
|
8
|
10
|
|
Gas consumption (Mpa)
|
0.6
|
0.6
|
0.8
|
0.6
|
0.6
|
|
Max. extrusion capacity (kg/h)
|
110
|
180
|
180
|
180
|
320
|
Main Features
Excellent characters for WPC materials
1.
Excellent water resistance.
The bending strength and stiffness will not change after immersing in water for 30 days. It fundamentally solves the problem that wood products are easy to rot and swell and deform after absorbing water and damp in humid and watery environments.
2.
Excellent antisepsis.
It will not rot and it has a very good quality of corrosion resistance, neither does it has termites harmless.
3.
Truly green & environment-friendly.
It can save the nature wood resources which was also called revolutionary green environmental newly material.
4.
Anti-crash.
The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF (medium density fiberboard).
5.
Colorful.
It not only has natural wood feel and wood texture, but also can customize the different colors.
|
Properties
|
Wood Material
|
Plastic Material
|
Wood-plastic Material
|
|
Rigid and Carrying Capacity
|
High
|
High
|
High
|
|
Processing Capacity
|
Easy
|
Difficult
|
Easy
|
|
Durability
|
Limited
|
High
|
High
|
|
Bibulous Capacity
|
High
|
No Sobbing
|
No Sobbing
|
|
Sunlight Endurance
|
Good
|
Bad
|
Good
|
|
Acid and Alkali Wearable
|
Bad
|
Good
|
Good
|
|
Environmental Wearable
|
Bad
|
Good
|
Good
|
|
Recycling
|
Bad
|
Partly can be recycled
|
100% can be recycled
|
|
Structure Flexible
|
High
|
Low
|
High
|
Details Images
Name: High Speed Mixer
Total Volume:
800L
Name: Twin Screw Volumetric Feeder
Conveying Capacity:
1000kg/hr
Hopper Volume:
200L
Screw Diameter:
65mm
Name: Twin Screw Extruder
Brand:
Jwell
Model:
65/132
Main Extruder Weight:
4500kg
Capacity:
180kg/h
Band:
Jinhailuo
The first screw in China was made by Jinhailuo in 1978.
Name: YFD 240 Vacuum Calibration Table
Length:
6000mm
Width:
1100mm
The Center Distance of the aluminum guide rail of the calibration table:
420mm
Name: YFG240 Cutter
Max. Cutting Width:
240mm
Max. Cutting Height:
120mm
Saw Blade Outer Diameter:
450mm
Cutting Saw Blade:
High-quality Alloy
Contactor:
Schneider
Air Switch:
Schneider
Name: YFF240 Stacker
Length:
6m
Form:
Detachable, the product contact part of the stacker is convered by rubber block
Name: JWS45/25 Co-extruder
Screw Diameter:
￠45mm, 25mm
Rotation:
20-60r/min
Motor Type:
Three-phase asynchronous motor
Name: DYPS-560 Crusher
Capacity:
300kg/h
Feed Mouth Size:
560×400mm
Main Motor Power:
15Kw
Main Axis rpm:
550 r/min
Fixed Blade:
2 pcs
Surface Process Equipment For WPC Products
Name: Sander
This machine suits for the thickness sanding, fine sanding and polish the surface of the other various boards.
Name: WPC Embossing Machine
The surface of the embossing can be processed all kinds of wood texture, surface can be hard chrome plating, roller cavity heating, simple operation and wear-resistant.
