Quick Details
-
Power:
-
24v/4.5kw
-
Min. Lifting Height:
-
2.06M, customizable
-
Table Size:
-
2.27*1.12M
-
Overall Dimensions:
-
2.43*1.21*2.6M
-
Weight:
-
2980 kg
-
Product name:
-
Self-propelled Scissor Lift
-
Keywords:
-
cheap
-
Application:
-
Widely
-
Type:
-
Propelled Sciss Lift
-
Material:
-
High Strength Steel
-
Usage:
-
Higher Level
-
Lift Drive:
-
Hydraulic Lifting Lift Platform
-
Feature:
-
Easily Operate
-
Color:
-
Customers' Requirements
-
After-sales Service Provided:
-
After-sales Service Provided
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FASITE
-
Power:
-
24v/4.5kw
-
Min. Lifting Height:
-
2.06M, customizable
-
Table Size:
-
2.27*1.12M
-
Overall Dimensions:
-
2.43*1.21*2.6M
-
Weight:
-
2980 kg
-
Product name:
-
Self-propelled Scissor Lift
-
Keywords:
-
cheap
-
Application:
-
Widely
-
Type:
-
Propelled Sciss Lift
-
Material:
-
High Strength Steel
-
Usage:
-
Higher Level
-
Lift Drive:
-
Hydraulic Lifting Lift Platform
-
Feature:
-
Easily Operate
-
Color:
-
Customers' Requirements
-
After-sales Service Provided:
-
After-sales Service Provided

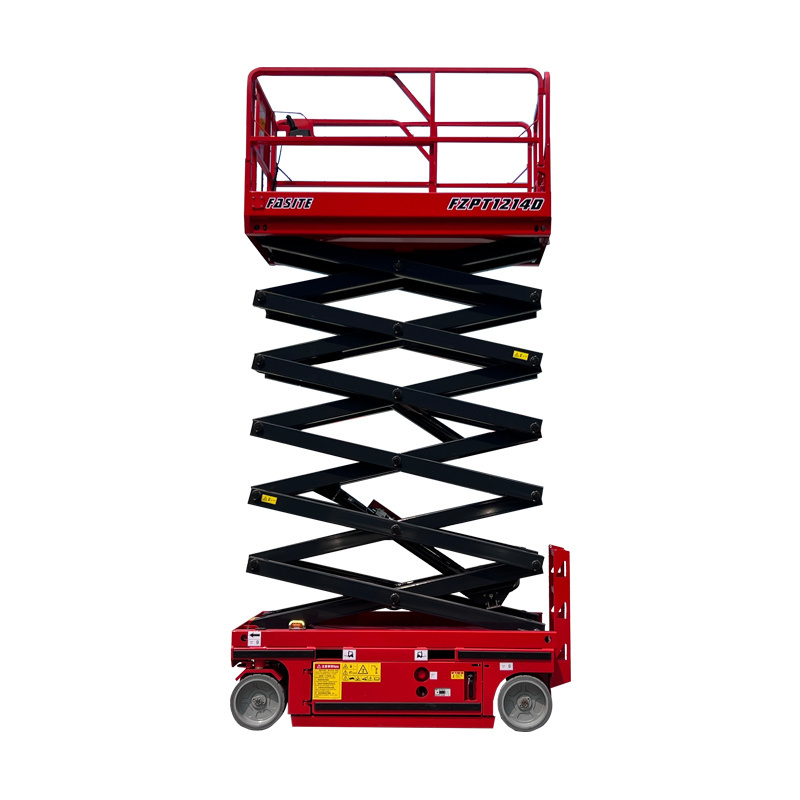

FASITE 12m Self Propelled Scissor Lift Elevator Battery Power Mobile Hydraulic Scissor Lifting Platform
The self-propelled scissor lift has an automatic walking function, with an integrated design and a built-in battery power supply.It can lift and lower freely under different working conditions without the need for external power or external traction. The walking and turning of the equipment can also be completed by only one person. This equipment is the ideal high-altitude operation equipment for modern enterprises to achieve efficient and safe production.
Product Parameters
|
Parameters
|
FZPT0608D
|
FZPT0608S
|
FZPT0810D
|
FZPT1012D
|
FZPT1214D
|
FZPT1416D
|
|
Loading capacity
|
450kg
|
230kg
|
450kg
|
320kg
|
320kg
|
230kg
|
|
Extended Platform Loading capacity
|
113kg
|
110kg
|
113kg
|
113kg
|
113kg
|
113kg
|
|
Max number of peoples
|
4
|
2
|
4
|
3
|
3
|
2
|
|
Max. working height (A)
|
8m
|
8m
|
10m
|
12m
|
13.8m
|
15.8m
|
|
Max. platform height (B)
|
6m
|
6m
|
8m
|
10m
|
11.8m
|
13.8m
|
|
Overall length (C)
|
2.43m
|
1.85m
|
2.43m
|
2.43m
|
2.43m
|
2.85m
|
|
Overall width (D)
|
1.21m
|
0.79m
|
1.21m
|
1.21m
|
1.21m
|
1.31m
|
|
Overall height (fence not folded)
|
2.22m
|
2.2m
|
2.35m
|
2.47m
|
2.6m
|
2.62m
|
|
Overall height (fence folding) (E)
|
1.67m
|
1.68m
|
1.8m
|
1.93m
|
2.06m
|
2.06m
|
|
Work platform size (length x width（F）)
|
2.27m*1. 12m
|
1.68*0.74m
|
2.27m*1. 12m
|
2.27m*1. 12m
|
2.27m*1. 12m
|
2.7m*1. 11m
|
|
Platform Extension Size (G)
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
|
Battery
|
4 ×6V/200Ah
|
4 ×6V/200Ah
|
4 ×6V/200Ah
|
4 ×6V/200Ah
|
4 ×6V/200Ah
|
4 ×6V/200Ah
|
|
Charger
|
24v/30A
|
24v/30A
|
24v/30A
|
24v/30A
|
24v/30A
|
24v/30A
|
