The whole machine is mainly composed of three parts:
1. Main body 2. Transmission hydraulic pressure 3. Electrical control is described
1.
Main body part:
It is made up of bottom plate, column, upper slab, squeegee assembly, connection Oil pan, nut and other parts are one of the main parts of the whole machine. The oil is pushed in the press assembly and pushed upward by the force of the cylinder assembly. The oil flows down from the squeezed oil flow joint and passes through the oil pan. Oil storage tank.
2.
Transmission hydraulic part:
This is the main working power source for the production of high oil rate. It is driven by transmission shaft, worm gear, worm, gear pump, high pressure pump, overflow valve, manual control valve, cylinder assembly and pipe joint. And other parts.This machine adopts advanced hydraulic pump station-Korea three-piston pump station.Compared with domestic two-piston pump, it has low speed, high oil pressure and high temperature resistance. It can work continuously without oil cooling device above 65 degrees oil temperature.
3.
Electrical control part
: This is the advanced position of this machine, it consists of motor,voltmeter, temperature control adjustment table, pressure gauge, power insurance and other components.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5432*2636*2345
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Seeds
-
Product name:
-
Hydraulic Oil Press Machine
-
Function:
-
Press Oil Seeds
-
Productivity::
-
30-450kg/h
-
Certification:
-
ce
-
Material:
-
Stainess Steel
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
tianjin
-
Brand Name:
-
Sure
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5432*2636*2345
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Seeds
-
Product name:
-
Hydraulic Oil Press Machine
-
Function:
-
Press Oil Seeds
-
Productivity::
-
30-450kg/h
-
Certification:
-
ce
-
Material:
-
Stainess Steel
Product Overview

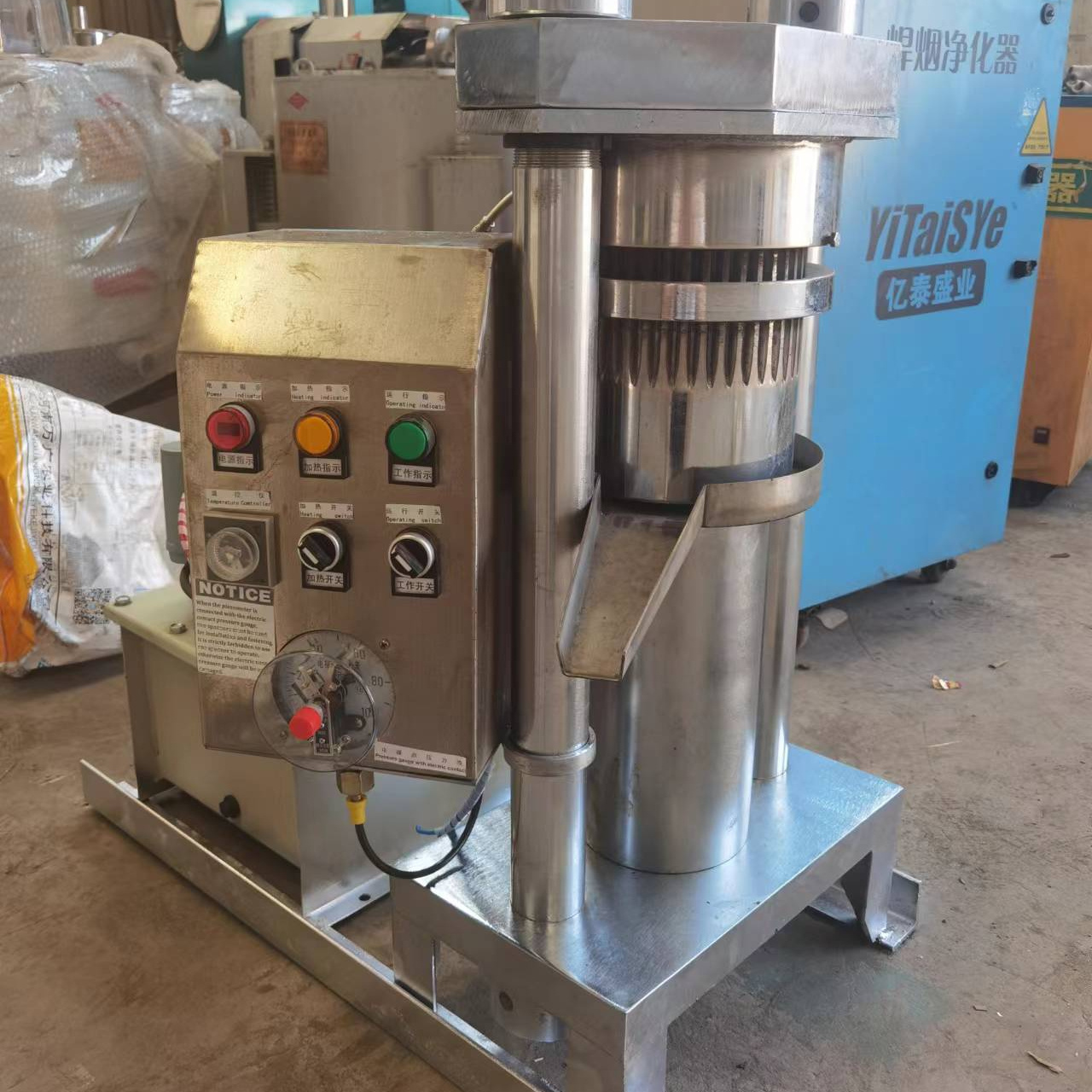

Hydraulic Oil Press Machine
Introduction for hydraulic oil press :
This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for
pressing sesame, pine nut, walnut, and so on valuable oil seeds.
Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well
as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.
This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for
pressing sesame, pine nut, walnut, and so on valuable oil seeds.
Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well
as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.
PRODUCT SPECIFICATIONS
|
NO
|
ITEM
|
CONTENT
|
CONTENT
|
CONTENT
|
CONTENT
|
CONTENT
|
CONTENT
|
CONTENT
|
|
1
|
Equipment Type
|
YZ-150
|
YZ-180
|
YZ-230
|
YZ-320
|
YZ-360
|
YZ-416
|
YZ-460
|
|
2
|
External Dimension
|
700*800*780mm
|
800*900*1050mm
|
900*1000*1400mm
|
1120*1200*1650mm
|
1200*1200*1680mm
|
1250*1250*1700mm
|
1500*1500*2150mm
|
|
3
|
Working Pressure（Mpa）
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
|
4
|
Weight
|
240kg
|
550kg
|
950kg
|
1700kg
|
2000kg
|
2200kgs
|
3000kgs
|
|
5
|
Piston Section Diameter
|
100（mm）
|
150（mm）
|
230（mm）
|
260
（mm） |
280（mm）
|
300
（mm） |
320（mm）
|
|
6
|
60 Mpa Force（t）
|
47
|
106
|
188
|
318
|
369
|
424
|
482
|
|
7
|
Tank Capacity
|
2KG
|
4KG
|
8KG
|
17.5KG
|
22.5KG
|
30KG
|
45KG
|
|
8
|
Oil Cake Diameter
|
155（mm）
|
192（mm）
|
242
（mm） |
323
（mm） |
370
（mm） |
415
（mm） |
460（mm）
|
|
9
|
Capacity（kg/h）
|
12
|
20
|
40
|
70
|
90
|
120
|
180
|
|
10
|
Motor Power
|
0.75kw
|
1.5kw
|
1.5kw
|
2.2kw
|
2.2kw
|
2.2kw
|
3.0kw
|
|
11
|
Automatic Greasing System
|
Equipped
|
Equipped
|
Equipped
|
Equipped
|
Equipped
|
Equipped
|
Equipped
|
