Side cable entry multi pin plug and 24 pin single plug and socket male female connector

Side cable entry multi pin plug and 24 pin single plug and socket male female connector

FOB Reference Price: Get Latest Price

≥4 Pieces

US $125

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Pins:: 24P

Place of Origin:: Jiangsu, China

Brand Name:: Tinko

Model Number:: HE-024-M/F

Rated Current:: 16A

Rated voltage:: 400/500V

Terminal:: Screw terminal

Wire gauge:: 0.5~4.0mm2

Contact material:: Copper Alloy Silver Plated

Insert material:: Polycabonate

Insulation resistance:: ≥1010 Ω

Connector type:: Male Female

Function:: Connecting Cable

Termination:: Screw Terminal, Spring Terminal

Quick Details

Type:: ADAPTER

Application:: Power

Gender:: Male and female

Pins:: 24P

Place of Origin:: Jiangsu, China

Brand Name:: Tinko

Model Number:: HE-024-M/F

Rated Current:: 16A

Rated voltage:: 400/500V

Terminal:: Screw terminal

Wire gauge:: 0.5~4.0mm2

Contact material:: Copper Alloy Silver Plated

Insert material:: Polycabonate

Insulation resistance:: ≥1010 Ω

Connector type:: Male Female

Function:: Connecting Cable

Termination:: Screw Terminal, Spring Terminal

HE-024-F/M

HE insert series electrical connector

Products Description

1. General Specifications

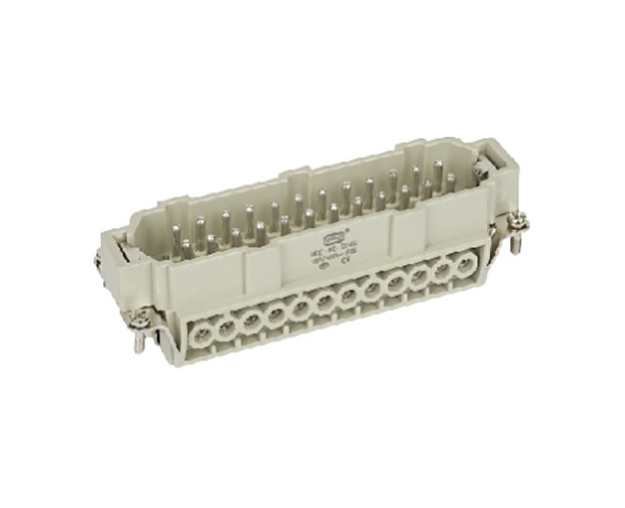

24 pin female socket HE-024-F
Working Current	16A
Working Voltage	500V
Rated Impulse Voltage	6KV
Isolation Resistence	≥1010 Ω
Temperature Range	-40℃~+125℃
Flammability acc	VO (UL94)

24 pin male socket HE-024-M
Working Current	16A
Working Voltage	500V
Rated Impulse Voltage	6KV
Isolation Resistence	≥1010 Ω
Temperature Range	-40℃~+125℃
Flammability acc	VO (UL94)

2. Wiring mode

APPLICABLE SHELLS

H24B HOODS&HOUSINGS

H24B-TS-PG21

H24B-TG

H24B-TGH-PG21

H24B-AG

H24B-TBF-PG21

H24B-TBFH-PG21

APPLICABLE CABLES

Various choices or customized

• J-type mold-power & thermocouple combination cable

• Common mold-power & thermocouple combination cable

• J-type mold-power & thermocouple seperate cable

• Common mold-power & thermocouple seperate cable
