Quick Details
-
Brand Name:
-
Becho
-
Model Number:
-
BMF420
-
Material:
-
SS316
-
Mode:
-
-
-
Range:
-
0~3000mm
-
Medium density:
-
0.5g/cm3 ~1.8g/cm3
-
Analog Output:
-
4-20mA
-
Working Pressure:
-
≤ 2.5MPa or customized
-
Accuracy:
-
10mm, 16mm
-
Wetted material:
-
stainless steel, PVC, lCr18Ni9Ti, polytetrafluoro-Zene
-
Medium Temperature:
-
-20℃~250℃
-
Protection Grade:
-
IP65
-
Shipping method:
-
DHL, Fedex, Ups, Tnt
-
Payment method:
-
T/T, Paypal, credit card
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
one year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Becho
-
Model Number:
-
BMF420
-
Material:
-
SS316
-
Mode:
-
-
-
Range:
-
0~3000mm
-
Medium density:
-
0.5g/cm3 ~1.8g/cm3
-
Analog Output:
-
4-20mA
-
Working Pressure:
-
≤ 2.5MPa or customized
-
Accuracy:
-
10mm, 16mm
-
Wetted material:
-
stainless steel, PVC, lCr18Ni9Ti, polytetrafluoro-Zene
-
Medium Temperature:
-
-20℃~250℃
-
Protection Grade:
-
IP65
-
Shipping method:
-
DHL, Fedex, Ups, Tnt
-
Payment method:
-
T/T, Paypal, credit card
Products Description

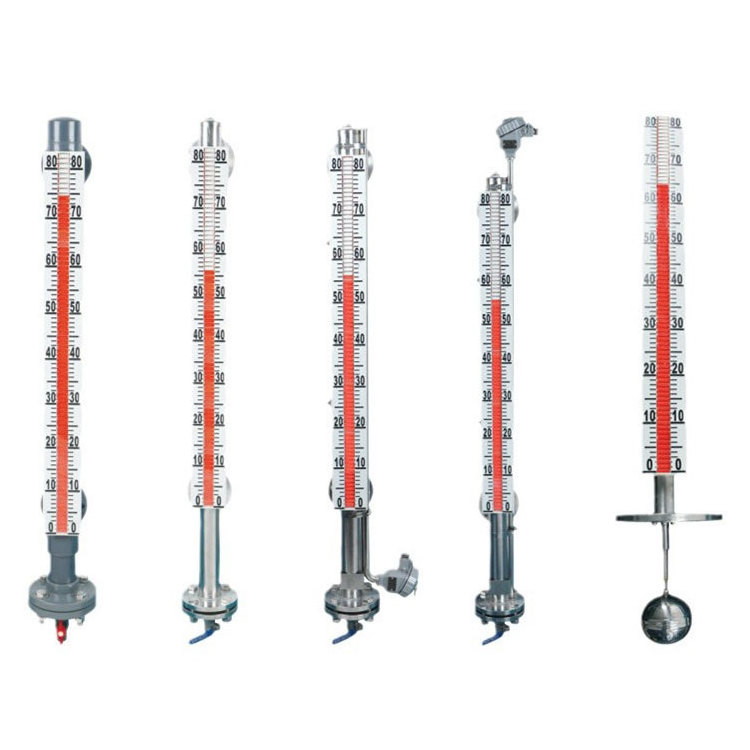

magnetic flap liquid level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange, magnetic ball and transmitter (4-20mA). the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures. The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level, it also could measure the interface of the two kinds of liquid.
Product Paramenters
|
(1) Center-center distance:
|
150~6000mm
|
76GHz ~ 81GHz, 5GHz FMCW bandwidth
|
|
||
|
(2) Medium density:
|
More than 0.45g/cm3
|
x0: 0.3 m ~ 60m
x1: 0.08m~30m x2: 0.6m ~ 120m |
|
||
|
(3) Nominal pressure:
|
PN2.5~PN40, PN40~PN320(x 0.1MPa)
|
±1mm
|
|
||
|
(4) Material:
|
SS304, 316L, PP, PTFE, or customized
|
3°/6°
|
|
||
|
(5)Operating temperature:
|
-190 ~ +425 °C
|
>=2
|
|
||
|
(6) Process connection:
|
DN20~DN80/RF/14,DN80~DN250/RF/14
|
15~28VDC
|
|
||
|
(7)Indicator types:
|
|
2x: MODBUS
3x: HART/Series |
|
||
|
A: Al &ABS flap cylinder
|
B: Al flap plate
|
2x: 4 ~ 20mA or RS-485
3x: 4~20mA |
|
||
|
C: PVC ABS flap cylinder
|
D: PP&ABS flap cylinder
|
3.8mA, 4mA, 20mA, 21mA, hold
|
|
||
|
E: AL &LED
|
F: PP&LED
|
128 × 64 dot matrix display / 4 buttons
PC software Bluetooth |
|
||
|
(8) Structure of top chamber: |
1.Welding cover
2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve |
≤95%RH
|
|
||
|
(9) Structure of bottom chamber: |
1.flange cover
2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve |
Aluminum alloy, stainless steel
|
|
||
|
(10)Protection class:
|
IP65
|
Lens antenna/anti-corrosive antenna / flange isolated by quartz
|
|
||
|
(11)Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry,
food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity. |
|
T0:-40~85℃; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃
|
|
||
|
Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive
type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification. |
|
-0.1~2MPa
|
|
||
|
Product Size
|
|
Ø100*270mm
|
|
||
|
Cable entry
|
|
M20*1.5
|
|
||
|
Recommended cables
|
|
AWG18 or 0.75mm²
|
|
||
|
Protection class
|
|
IP67
|
|
||
|
Explosion-proof grade
|
|
ExdiaIICT6
|
|
||
|
Installation method
|
|
Thread or flange
|
|
||
|
Weight
|
|
2.480Kg/2.995Kg
|
|
||
|
Packing box size
|
|
370*270*180mm
|
|
||
