Quick Details
-
Brand Name:
-
XSHEEN
-
Model Number:
-
XHJZ-50-3D
-
product name:
-

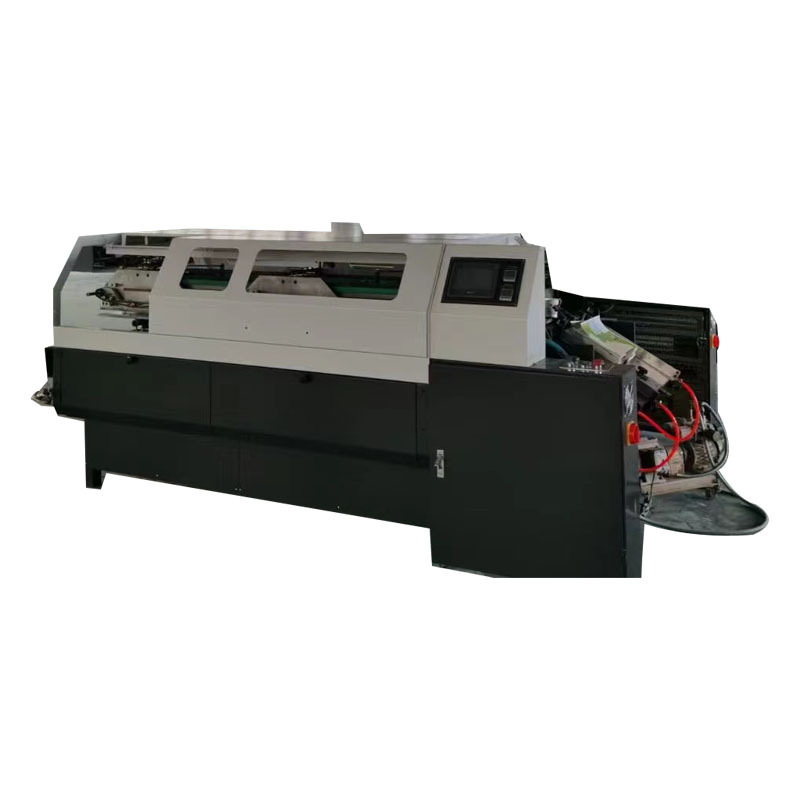

Perfect Binder Pur Glue A3 Size Book Binding Machine Factory
-
warranty:
-
book binder machine 1 year
-
Function:
-
Hot Melt Book Binding
-
Max Binding thickness:
-
3 ~ 50 mm
-
Binding Speed:
-
1700 book/hour
-
Total Power:
-
15KW
-
Packing Weight:
-
1600 kg
Quick Details
-
Type:
-
Hot Glue Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XSHEEN
-
Model Number:
-
XHJZ-50-3D
-
product name:
-
Perfect Binder Pur Glue A3 Size Book Binding Machine Factory
-
warranty:
-
book binder machine 1 year
-
Function:
-
Hot Melt Book Binding
-
Max Binding thickness:
-
3 ~ 50 mm
-
Binding Speed:
-
1700 book/hour
-
Total Power:
-
15KW
-
Packing Weight:
-
1600 kg
Specification
|
Machine Type
|
XH-50/3A
|
XH50/3D
|
XH50/4D
|
XH50/5D
|
||
|
Binding Breadth
|
Max: 450×270mm
Min: 160×120 mm |
max: 450×300mm(big folio)
max: 450*270mm(small folio) min: 160×120 mm |
|
|
||
|
Binding thickness
|
3-50mm
|
3 ~ 50 mm
|
3 ~ 50 mm
|
3 ~ 50 mm
|
||
|
Binding speed
|
1500books/h
|
1700 book/hour
|
1800 book/hour
|
2000 book/hour
|
||
|
Power
|
13kw
|
15kw
|
17 kw
|
18 kw
|
||
|
Packing Weight
|
1500KG
|
1600kg
|
1800 kg
|
2000 kg
|
||
|
Packing Size
|
3050x1500x1640 mm
|
3480x1500x1640 mm
|
3480x1500x1640 mm
|
4000x1700x1640 mm
|
||
|
Clip Quantity
|
1 clamp
|
3clamps
|
4clamps
|
5clamps
|
||
Perfect elliptic book binding machine, kolbus perfect binder
Description of kolbus perfect binder machine:
1. It cooperates with Japan Cihua Company and develops the XH50/3D/4D Elliptic perfect binding machine, which is as advanced as the world same kind machine .Partial parameters surpass the world level.
2. With the machine speed regulation by frequency transformer, PLC program control and PID temp erature control, photoelectric identification control and automatic test and control many advanced technologies are adopted. At the same time, many foreign electric elements and pneumatic elements are adopted in order that the machine has higher stability. Because the machine also has the breaker of mucus equipment, driving wastepaper adsorption apparatus and automatic out-book equipment, it is more perfect.
3. The machine can be used to gluing binding with thread and gluing binding without thread. It is the best equipment for
binding of books in printers and binderies
Description of kolbus perfect binder machine:
1. It cooperates with Japan Cihua Company and develops the XH50/3D/4D Elliptic perfect binding machine, which is as advanced as the world same kind machine .Partial parameters surpass the world level.
2. With the machine speed regulation by frequency transformer, PLC program control and PID temp erature control, photoelectric identification control and automatic test and control many advanced technologies are adopted. At the same time, many foreign electric elements and pneumatic elements are adopted in order that the machine has higher stability. Because the machine also has the breaker of mucus equipment, driving wastepaper adsorption apparatus and automatic out-book equipment, it is more perfect.
3. The machine can be used to gluing binding with thread and gluing binding without thread. It is the best equipment for
binding of books in printers and binderies
