Quick Details
-
Warranty:
-
12 Years For Material And Processing
-
Brand Name:
-
Lovsun
-
Model Number:
-
LTB182MM-410-430B
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 * 1134 * 30 mm
-
Product name:
-

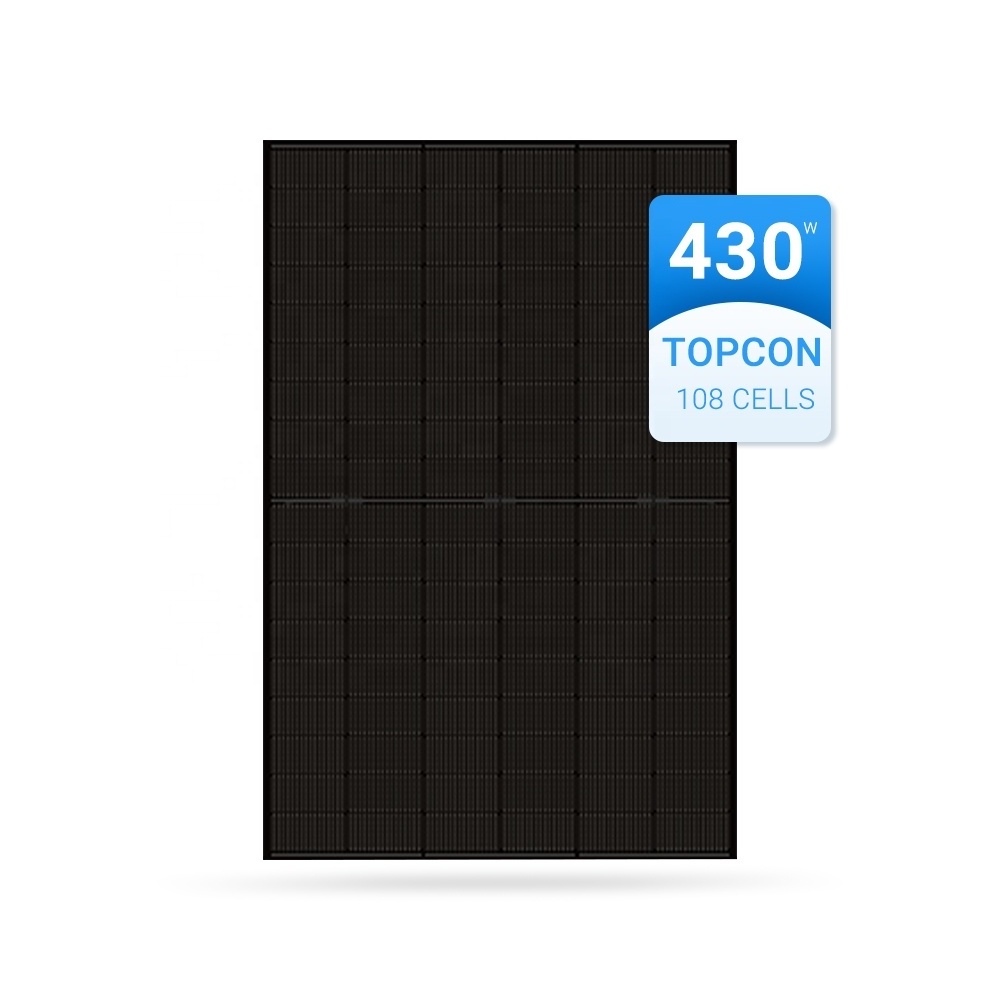

Mono TOPCON 108 Half Cells 410W 420W 430W Solar Panel
-
Junction Box:
-
IP68,3 diodes
-
Frame:
-
Anodized Aluminium Alloy
-
weight:
-
22.0kg
-
Front Glass:
-
2.0mm Coated Tempered Glass
-
Solar cell:
-
108(54*2)
-
Application:
-
Solar Power System
-
Packing:
-
36pcs per pallet
-
OEM Order:
-
Acceptable OEM
-
Certificate:
-
TUV/CE/ISO/CQC/PICC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Bifacial, All Black, TOPCON
-
Panel Efficiency:
-
21%-22.02%
-
Warranty:
-
12 Years For Material And Processing
-
Brand Name:
-
Lovsun
-
Model Number:
-
LTB182MM-410-430B
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 * 1134 * 30 mm
-
Product name:
-
Mono TOPCON 108 Half Cells 410W 420W 430W Solar Panel
-
Junction Box:
-
IP68,3 diodes
-
Frame:
-
Anodized Aluminium Alloy
-
weight:
-
22.0kg
-
Front Glass:
-
2.0mm Coated Tempered Glass
-
Solar cell:
-
108(54*2)
-
Application:
-
Solar Power System
-
Packing:
-
36pcs per pallet
-
OEM Order:
-
Acceptable OEM
-
Certificate:
-
TUV/CE/ISO/CQC/PICC
Product Description
ELECTRICAL DATA(STC)
|
Maximum Power (Pmax/W)
|
410
|
415
|
420
|
425
|
430
|
||||
|
Maximum Power Volage (Voc/V)
|
31.3
|
31.32
|
31.33
|
31.7
|
31.88
|
||||
|
Maximum Power Current (Imp/A)
|
13.17
|
13.25
|
13.33
|
13.41
|
13.49
|
||||
|
Open Circuit Voltage （Voc/V)
|
37.73
|
37.92
|
38.11
|
38.30
|
38.49
|
||||
|
Short Circuit Current (Isc/A)
|
13.91
|
13.99
|
14.07
|
14.15
|
14.23
|
||||
|
Module Efficiency (%)
|
21
|
21.25
|
21.51
|
21.76
|
22.02
|
||||
|
Power Output Tolerance (w)
|
0~+5
|
|
|
|
|
||||
MECHANICAL DATA
|
Number of Cells
|
108 Cells [6×18]
|
|
Dimensions of Module L*W*H[mm]
|
1722×1134x30mm
|
|
Weight [kg]
|
22.0 kg
|
|
Modules per box
|
36 pieces
|
|
Modules per 40’ container
|
936 pieces
|
|
12 year Product Workmanship Warranty
|
30 year Linear Power Warranty
|
Details Images
Mono Half Cut Cell
*Grade A PID resistance solar cell
*Optimized by BOM selection
*Laser accurately cut 9BB 10BB 12BB
EVA Sealed Film
*Top brand EVA sealed film in China
*
Resistance in outdoor use
*Sealed durability more than 30 years
Aluminum frame
*Heavy thickness anodized Alu.Alloy.
* Salt spay test passed
*With standard installation holes
Junction Box
*Waterproof grade IP68
*Heat dissipation performance
* low loss, long service life.
Compatible MC4 Connectors
*Universal MC4 PV connector,
* TUV Certificate.
* IP 68
Label
Wet and dry resistance silver label.
OEM brand accepted.
Produce Line&Packing
Monitoring&Controlling System
Certificate
Pack&shipping
