Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M15
-
Product name:
-

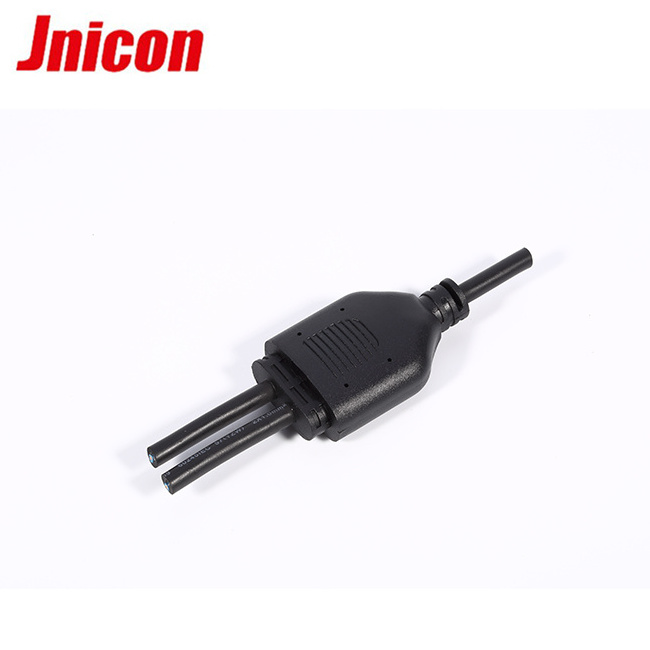

M15 waterproof Y connector splitter
-
Material:
-
Plastic/PVC
-
Function:
-
Power connection
-
Connector type:
-
female+male
-
Pin:
-
2 pin/3 pin/4 pin/5 pin
-
Connector number:
-
1 to 2 , 1 to 3, 1 to 4 etc
-
Waterproof level:
-
IP68
-
Rated current:
-
10A max
-
Certificate:
-
ISO9001/CE/ROHS/REACH/MSDS/SGS
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
LED lighting, street light, ebike, electric bicycle
-
Gender:
-
male+female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M15
-
Product name:
-
M15 waterproof Y connector splitter
-
Material:
-
Plastic/PVC
-
Function:
-
Power connection
-
Connector type:
-
female+male
-
Pin:
-
2 pin/3 pin/4 pin/5 pin
-
Connector number:
-
1 to 2 , 1 to 3, 1 to 4 etc
-
Waterproof level:
-
IP68
-
Rated current:
-
10A max
-
Certificate:
-
ISO9001/CE/ROHS/REACH/MSDS/SGS
Factory price A quality waterproof connector y cable splitter
M15 splitter cable connector
M15 plastic cable connector
Specification
|
Number of contacts |
2 |
3 |
4 |
5(2+3) |
|
Rated current/voltage |
10A 300V |
10A+5A 125V |
10A+5A 60V |
|
|
Contact diameter x number |
Φ1.5 |
2×Φ1.0 2×Φ1.5 |
Φ1.0 Φ1.5 |
|
|
Withstanding voltage |
1500V |
500V |
||
|
Protection level |
IP68 |
|||
|
Cable specification |
0.5mm²~1.5mm ²(20AWG~16AWG) |
|||
|
Diameter range |
MAXΦ9.0MM |
|||
|
Operating temperature |
-40℃~105℃ |
|||
|
Connecting mode |
Screw type |
|||
Material
|
Housing insulating parts |
High performance engineering plastic |
|
Copper needles |
Copper alloy |
|
Flammability |
UL94-V0 |
