Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Color:
-
Red Yellow Green Blue White
-
Material:
-
Nickel Plated Brass
-
Operation type:
-
Momentary
-
Application:
-
General-Purpose
-
Head shape:
-
Flat Round
-
Function:
-
OFF-ON
-
Mounting hole diameter:
-
10/12/16/19/22/25/28/30/40mm
-
Terminal type:
-
Pin Teminal
-
Feature:
-
Water-proof
-
Product name:
-
push button micro switch
-
Certification:
-
CCC
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Color:
-
Red Yellow Green Blue White
-
Material:
-
Nickel Plated Brass
-
Operation type:
-
Momentary
-
Application:
-
General-Purpose
-
Head shape:
-
Flat Round
-
Function:
-
OFF-ON
-
Mounting hole diameter:
-
10/12/16/19/22/25/28/30/40mm
-
Terminal type:
-
Pin Teminal
-
Feature:
-
Water-proof
-
Product name:
-
push button micro switch
-
Certification:
-
CCC

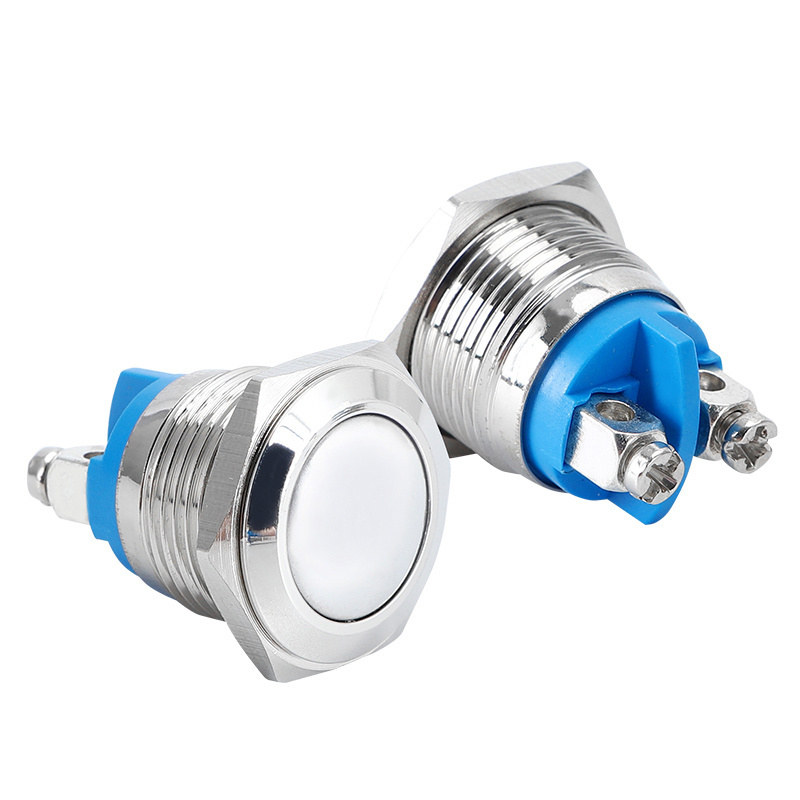

12 Volt 3 Pin Mini Momentary Led Illuminated Lights On Off Waterproof Metal Push Button Switch
Latching Momentary Push Button Switch:
Latching switch: Push it,ON; Push it again,OFF
Easy to install - Round latching switch with screw clamp type terminals to make fitting very easy, 2 pins
Material: High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
Wide Application ,can be used in wet or dusty environment.
Feature :Stable Current;Long life;Flame-resistant Fire;Waterproof,explosionproof;Anti-Vandal non-corrosive;Large contact surface
The following information is very important
1. Head shape: Flat Head/High Head
2.Operation type
3.LED Voltage
4. Please confirm your LED Color
5.Connection type: Solder Terminal or Screw Terminal
6. Switch Combination:10-1NO/NC 11-1NO1NC 22:2NO2NC
7. LED illumination types
8.Shell material
9. With hardness or without
Product characteristics
Wide Application ,can be used in wet or dusty environment.
Feature :Stable Current;Long life;
| Protection Level | IP67, IK10 |
| Ambient temperature | -20℃~+55℃ |
| Electrical life | ≥50,000 times |
| Mechanical life | ≥500,000 times |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥1000mΩ |
| Dielectric strength | 1500VAC |
| Nut torque | 5~14Nm |
|
Nut
|
Brass Plated Nickel |
| Base/Bottom/Insert | High Flame Retardant PA66 |
| Switch Rating | 3A/250VAC |
| Panel thickness | ≤10mm |
| Accessories | O-ring,Nut |
| Customized requirement | Acceptable |
