Quick Details
-
Rated Lifting Moment:
-
2.5~200KN
-
Max. Lifting Height:
-
35 m
-
Span:
-
0-35m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NUCLEON
-
Weight (KG):
-
80000 kg
-
Design rule:
-
Rules for Appliances of Ship and Offshore Installation
-
Heeling angle:
-
5° / 2°
-
Ambient temperature:
-
-20 ~ +45℃
-
Slewing mechanism speed:
-
0.6 r/min (360°)
-
Atmospheric pressure:
-
Standard atmospheric pressure
-
Standard power supply:
-
3-phase A.C.60Hz 440V
-
Working Class:
-
A5
-
Customer design:
-
Yes! We can!
-
Brand:
-
Nucleon
-
Product name:
-
Nucleon Port used marine ship Jib crane hydraulic deck unloader
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
Dock
-
Rated Loading Capacity:
-
1-50tons
-
Rated Lifting Moment:
-
2.5~200KN
-
Max. Lifting Height:
-
35 m
-
Span:
-
0-35m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NUCLEON
-
Weight (KG):
-
80000 kg
-
Design rule:
-
Rules for Appliances of Ship and Offshore Installation
-
Heeling angle:
-
5° / 2°
-
Ambient temperature:
-
-20 ~ +45℃
-
Slewing mechanism speed:
-
0.6 r/min (360°)
-
Atmospheric pressure:
-
Standard atmospheric pressure
-
Standard power supply:
-
3-phase A.C.60Hz 440V
-
Working Class:
-
A5
-
Customer design:
-
Yes! We can!
-
Brand:
-
Nucleon
-
Product name:
-
Nucleon Port used marine ship Jib crane hydraulic deck unloader

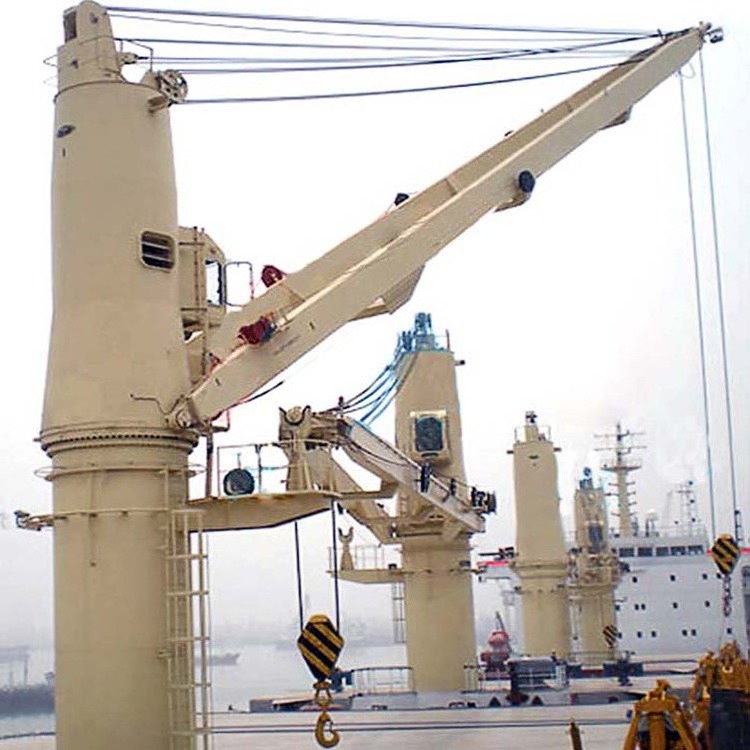

Marine Ship Deck Jib Crane
Description
Knuckle boom crane is a kind of special purpose crane to carry out transportation operations in the maritime environment. They are mainly used for the transportation of goods between ships, the supply of sea, the delivery and recycling of object during underwater operations.
Dute to special applicable condition and harsh operation environment, the knuckle boom crane is required to feature reliable performance, accute control, high security and durable structure.
Weihua deck crane is designed for such condition and can be customized as per our clients' variable working requirements.
Contact us for more information !
Features
1. International advanced design
2. Compact and reasonable structure
3. Light deadweight
4. Easy operation
5. Superior configuration
6. Low noise
7. Energy saving
Click to communicate more details !
Contact me for more parameters and quotation !
|
Type |
Safety working load (N) |
Max working Red (m) |
Min working Red (m) |
Hoisting Speed (m/min) |
Slewing Speed (r/min) |
Luffing Time (s) |
Hoisting Height (m) |
Slewing Angle |
Trim/ Heel |
Power (kW) |
|
SQ1 |
10 |
6~12 |
1.3~2.6 |
15 |
1 |
60 |
30 |
360 |
2/5 |
7.5 |
|
SQ1.5 |
15 |
8~14 |
1.7~3 |
15 |
1 |
60 |
30 |
360 |
2/5 |
11 |
|
SQ2 |
20 |
5~15 |
1.1~3.2 |
15 |
1 |
60 |
30 |
360 |
2/5 |
15 |
|
SQ3 |
30 |
8~18 |
1.7~3.8 |
15 |
0.9 |
70 |
30 |
360 |
2/5 |
22 |
|
SQ5 |
50 |
12~20 |
2.5~4.2 |
15 |
0.75 |
80 |
30 |
360 |
2/5 |
37 |
|
SQ8 |
80 |
12~20 |
2.5~4.2 |
15 |
0.75 |
100 |
30 |
360 |
2/5 |
55 |
|
SQ10 |
100 |
12~20 |
2.5~4.2 |
15 |
0.75 |
110 |
30 |
360 |
2/5 |
75 |
|
SQ15 |
150 |
12~20 |
2.5~4.2 |
15 |
0.6 |
110 |
30 |
360 |
2/5 |
90 |
|
SQ20 |
200 |
16~25 |
3.2~5.3 |
15 |
0.6 |
120 |
35 |
270 |
2/5 |
75*2 |
|
SQ25 |
250 |
20~30 |
3.2~6.3 |
15 |
0.5 |
130 |
40 |
270 |
2/5 |
90*2 |
|
SQ30 |
300 |
30 |
3.2~6.3 |
15 |
0.4 |
140 |
40 |
270 |
2/5 |
90*2 |
|
SQ35 |
350 |
20~35 |
4.2~7.4 |
15 |
0.5 |
150 |
45 |
360 |
2/5 |
110*2 |
|
SQ40 |
400 |
20~35 |
4.2~7.4 |
15 |
0.5 |
150 |
45 |
360 |
2/5 |
140*2 |
|
SQ45 |
450 |
25~40 |
5.3~8.5 |
15 |
0.45 |
160 |
50 |
360 |
2/5 |
140*2 |
|
SQ50 |
500 |
25~40 |
5.3~8.5 |
15 |
0.45 |
170 |
50 |
360 |
2/5 |
165*2 |
Related Show
What's your phone number and email address?We'll give you our best offer!
NUCLEON meets the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements. Achieves great achievements especially in European Style Light Weight Cranes and KBK Flexible Beam Crane System .
Nucleon (Xinxiang) Crane co., ltd. , founded in 2005 , the registered capital of 270,000,000 CNY , covers an area of 450000 square meters, staff 1700 people. Achieves ISO production system certification and europe standards like DIN & FEM. Nucleon is a bridge, gantry crane, coal series hoisting equipment, small light lifting equipment and other products of research and development, manufacture, installation, sales and service as one of the Sino-foreign joint ventures. The ND, NH model wire rope electric hoist, NL type chain electric hoist, mine explosion-proof hoist, HD type electric single-girder, NLH type electric hoist bridge crane in the domestic leading level, the electric hoist production for many years ranking second in the country.
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.
Company main products has been widely used in metallurgy, electric power, petrochemical, military industry, coal, aerospace, construction, railway and other national economic pillar industries. Products are exported to Europe, Africa, Southeast Asia, more than countries and regions. Customers are satisfied with the products quality and service. They comment NUCLEON?a supplier worthy of cooperation!
