- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
STAGE R18S
-
Dimension:
-
W595mm x D700mm x H520mm
-
Storage:
-
---
-
SNR:
-
---
-
Output Power:
-
800W
-
Format:
-
---
-
Max power:
-
1600W
-
Peak power:
-
3200W
-
Weight(each):
-
41.45kg
-
Shipping Weight:
-
45.75kg
-
Packing size:
-
770*665*595mm
-
Frequency Range (Hz):
-
45Hz-300Hz
-
Dimension (L x W x H):
-
W595mm x D700mmx H520mm
-
Power:
-
800W
-
Product Name:
-
Professional Speaker
-
Keyword:
-
Super Woofer Speaker
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
STAGE R18S
-
Dimension:
-
W595mm x D700mm x H520mm
-
Storage:
-
---
-
SNR:
-
---
-
Output Power:
-
800W
-
Format:
-
---
-
Max power:
-
1600W
-
Peak power:
-
3200W
-
Weight(each):
-
41.45kg
-
Shipping Weight:
-
45.75kg
-
Packing size:
-
770*665*595mm
-
Frequency Range (Hz):
-
45Hz-300Hz
-
Dimension (L x W x H):
-
W595mm x D700mmx H520mm
-
Power:
-
800W
-
Product Name:
-
Professional Speaker
-
Keyword:
-
Super Woofer Speaker

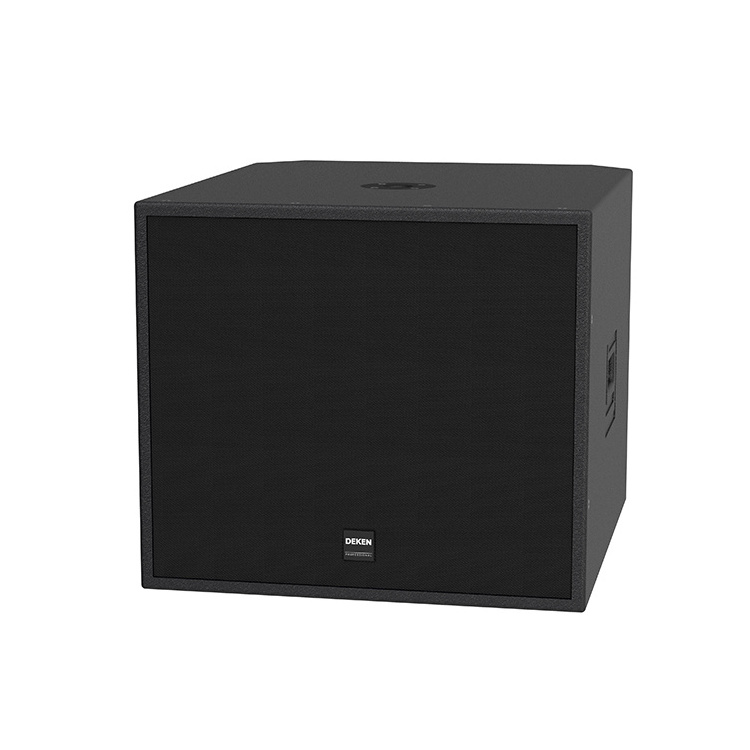

DEKEN STAGE R18S Single 18" Passive Subwoofer Pa Speaker Professional Bass 18 Inch Audio Subwoofer for Sound Reinforcement
Product Description
Specification
|
System type
|
1 unit inverting subwoofer
|
|
Rated power
|
800W
|
|
Max power
|
1600W
|
|
Peak power
|
3200W
|
|
Nominal impedance
|
8 Ω
|
|
Recommended power amplifier output rating
|
1000W—1400W@8 Ω
|
|
Nominal sensitivity（1W@1m）
|
101dB（1W@1m）
|
|
Max SPL（Pmax@1m）
|
130dB@800w (133dB@1600w)
|
|
Frequency response（-10dB）
|
360°H×360°V
|
|
Nominal coverage pattern（-6dB）
|
45Hz—300Hz
|
|
Speaker component
|
Ferrite driver 18″（460mm diameter 10mm voice coil 220 magnetic）×1
|
|
Crossover modes
|
---
|
|
Connector
|

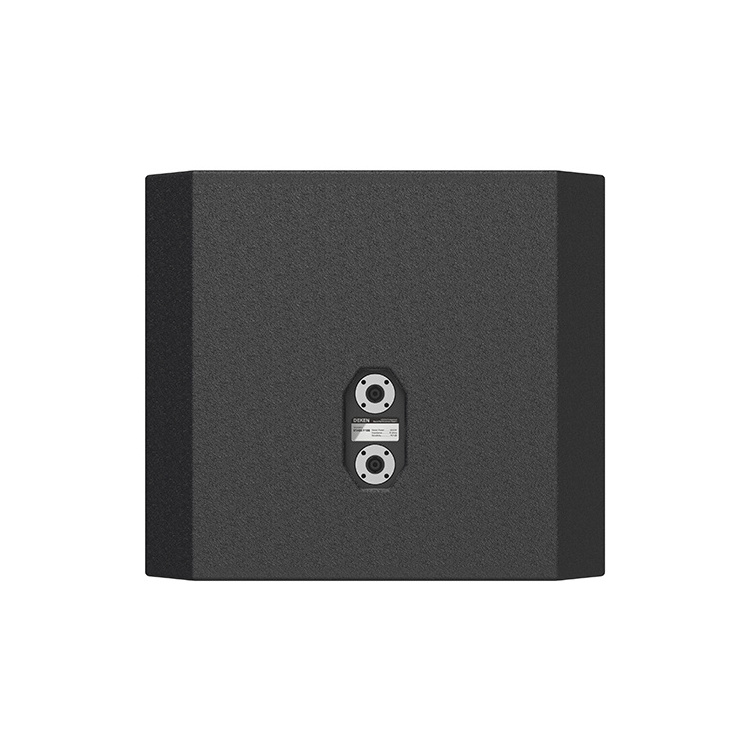

Speakon NL4×2（PIN1+/POS. PIN1-/NEG.）
|
|
Enclosure
|
18mm（0.7″）plywood
|
|
Color
|
Default is black, other colors can be customized
|
|
Dimensions
|
Default is black, other colors can be customized
|
|
Weight(each)
|
41.45kg
|
|
Shipping weight
|
45.75kg
|
|
Reference applications:
|
Ultra-low frequency compensation for sound reinforcement system
|
