- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DARDONTECH
-
Year:
-
2022
-
Dimension(L*W*H):
-
3100x5800x2600mm
-
Weight (KG):
-
22500
-
Control System:
-
SYNTEC
-
Application:
-
Steel Sheet Plate
-
Bending width:
-
1500mm
-
Min. Workpiece Size:
-
130*200mm
-
single side bending:
-
130mm
-
Servo Motor:
-
SYNTEC
-
Electric Component:
-
Schneider
-
Model:
-
PBE-2500
-
Folding Materials:
-
Q235 Carbon Steel
-
Folding Thickness:
-
0.35-2.0MM
Quick Details
-
Bending Thickness(mm):
-
0.35 - 2 mm
-
Bending Length(mm):
-
2500 mm
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
China
-
Brand Name:
-
DARDONTECH
-
Year:
-
2022
-
Dimension(L*W*H):
-
3100x5800x2600mm
-
Weight (KG):
-
22500
-
Control System:
-
SYNTEC
-
Application:
-
Steel Sheet Plate
-
Bending width:
-
1500mm
-
Min. Workpiece Size:
-
130*200mm
-
single side bending:
-
130mm
-
Servo Motor:
-
SYNTEC
-
Electric Component:
-
Schneider
-
Model:
-
PBE-2500
-
Folding Materials:
-
Q235 Carbon Steel
-
Folding Thickness:
-
0.35-2.0MM
Product Overview

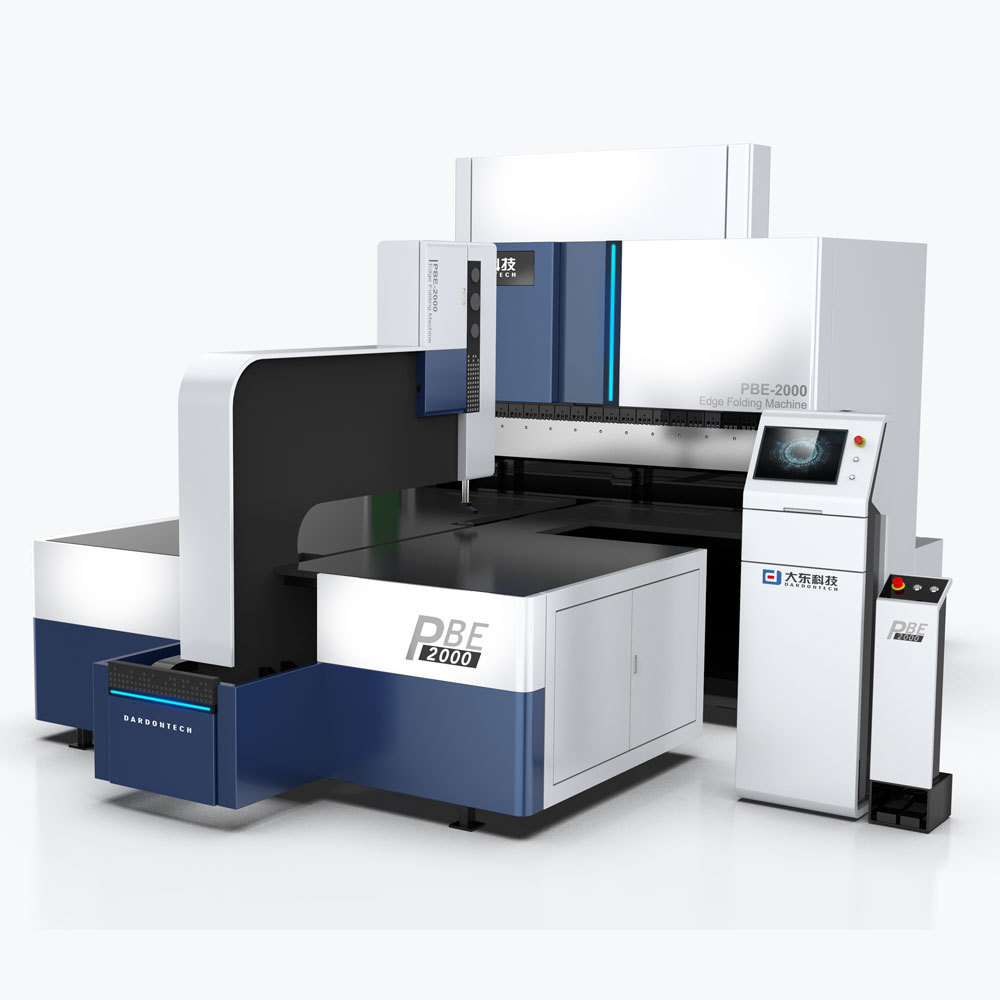

CNC PANEL BENDER
The multilateral bending center does not need to change the mold, the working stroke is short, and the feed is fast.
Comprehensive efficiency is 3 to 4 times that of manual bending machine.
According to the bending process, it can be automatically folded up and down, so as to realize the bending of arcs, dead edges, and various angles.
Highly intelligent operation control system, which can efficiently bend different workpieces.
Energy saving and consumption reduction, reducing labor and mold costs.
Comprehensive efficiency is 3 to 4 times that of manual bending machine.
According to the bending process, it can be automatically folded up and down, so as to realize the bending of arcs, dead edges, and various angles.
Highly intelligent operation control system, which can efficiently bend different workpieces.
Energy saving and consumption reduction, reducing labor and mold costs.
FEATURES AT A GLANCE

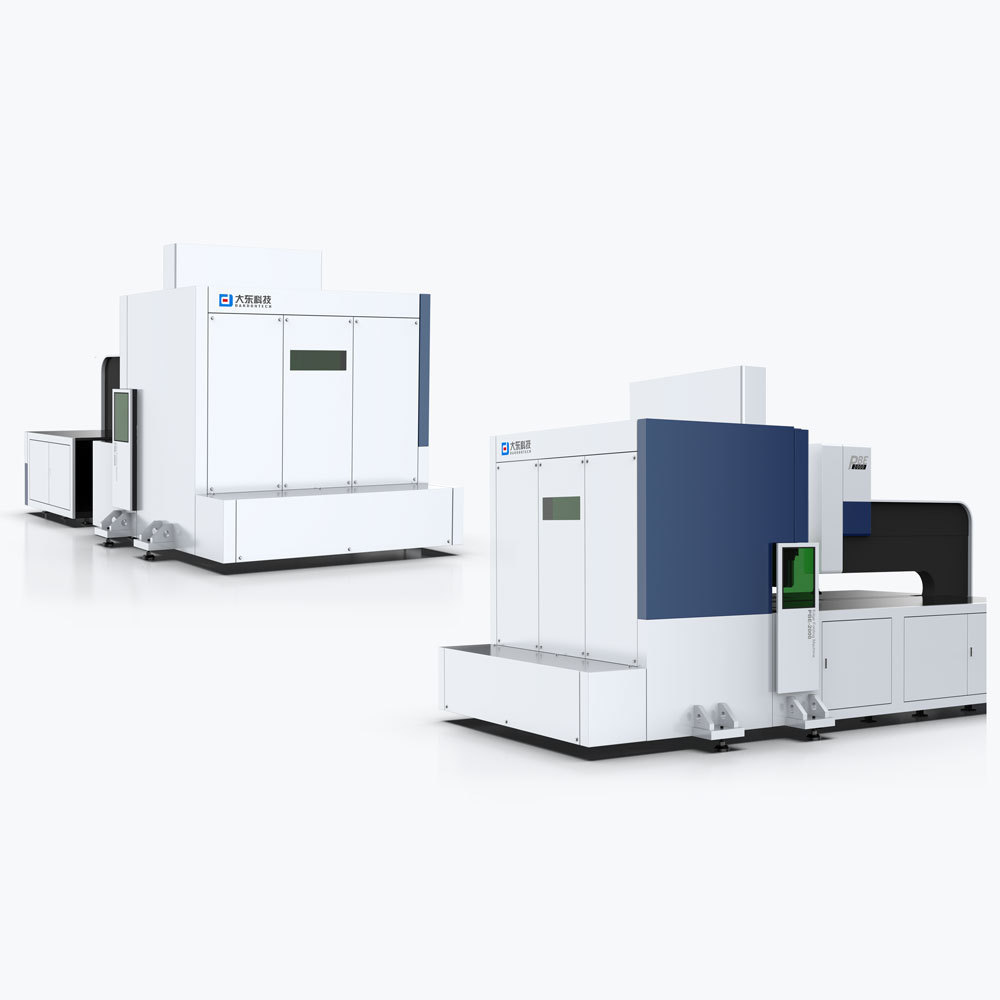

Right elevation
Front elevation
Left elevation
PRODUCT SPECIFICATIONS
|
Name
|
|
Unit
|
Value
|
|
|
Max. Bending Length
|
|
mm
|
2500
|
|
|
Max. Sheet Width
|
|
mm
|
1500
|
|
|
Max. Bending Height
|
|
mm
|
170
|
|
|
Min. Workpiece Size (four sides bending)
|
|
mm
|
130*200
|
|
|
Min. Workpiece Size (single side bending)
|
|
mm
|
130
|
|
|
Min. Radius
|
|
mm
|
1.2
|
|
|
Bending Angle
|
|
°
|
±180
|
|
|
Max. Bending Speed
|
|
s/bending
|
0.5
|
|
|
Min. Sheet Thickness
|
|
mm
|
0.35
|
|
|
Max. Sheet Thickness |
SS
|
mm
|
1.0
|
|
|
|
MS
|
mm
|
1.5
|
|
|
|
AL
|
mm
|
2.0
|
|
|
Dimensions（L×W×H）
|
|
mm
|
3100x5800x2600
|
|
|
Full Power
|
|
KW
|
55
|
|
|
Working Voltage
|
|
V
|
380V±10%
|
|
|
Machine Weight
|
|
KG
|
22500
|
|
PRODUCT CONFIGURATION
|
No
|
Item
|
Description
|
Brand
|
|
1
|
Controlling System
|
HC15E-S Touch Screen
|
SYNTEC
|
|
2
|
Servo Driver
|
BUS Control
|
SYNTEC
|
|
3
|
Servo Motor
|
H & F Series
|
SYNTEC
|
|
4
|
Motor Reducer
|
|
SIGRINER
|
|
5
|
Ball Screw
|
Heavy Load
|
YIGONG
|
|
6
|
Bearing
|
|
NACHI
|
|
7
|
Linear Guide
|
|
HIWIN/PMI
|
|
8
|
Coupling
|
|
MIKIPULLEY
|
|
9
|
Lubrication System
|
|
BAOTN
|
|
10
|
Electric Component
|
|
Schneider
|
|
11
|
Pneumatic Component
|
|
AirTAC/JULY
|
