Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.0KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Superstar
-
Voltage:
-
220V/380V 50/60HZ
-
Dimension(L*W*H):
-
2.3*32*1.85meter
-
Power (kW):
-
8
-
Weight (KG):
-
890
-
Product name:
-
CNC Wood Working Machine
-
control system:
-
DSP controller system
-
spindle power:
-
3kw water cooling spindle
-
working size:
-
1300*2500mm
-
machine table:
-
vacuum table
-
Inverter:
-
XFT 3.0W
-
transmission:
-
helical rack pinion
-
driving system:
-
stepper driver and motor
-
guiding system:
-
square guide rail
-
application:
-
mdf, wood engraving, aluminium cutting
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
80 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.0KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Superstar
-
Voltage:
-
220V/380V 50/60HZ
-
Dimension(L*W*H):
-
2.3*32*1.85meter
-
Power (kW):
-
8
-
Weight (KG):
-
890
-
Product name:
-
CNC Wood Working Machine
-
control system:
-
DSP controller system
-
spindle power:
-
3kw water cooling spindle
-
working size:
-
1300*2500mm
-
machine table:
-
vacuum table
-
Inverter:
-
XFT 3.0W
-
transmission:
-
helical rack pinion
-
driving system:
-
stepper driver and motor
-
guiding system:
-
square guide rail
-
application:
-
mdf, wood engraving, aluminium cutting

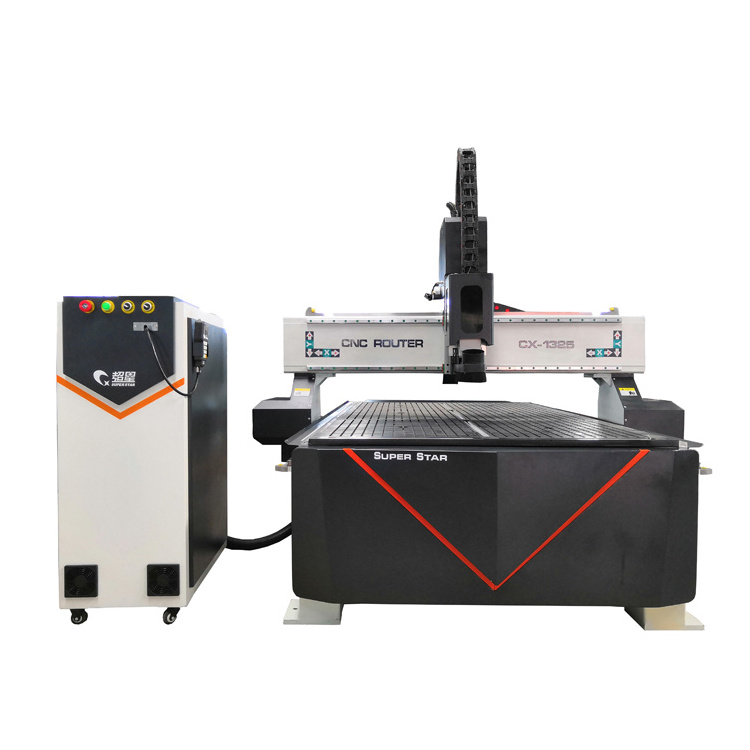

1325 CNC Wood router machine Feature：
|
Technical Paramaters:
|
|
|
|
|
||||
|
Description
|
Description
|
|
|
|
||||
|
X Y Z axis working area
|
1300mm*2500mm*200mm
|
|
|
|
||||
|
Machine table
|
Vacuum table
|
|
|
|
||||
|
Structure
|
Industrial class square tube strong structure
|
|
|
|
||||
|
Working area
|
1300mm*2500mm*200mm
|
|
|
|
||||
|
Spindle
|
3KW water cooling spindle
|
|
|
|
||||
|
control system
|
DSP A11s
|
|
|
|
||||
|
Motor and driver
|
Stepper motor
|
|
|
|
||||
|
Spindle Speed
|
0-24000r/min
|
|
|
|
||||
|
Transmission way
|
Helical gear reck for XY axis, ball screw for Z axis
|
|
|
|
||||
|
Voltage
|
220v/380v 50/60HZ
|
|
|
|
||||
Woodworking Machinery Application:
Advertising industry: acrylic cutting, MDF engraving cutting and engraving, wood decoration products making. Recommend model CX1325 cnc wood router.
wood door:
MDF and wood door engraving, recommend model: CXM25 cnc router 1325.
wood furniture:
cabinet door making with complicated design, recommend model:
Multi- heads pneumatic ATC router cnc, Linear auto tool changing cnc router, Carousel wood cnc router with 12 disc tools.
Panel furniture:
wood panel cabinet making, recommend model: automatic loading unloading penal processing cnc router with drilling/boring bits.
