Quick Details
-
Brand Name:
-
XIONG YE
-
Product name:
-
3d Panel Fence
-
Surface treatment:
-
Galvanized then PVC coated/sprayed
-
Color:
-
Dark green,black,yellow,red,white or as request
-
Common height:
-
1.0m, 1.2m,1.5m, 1.7m, 1.8m, 2m,2.5m
-
Common length:
-
2.0m, 2.5m
-
Function:
-
Protective Fence Panel
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XIONG YE
-
Product name:
-
3d Panel Fence
-
Surface treatment:
-
Galvanized then PVC coated/sprayed
-
Color:
-
Dark green,black,yellow,red,white or as request
-
Common height:
-
1.0m, 1.2m,1.5m, 1.7m, 1.8m, 2m,2.5m
-
Common length:
-
2.0m, 2.5m
-
Function:
-
Protective Fence Panel

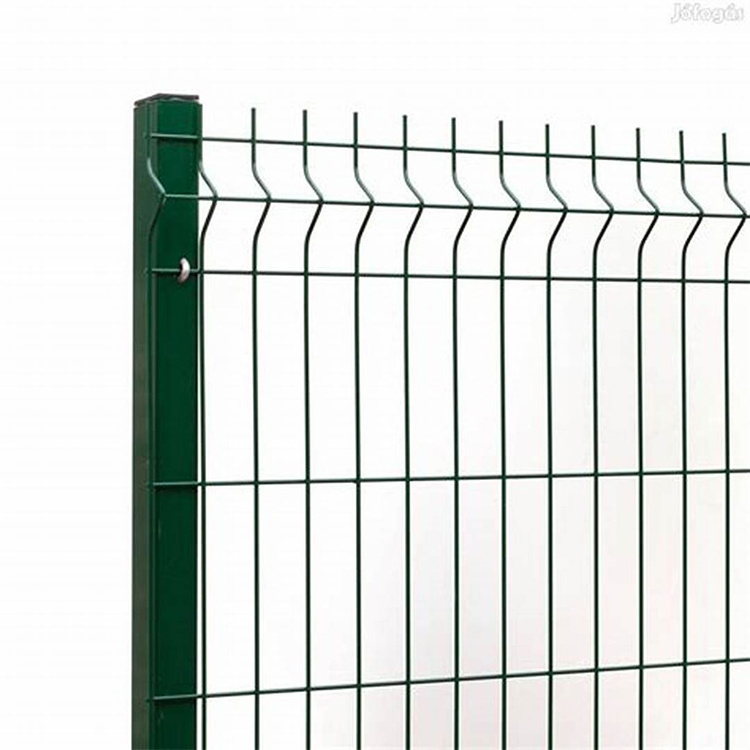

3d Panel Fence
3D Welded Mesh Fencing as an economical type of fence system, welded mesh fence is a kind of 3D fence with longitudinal folds, which makes the fence stronger. The fence panels is welded by high quality low carbon steel wire. It's common surface treatment are hot dipped galvanized or electric polyester powder spray coating over galvanized wire. The common post of the welded fence are SHS tube, RHS tube, peach post, Round post or special-shaped post. Fence panel will be fixed to the post by suitable clips according to different post type. Due to its simple structure, see-through panel, easy installation, nice appearance, the welded mesh fence are more and more popular.
Product Description
Uses: triangle defending mesh is mainly used in municipal greenfield, flowerbed, workplace greenfield road, airport, harbor green field etc. The products have beautiful shape, various colors, not only have the effect of defending, but also beautifying.
● Bending plays a strengthening role to make the fence panel stronger and not easy to be damaged.
● According to different heights and wire diameters, the number of bends is also different.
Specification
|
Fence panel
|
Panel Height
|
600mm-3000mm
|
|
|
|||
|
|
Panel Width
|
2000mm-3000mm
|
|
|
|||
|
|
Wire Diameter
|
3mm-6mm
|
|
|
|||
|
|
Hole opening
|
50x50mm, 50x100mm, 50x150mm, 50x200mm, 65x200mm
|
|
|
|||
|
|
Material
|
Low carbon steel wire, galvanized wire
|
|
|
|||
|
|
Surface treatment
|
Electric galvanized, hot dipped galvanized, powder coated and PVC coated
|
|
|
|||
|
|
Curve
|
Type and quantity on customer request
|
|
|
|||
|
Fence post
|
Square
|
40x60x2(mm), 40x60x1.5(mm), 60x60x2(mm), 60x80x2(mm), 80x80x2(mm)
|
|
|
|||
|
|
Peace
|
100x70x1.2(mm)
|
|
|
|||
|
|
Height
|
According to fence panel height (Normal 0.65m-4m)
|
|
|
|||
|
|
Finish
|
Hot dipped galvanizing, powder coated
|
|
|
|||
|
|
Accessories
|
Post cap, clamps, bolts and nuts
|
|
|
|||
|
Fence color
|
|
Any RAL series color(Normal RAL6005 Dark green, RAL9005 Black)
|
|
|
|||
Product accessories
Usage scenario
Details Images
Packing & Delivery
1. Fence Panel: plastic film + metal/wooden pallet
2. Fence Post: plastic bags + metal/wooden pallet
3. Fence Accessories(Clips & Screws): plastic bags + carton box
