Quick Details
-
Brand Name:
-
Mikrotik
-
Model Number:
-
CRS326-24S+2Q+RM, CRS326-24S+2Q+RM
-
Place of Origin:
-
China
-
CPU nominal frequency:
-
650 MHz
-
Size of RAM:
-
64 MB
-
SFP+ ports:
-
24
-
40G QSFP+ ports:
-
2
-
CPU:
-
QCA9531
-
Power consumption:
-
Max 69 W
-
Storage size:
-
16 MB
-
condition:
-
Original New
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100/1000/10000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
640 Gbps
-
Brand Name:
-
Mikrotik
-
Model Number:
-
CRS326-24S+2Q+RM, CRS326-24S+2Q+RM
-
Place of Origin:
-
China
-
CPU nominal frequency:
-
650 MHz
-
Size of RAM:
-
64 MB
-
SFP+ ports:
-
24
-
40G QSFP+ ports:
-
2
-
CPU:
-
QCA9531
-
Power consumption:
-
Max 69 W
-
Storage size:
-
16 MB
-
condition:
-
Original New
-
Warranty:
-
1 Year

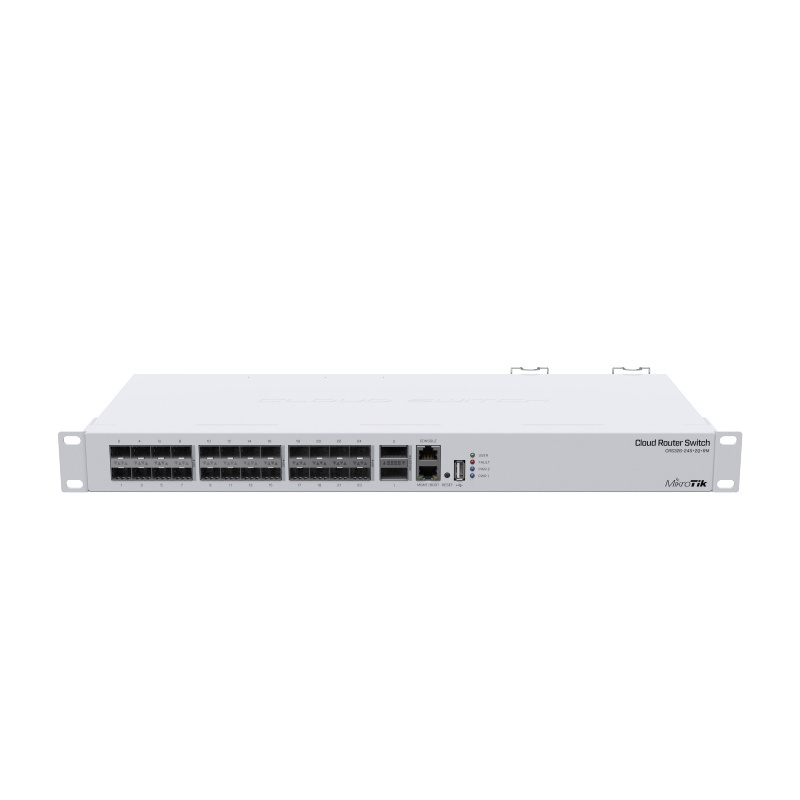

Mikrotik CRS326-24S+2Q+RM 24 port 10 Gigabit management switch ROS dual system
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Specifications
| Product model | CRS326-24S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 443 x 183 x 44 mm |
| License level | 5 |
| Operating System | RouterOS or SwitchOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 69 W |
| Max power consumption without attachments | 42 W |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 24 |
| Number of 40G QSFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
