Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-010-4L
-
Warranty:
-
12 Months
-
Product name:
-
Automatic Digital Tyre Inflator Built-in Printer
-
Product model:
-
E-010-4L
-
Suit For:
-
Motorcycle, Car, Light Truck, Bus
-
work temperature:
-
-20℃~70℃
-
Air Outlet:
-
4 Hoses
-
Maximum Inflator Set Pressure:
-
145Psi
-
Maximum Inlet Air Supply:
-
217Psi
-
Material:
-
Stainless Steel Cabinet
-
Input Voltage:
-
100-240Vac
-
Certification:
-
CE,IP66
Quick Details
-
Car Fitment:
-
Honda Van
-
Size:
-
280*275*175(mm)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-010-4L
-
Warranty:
-
12 Months
-
Product name:
-
Automatic Digital Tyre Inflator Built-in Printer
-
Product model:
-
E-010-4L
-
Suit For:
-
Motorcycle, Car, Light Truck, Bus
-
work temperature:
-
-20℃~70℃
-
Air Outlet:
-
4 Hoses
-
Maximum Inflator Set Pressure:
-
145Psi
-
Maximum Inlet Air Supply:
-
217Psi
-
Material:
-
Stainless Steel Cabinet
-
Input Voltage:
-
100-240Vac
-
Certification:
-
CE,IP66
Product Description
Welcome to G5. Please "
contact supplier"
or "send inquiry" before placing an order. Thank you!
Product Images
Specification

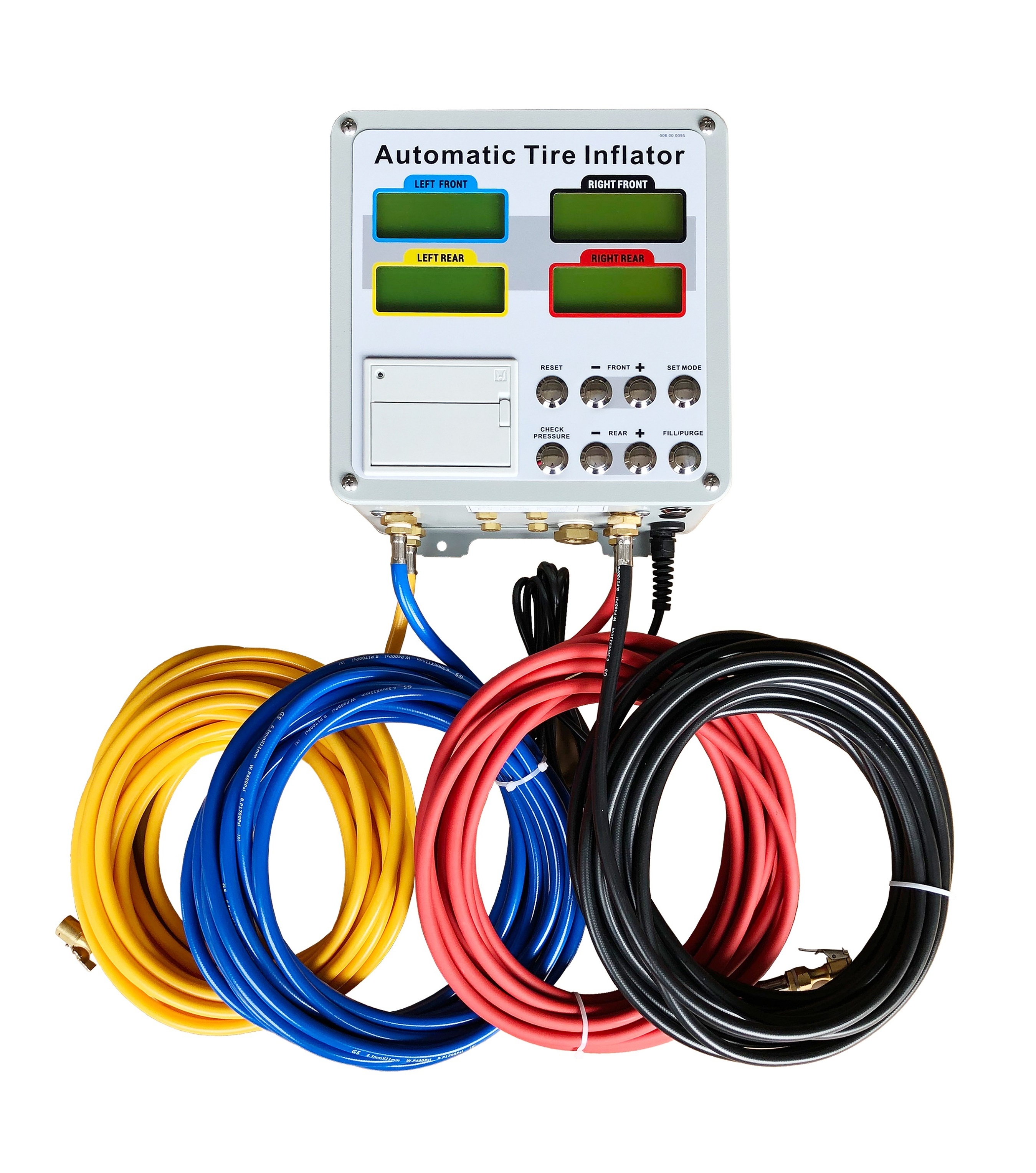

| E-010-4L-PR Automatic Digital Tyre Inflator Built-in Printer and Multi-head inflator for 4 Tyres Simultaneous Inflation (Indoor) |
| Main Feature |
| Print the "Before Inflate" and "After Inflate" pressure for each individual tyre respectively |
| Set and inflate different pressure for front and rear tyres simultaneously** |
| Individual tyre pressure readout from the four display screens |
| Converts up to 4 tyres to Nitrogen simultaneously at the touch of a button** |
| Fully automated, fully programmable, micro-processor controlled conversion system |
| Suit for: Car, Light Truck, Bus |
| Technical Data: |
| Power Requirement: 100-240Vac 50/60Hz |
| Power Consumption: 40VA |
| Operating Temperature Range: -20°C/-4°F to 70°C/158°F |
| Max Inlet Air/Nitrogen Supply: 217PSI /15bar /1500kPa |
| Operating Range: 5-145PSI/0.3-10bar/35-1000kPa |
| Accuracy: ±1PSI/0.1bar/5kPa |
| Resolution: 1PSI/0.1bar/5kPa |
| Units of Measurement: PSI/bar/kPa |
| Dimensions (Height*Width*Depth): 280mm*275mm*175mm/11"*10.8"*6.9" |
| Net Weight: 13kg/28.6lbs |
| Gross Weight: 14kg/30.8lbs |
| Packing Size (Height*Width*Depth): 230mm*320mm*610mm / 9"*12.6"*24" |
| Specification |
| 1. Auto-start inflation |
| 2. Automatic zero drift adjustment |
| 3. Remain at last setting |
| 4.Self-diagnostic features |
| 5. Comprehensive diagnostics and error reporting |
| 6. Audible and visual end of the cycle signal indicators |
| 7. Large backlight LCD display |
| 8. Vandal resistant mechanical switches |
| 9. 4 Nos.*10M/32.8ft standard hose with single clip-on open type chuck |
| 10. Nitrogen purge and fill cycle (N2P) |
| 11. Adjustable over pressure setting (OPS) |
| 12. Adjustable number of cycles |
| 13. Adjustable lower purge pressure limit |
| 14. 4 air outlets allow simultaneous inflation of up to 4 tyres |
About US
|
EST is the professional manufacturer of G5 brand tyre inflation equipments for 20+ years.
EST is a technology leader in the design and manufacture of tyre inflation equipments. EST is the 1st PSA nitrogen tyre Inflation system manufacturer in the world. Our main products including: automatic tyre inflators, automatic nitrogen tyre inflation systems, tyre inflation and vacuum integrated machines, tyre inflation tools, etc. Our products are widely used in gas stations, communities, fleets, tyre shops, automobile repair plants and so on, and some of them are used in the electronics and food industries too. There are more than 100,000 clients in over 80 countries using our products in the world. Our products are manufactured to ISO 9001: 2015 quality standards accredited by SGS. |
Our Advantages
Our Certification
Our Exhibition
F A Q
| 1. Are you a manufacturer or a trading company? What's your main products? | We are a 20 + years Tyre Inflation Equipment Source Factory with own brand of G5. Automatic Tyre Inflators,Nitrogen Tyre Inflators,Handheld Tyre Inflators,Air & Vacuums are our main products, all ISO9001 and CE certified. |
| 2. Do you accept OEM or custom design order? | Yes, we do. Both are warmly welcomed. With our strong R & D teams, we have provide this service to many customers around the world. If you can’t find the products you want to buy from our website, please start online TM or inquiry or telephone calls, we can design and produce the products based on your required specifications. |
| 3. What’s your warranty terms? | We provide one year warranty. If any problem happened, we will offer fast technical assistance and send necessary parts to you to fix everything. |
| 4.What payment terms are you accept? | We accept T/ T, L/ C, you can contact us for more details. |
| 5.Where is your factory and loading port located? | Our factory and loading port both in Zhuhai city, Guangdong province, China. You are welcomed to visit our factory any time. |
| 6.How you protect customer privacy? | Customer privacy is important to us. we will not disclose your information to any third party without permission, necessary agreement can be issued if needed. |
