Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIN, NIN
-
Model Number:
-
XB5-AK3465, XB5-AK3465
-
Certification:
-
ccc
Quick Details
-
Protection Level:
-
IP40, IP65 is available on request
-
Max. Current:
-
10A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIN, NIN
-
Model Number:
-
XB5-AK3465, XB5-AK3465
-
Certification:
-
ccc
Switch Rating:
|
Ui Nominal Insulation Voltage(Ui)
|
|
|
440V
|
|
|
|
|
|
|||||||
|
Thermal Current(Ith)
|
|
|
10A Temperature no more than rated current
|
|
|
|
|
|
|||||||
|
Rated Voltage(V)
|
|
|
24V
|
48V
|
110V
|
220V
|
380V
|
500V
|
|||||||
|
Working Current
|
AC
50/60Hz |
AC-12
|
10A
|
10A
|
10A
|
6A
|
6A
|
6A
|
|||||||
|
|
|
AC-15
|
10A
|
10A
|
6A
|
3A
|
1.8A
|
1.4A
|
|||||||
|
|
DC
|
DC-12
|
8A
|
4A
|
2.2A
|
1.1A
|
1.1A
|
1.1A
|
|||||||
|
|
|
DC-13
|
4A
|
2A
|
1.1A
|
0.6A
|
0.6A
|
0.6A
|
|||||||
|
Contact Material
|
|
|
Silver Alloy
|
|
|
|
|
|
|||||||
Lamp Specifications:
|
Power Type
|
AC/DC LED Light-emitting diodes
|
|
|
||
|
Rated Voltage
|
AC/DC 6V
|
AC/DC 12V
|
AC/DC 24V
|
||
|
|
AC 110V
|
AC 220V
|
AC 380V
|
||
|
Lamp Life
|
40,000 Hours
|
|
|
||
|
Lamp Color
|
R/G/Y/W/B/b
|
|
|
||

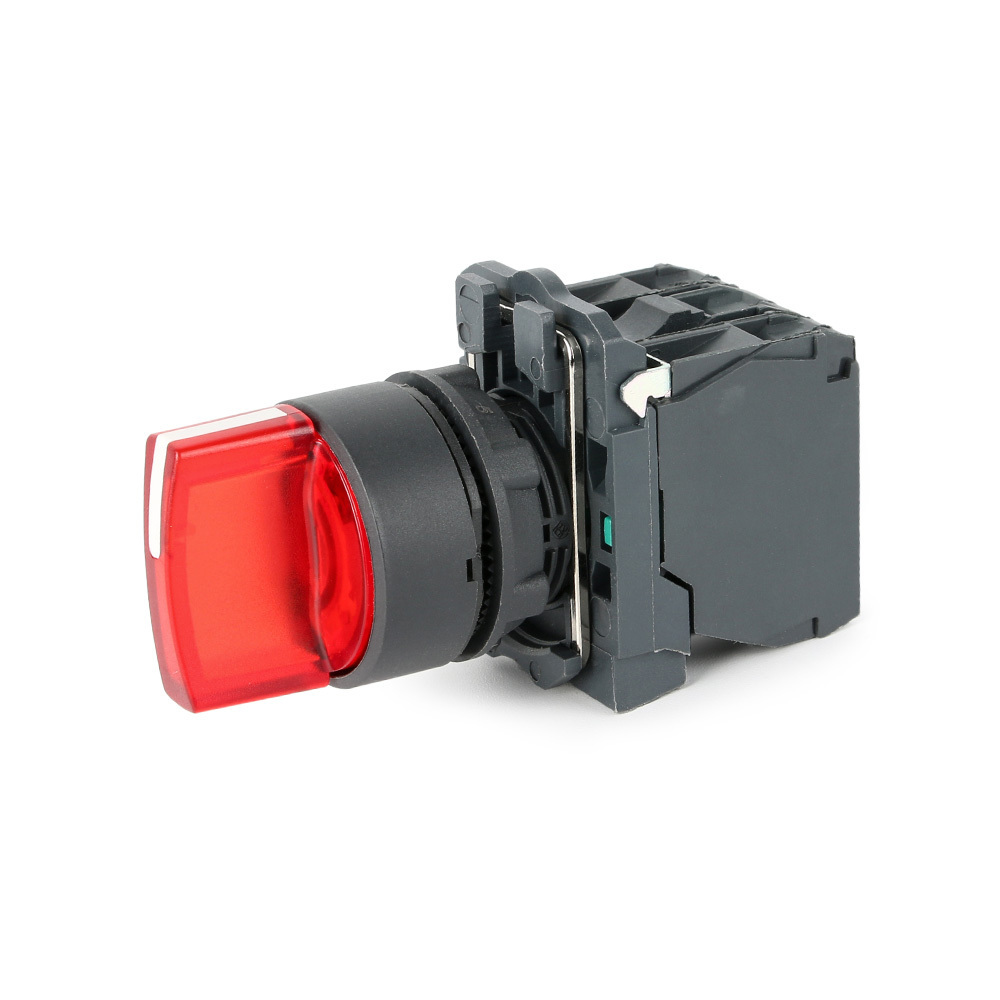

XB5 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage,
used for the control of magnetic starter, contactor, relay and other electric circuit.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight
switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely
and installed firmly. Economical plastic type can be used in acid environment. Protective Degree The standard is IP40 and some
types can reach IP67 with the seal cover.
used for the control of magnetic starter, contactor, relay and other electric circuit.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight
switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely
and installed firmly. Economical plastic type can be used in acid environment. Protective Degree The standard is IP40 and some
types can reach IP67 with the seal cover.
Technical Specification:
1. Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃
2. Operating humidity:45~85%rh; 45~85%rh(no condensation)
3. Contact resistance: ≤30mΩ
4. Insulation resistance: ≥100M
5. The highest Dielectric streagth:3000VAc50hz
6. Vibration resistance: 50hz,Amplitude1.0mm
7. Shock resistance: >10g
8. Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9. Life---Electrical: >500000tmes
10. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
12. Pollution Degree: 3 degree
1. Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃
2. Operating humidity:45~85%rh; 45~85%rh(no condensation)
3. Contact resistance: ≤30mΩ
4. Insulation resistance: ≥100M
5. The highest Dielectric streagth:3000VAc50hz
6. Vibration resistance: 50hz,Amplitude1.0mm
7. Shock resistance: >10g
8. Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9. Life---Electrical: >500000tmes
10. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
12. Pollution Degree: 3 degree
